M/T Technical Data

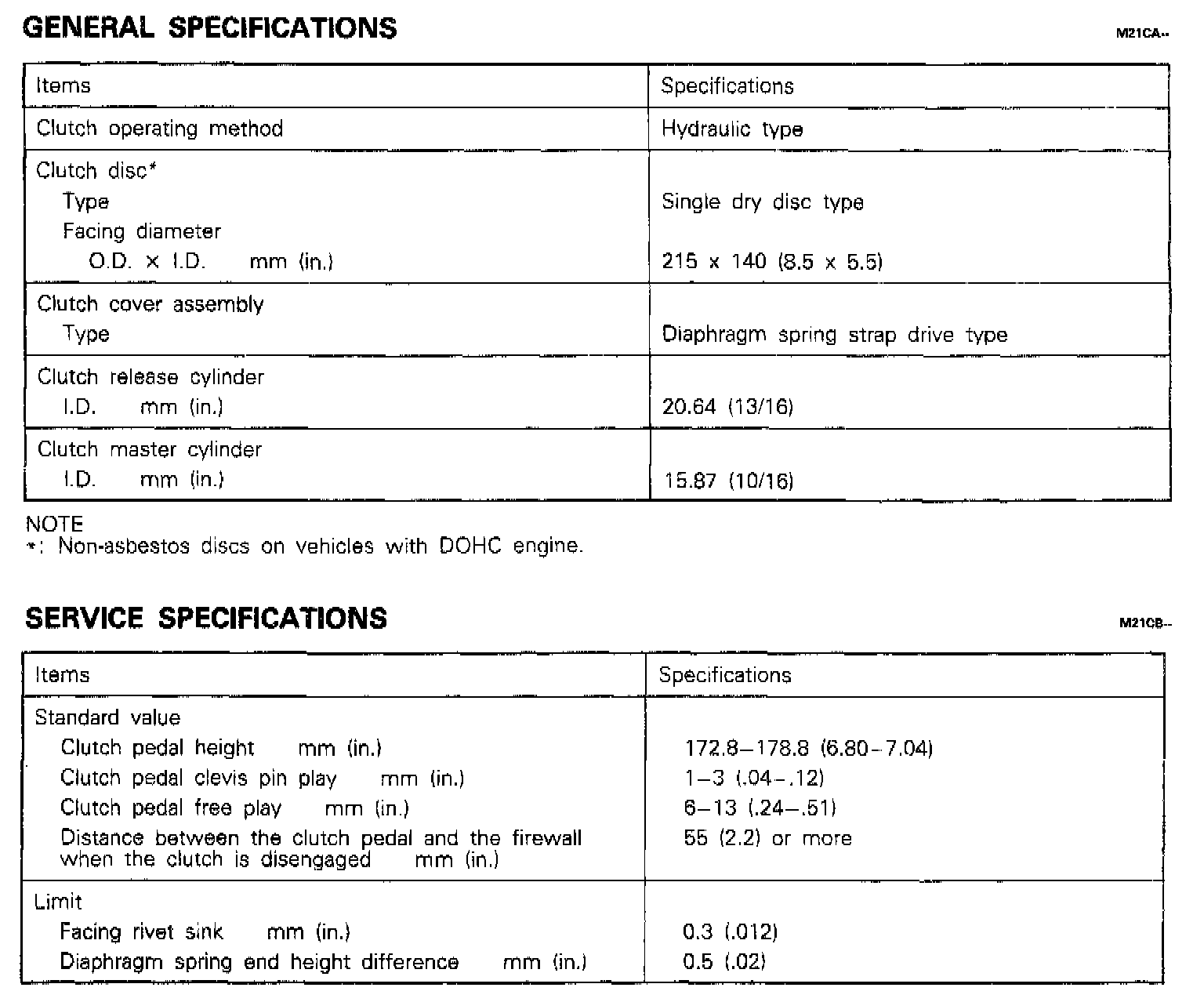

KM206 5-spd M/T, Clutch Dimensions:

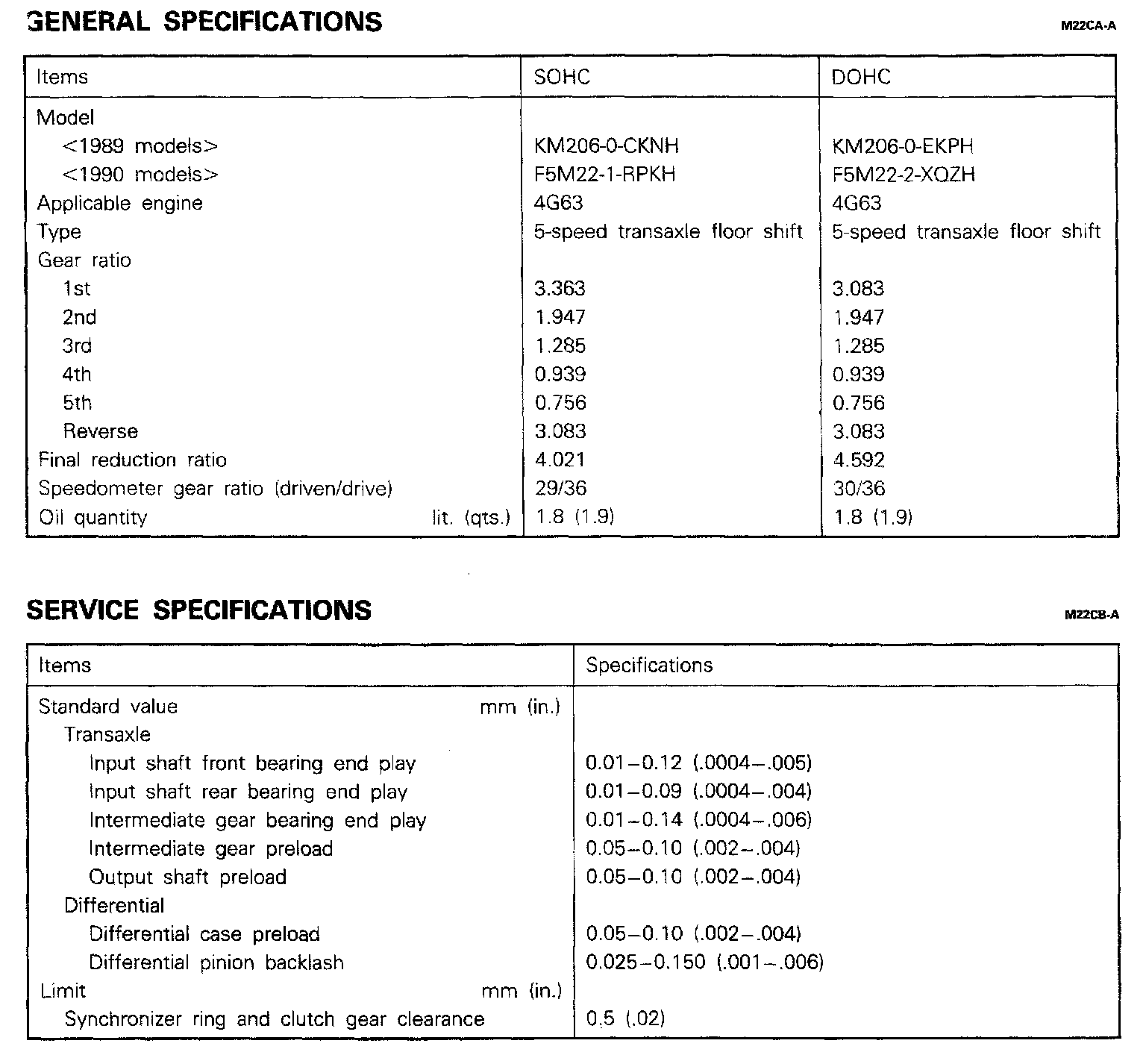

5-spd M/T, Gear Ratio & Standard Value / Limit:

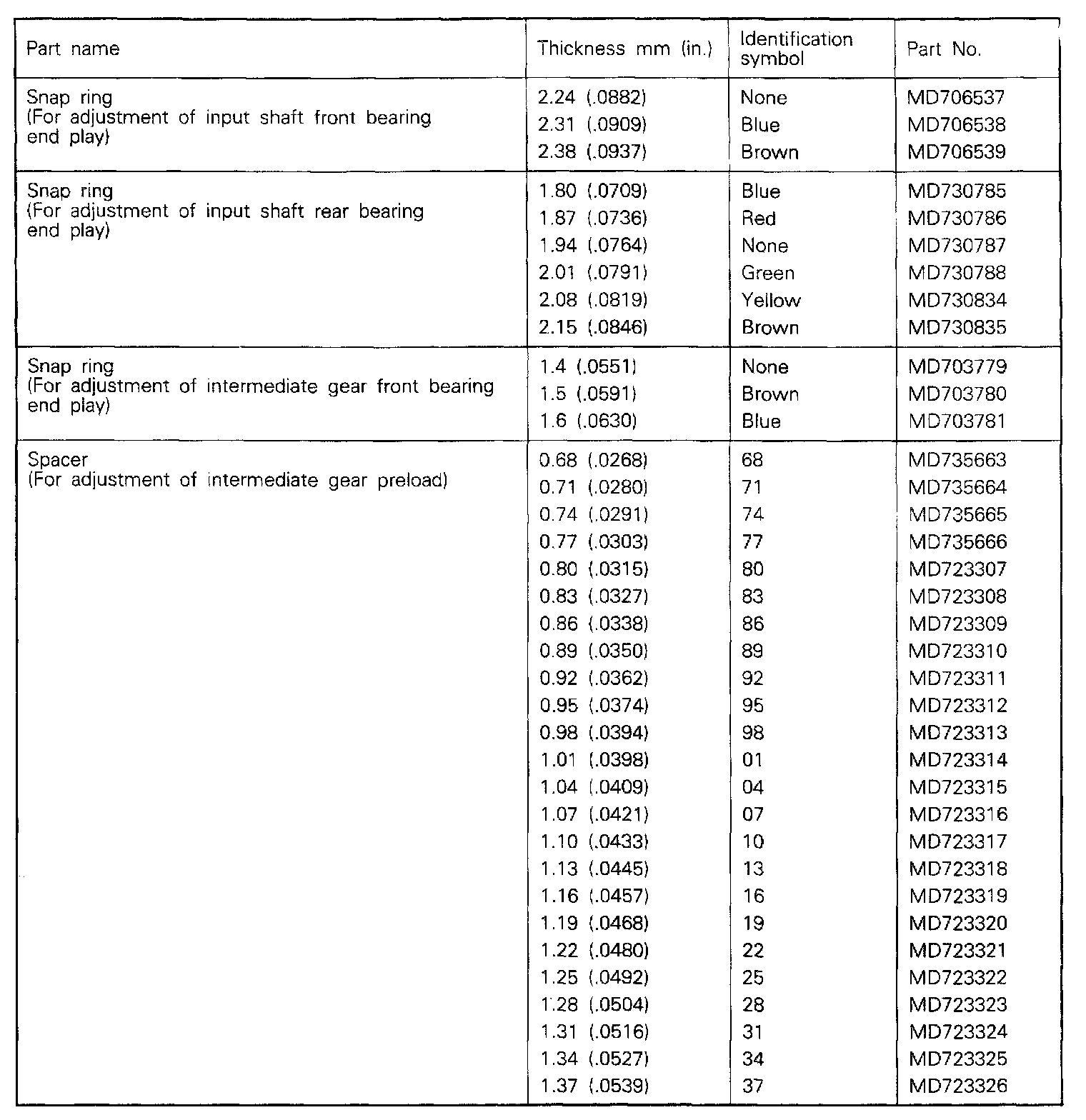

5-spd M/T, Input Shaft & Intermediate Gear:

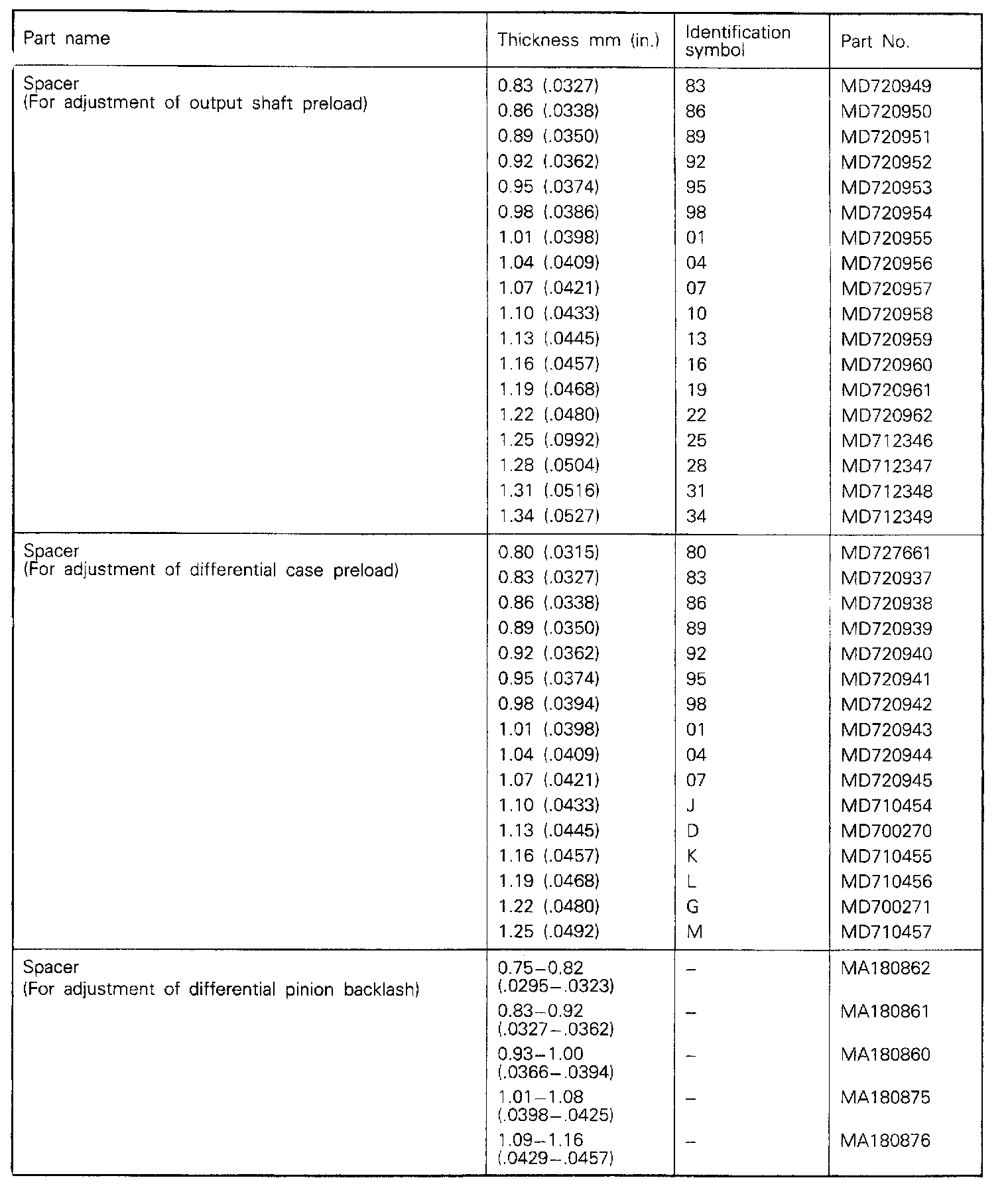

5-spd M/T, Output Shaft & Differential Preload / Backlash:
