Fluid - M/T: Service and Repair
REPLACEMENT OF TRANSAXLE GEAR OIL 1.

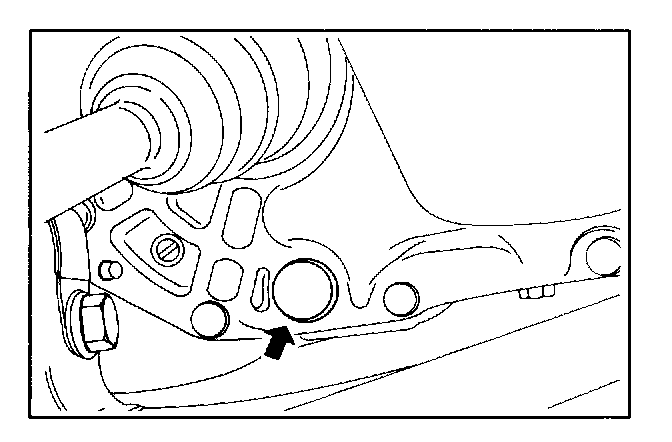

With the vehicle parked on a level surface, remove the drain plug to drain the transaxle gear oil.
2.
Replace the gasket with a new one and install the drain plug.
3.
Add new oil through the drain plug, filling to a level
5-9 mm (0.2-0.4 in.) below the plug opening.
