Flow of Diagnosis

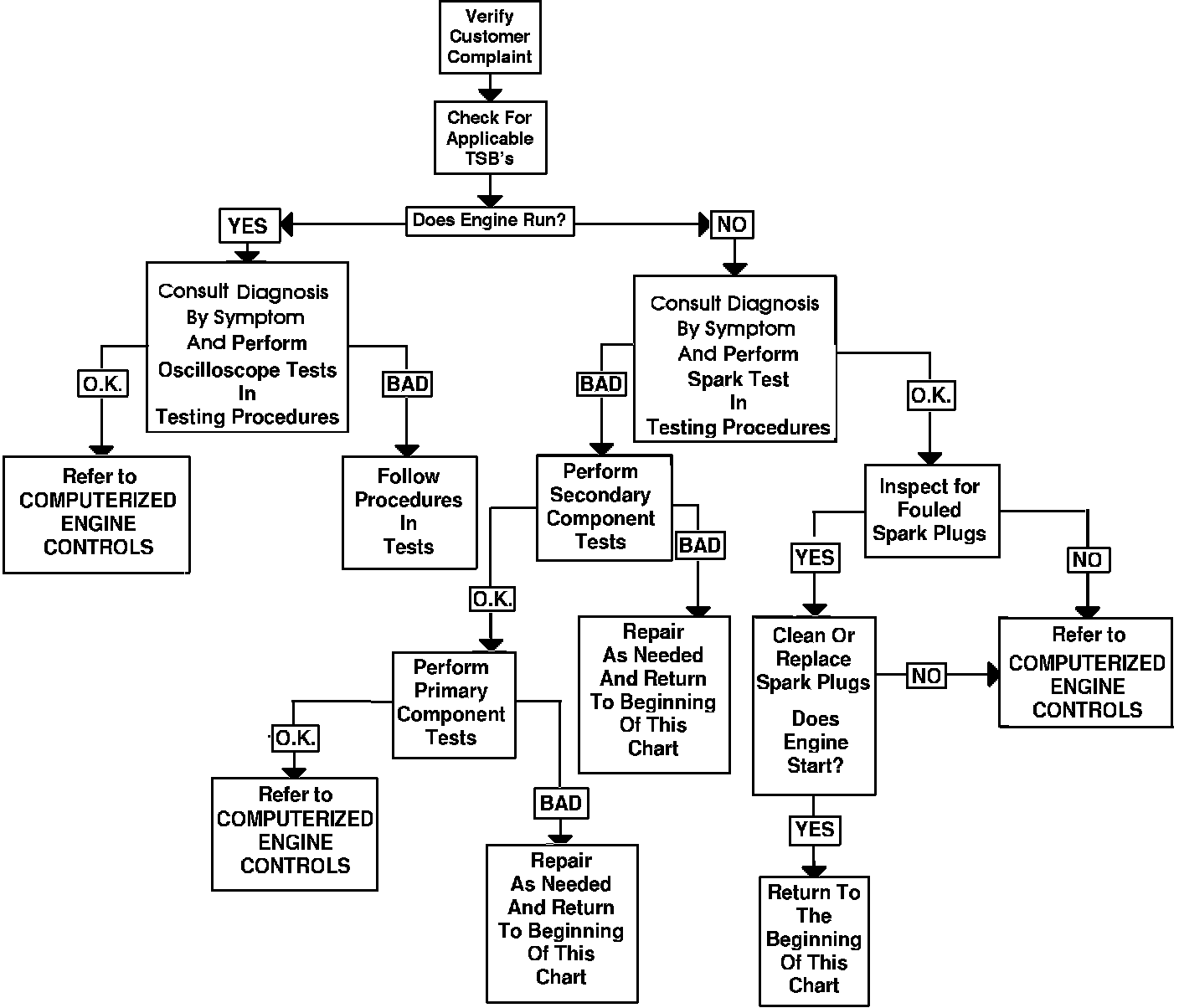

Flow Of Diagnosis:

FLOW OF DIAGNOSIS

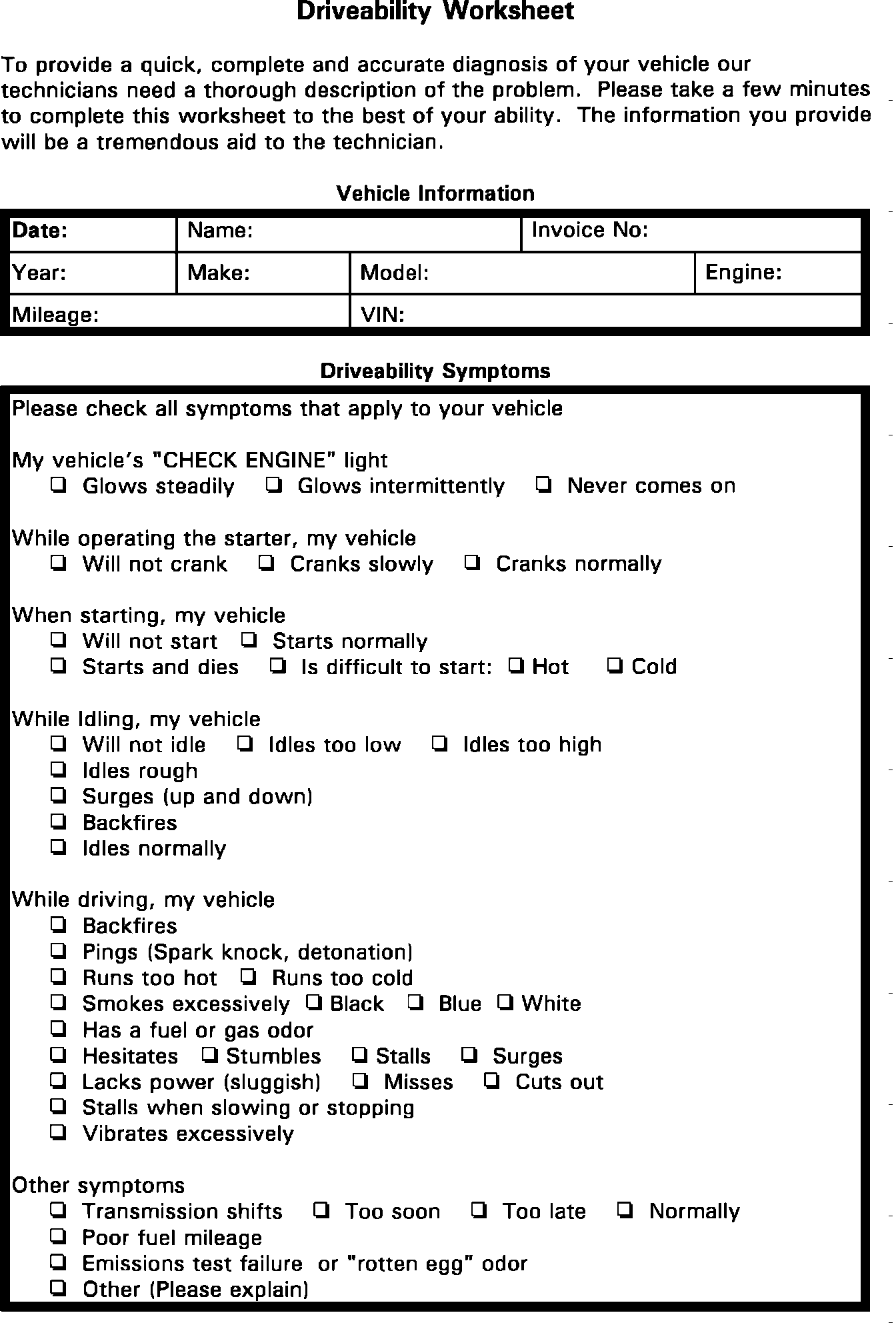

Driveability Worksheet (Part 1 Of 2):

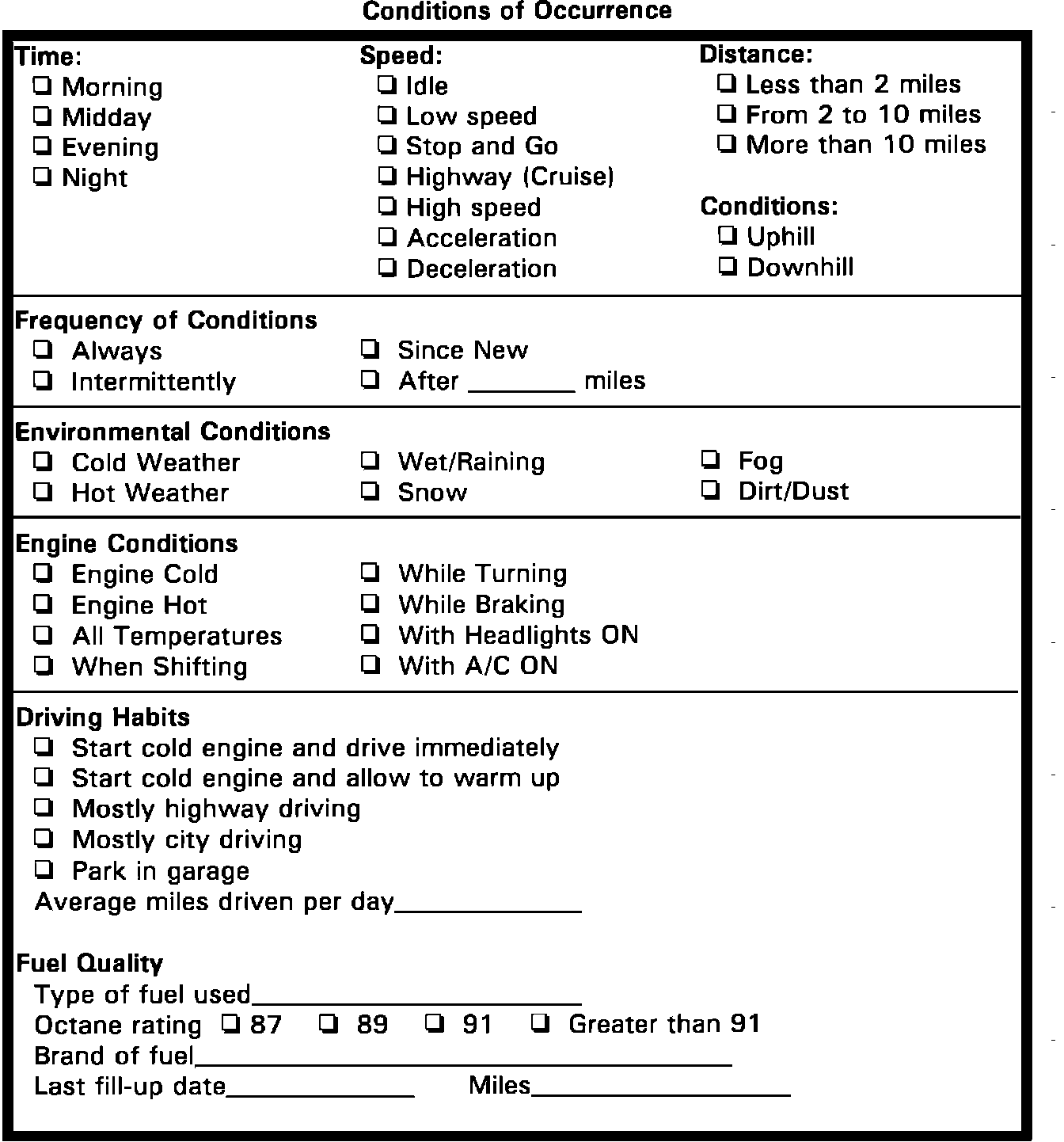

Driveability Worksheet (Part 2 Of 2):

DRIVEABILITY WORKSHEET

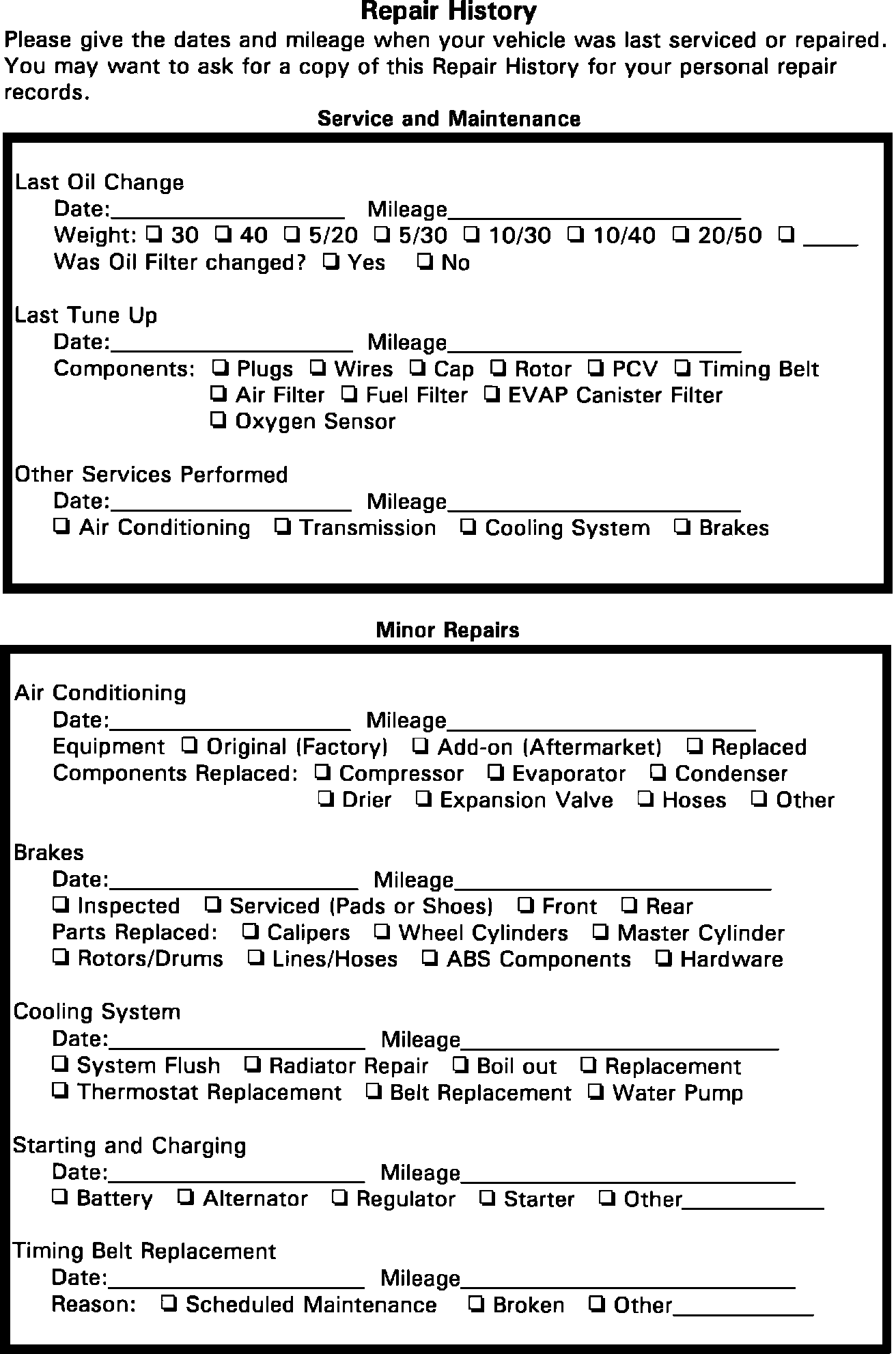

Repair History (Part 1 Of 2):

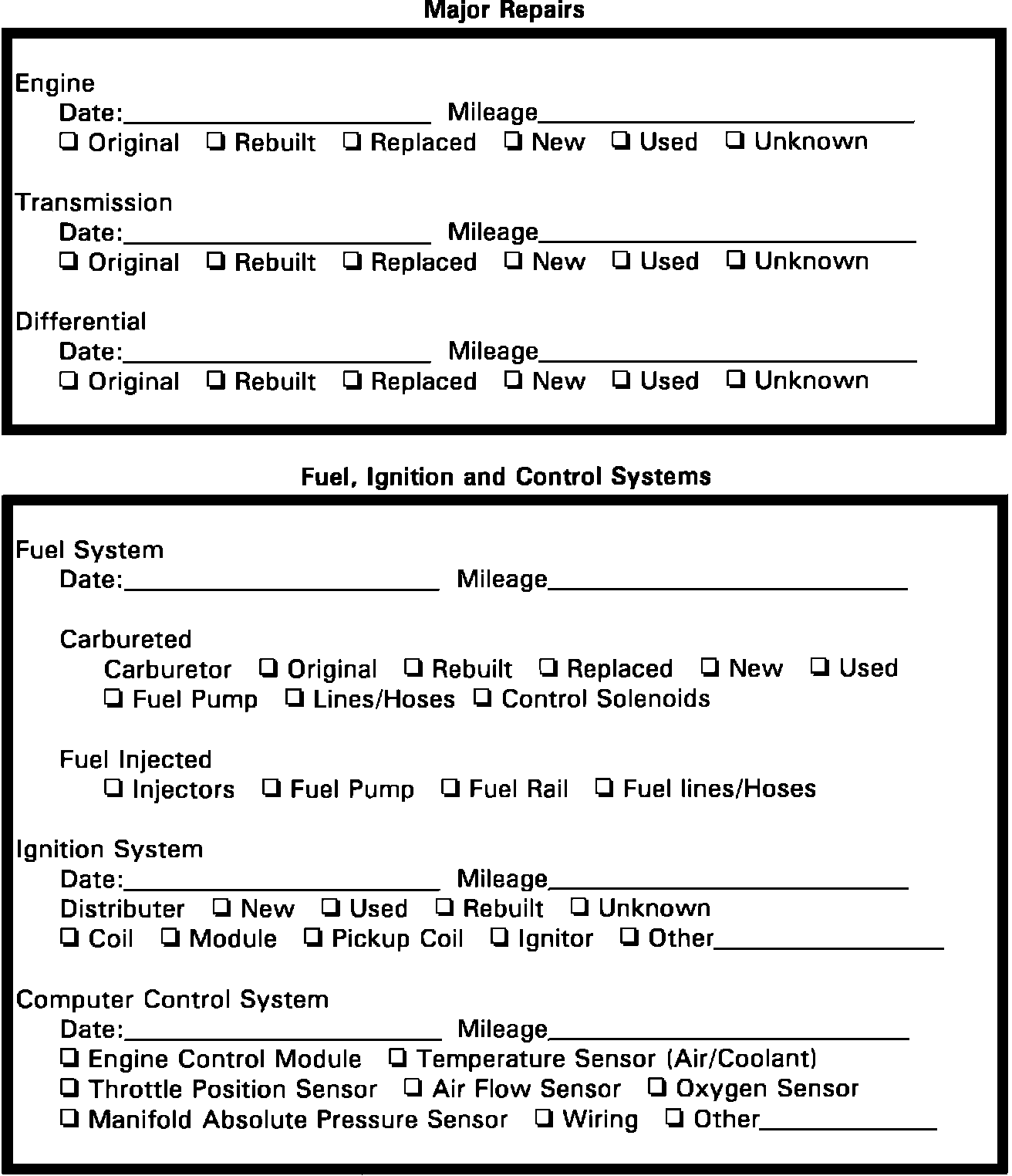

Repair History (Part 2 Of 2):

VEHICLE REPAIR HISTORY WORKSHEETS

1. Utilize the REPAIR HISTORY and DRIVEABILITY WORKSHEETS in this section to provide better communication between the customer and the mechanic. This provides for more accurate and timely vehicle diagnosis/repair.
2. Check any Technical Service Bulletins that may apply to the vehicle being serviced. These bulletins may contain important information regarding warranty, recalls, revised service procedures, etc.
3. Follow the Flow Of Diagnosis from top to bottom.
4. For testing components see COMPONENT TESTING.
5. If no faults are found in the ignition system, refer to COMPUTERIZED ENGINE CONTROLS.
