System Specifications

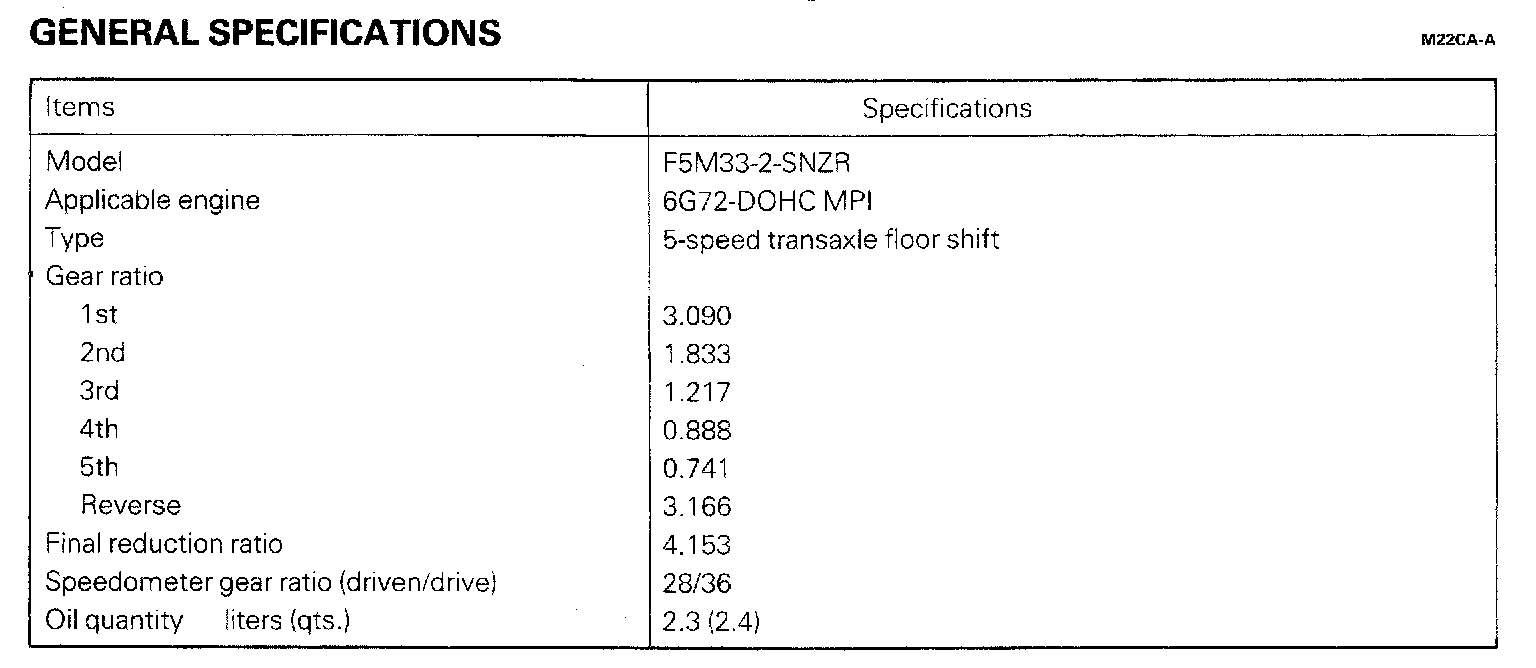

F5M33 5-spd M/T, Gear Ratio:

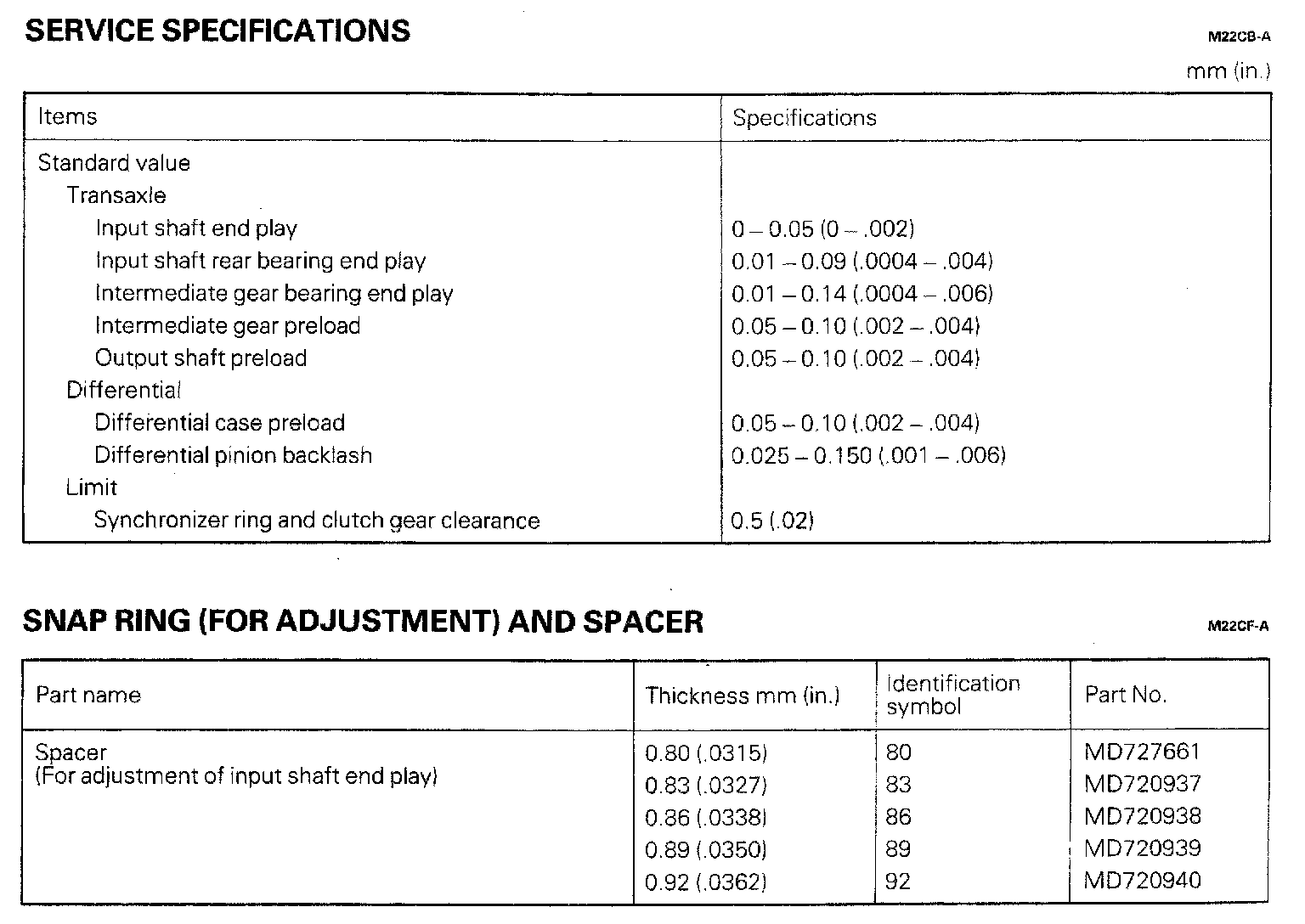

F5M33 5-spd M/T, Standard Values & Limits:

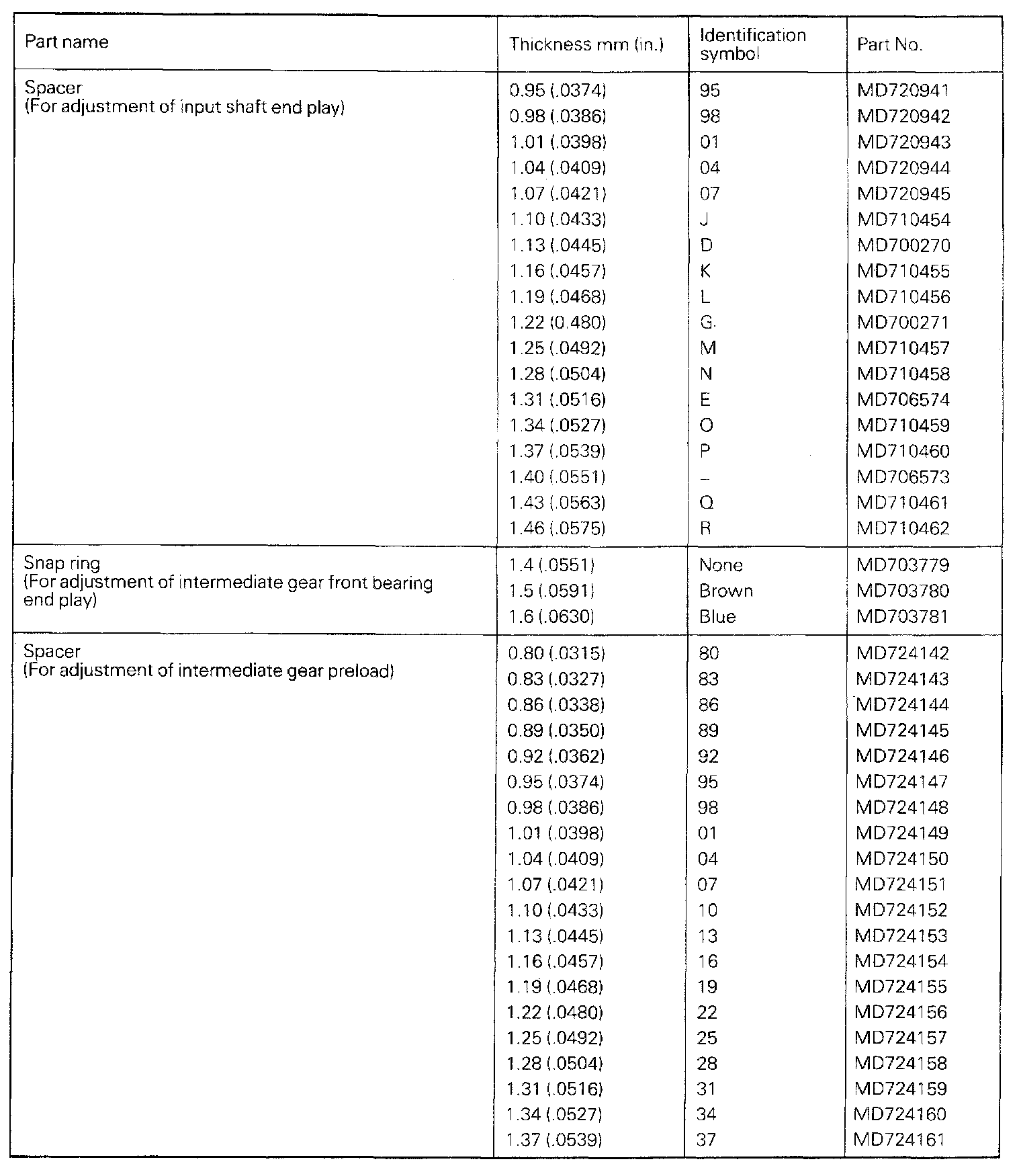

F5M33 5-spd M/T, Input Shaft & Intermediate Gear:

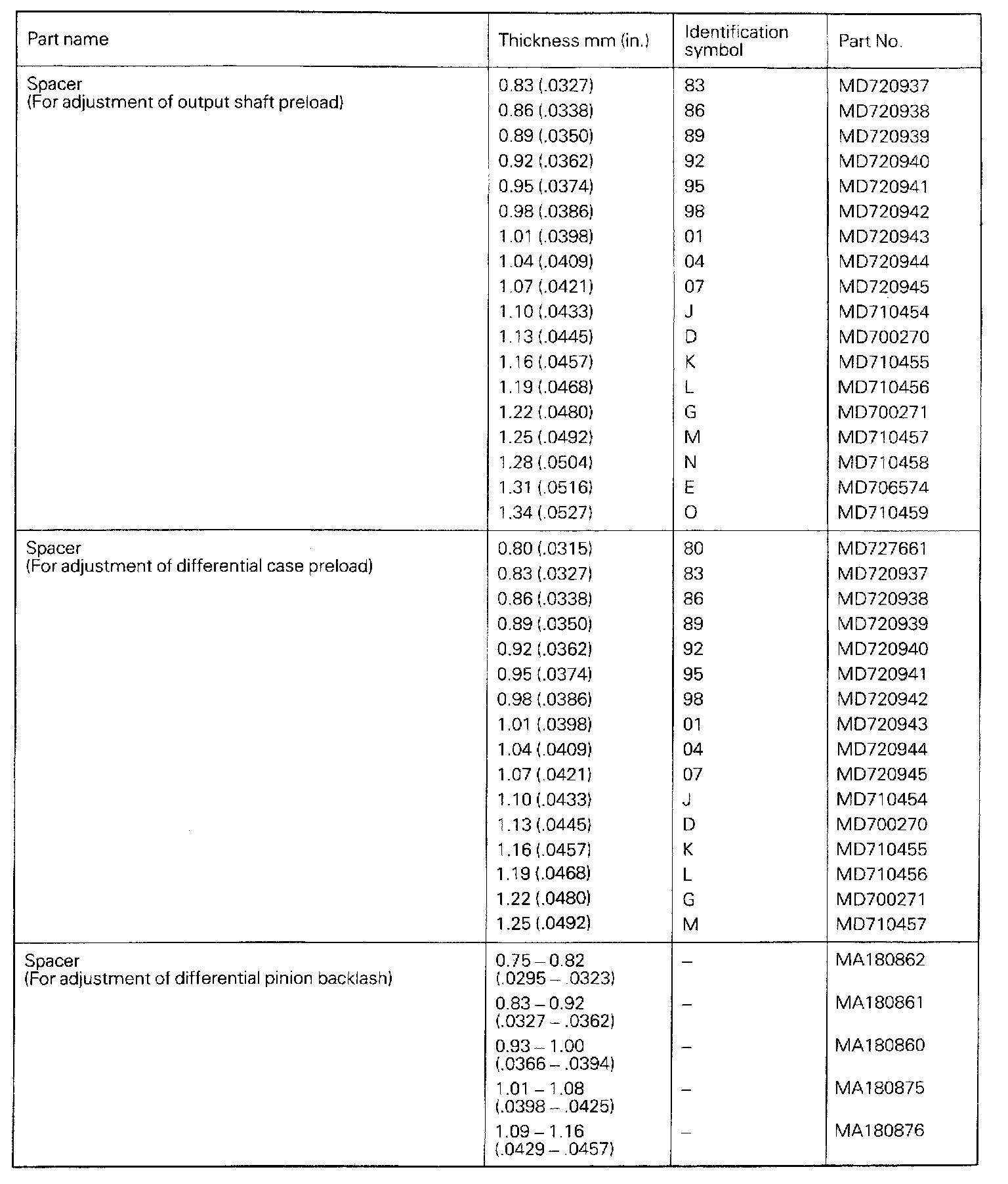

F5M33 5-spd M/T, Output Shaft & Differential Pinion Backlash:
