Automatic Transaxle

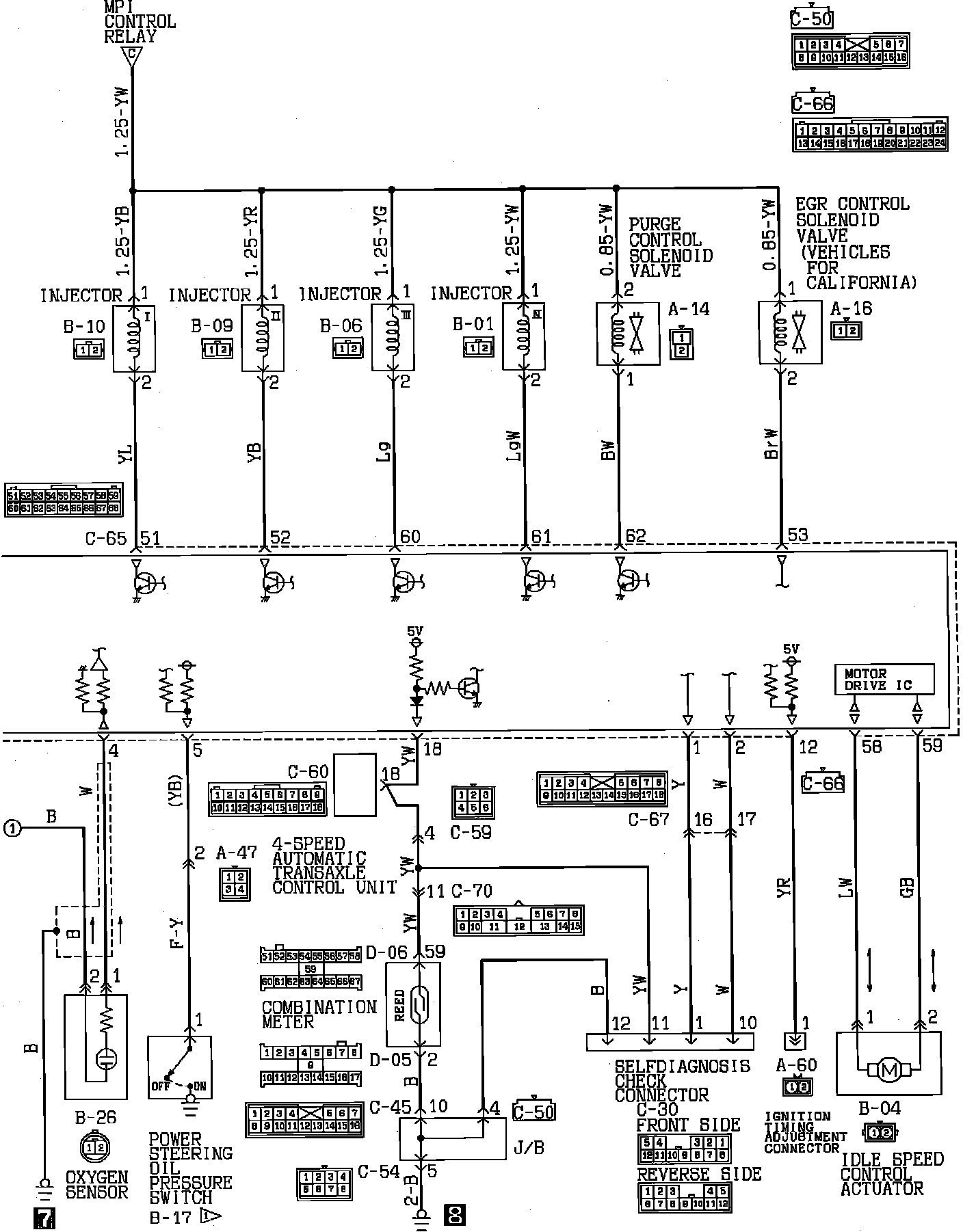

Engine Management:

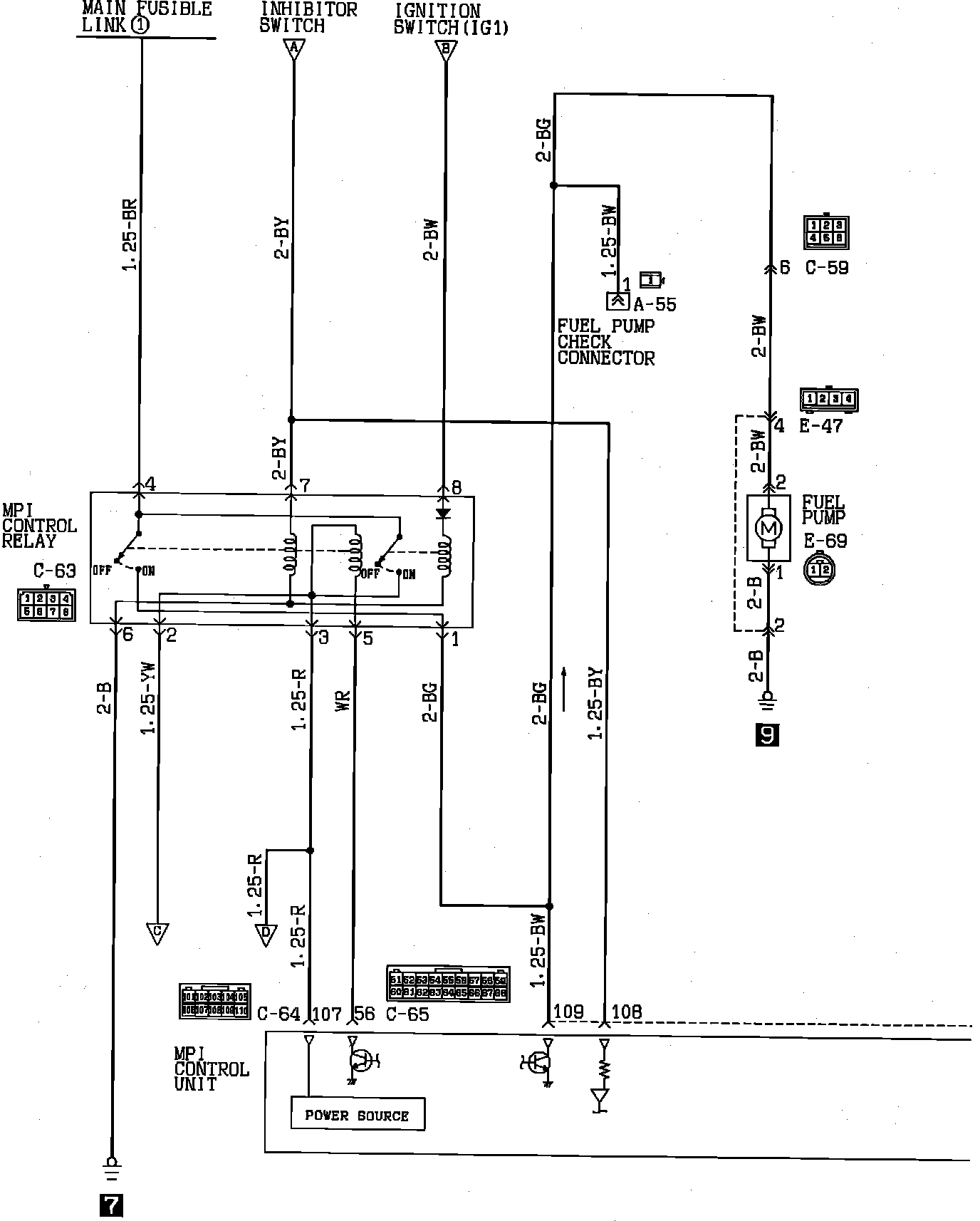

Engine Management:

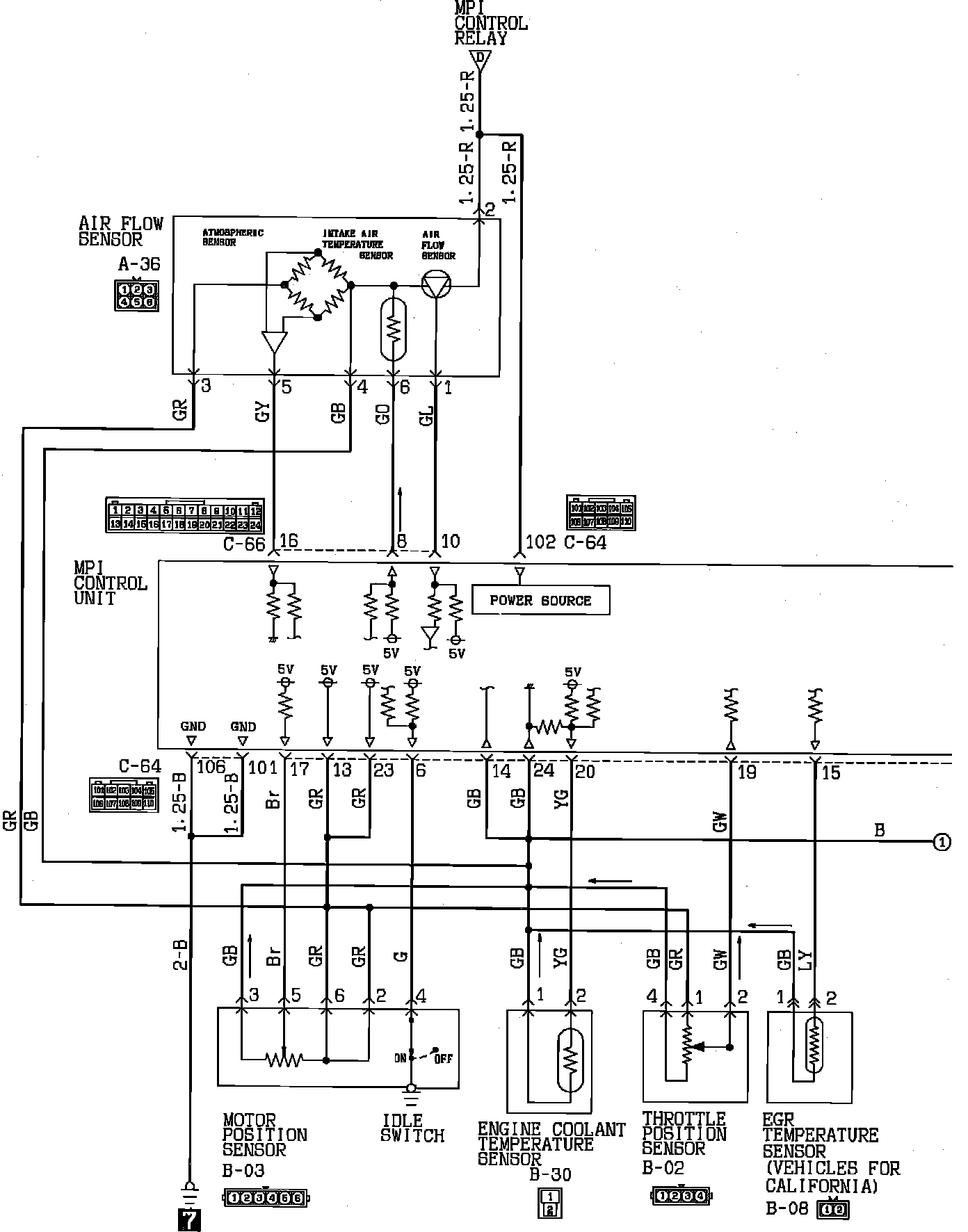

Engine Management:

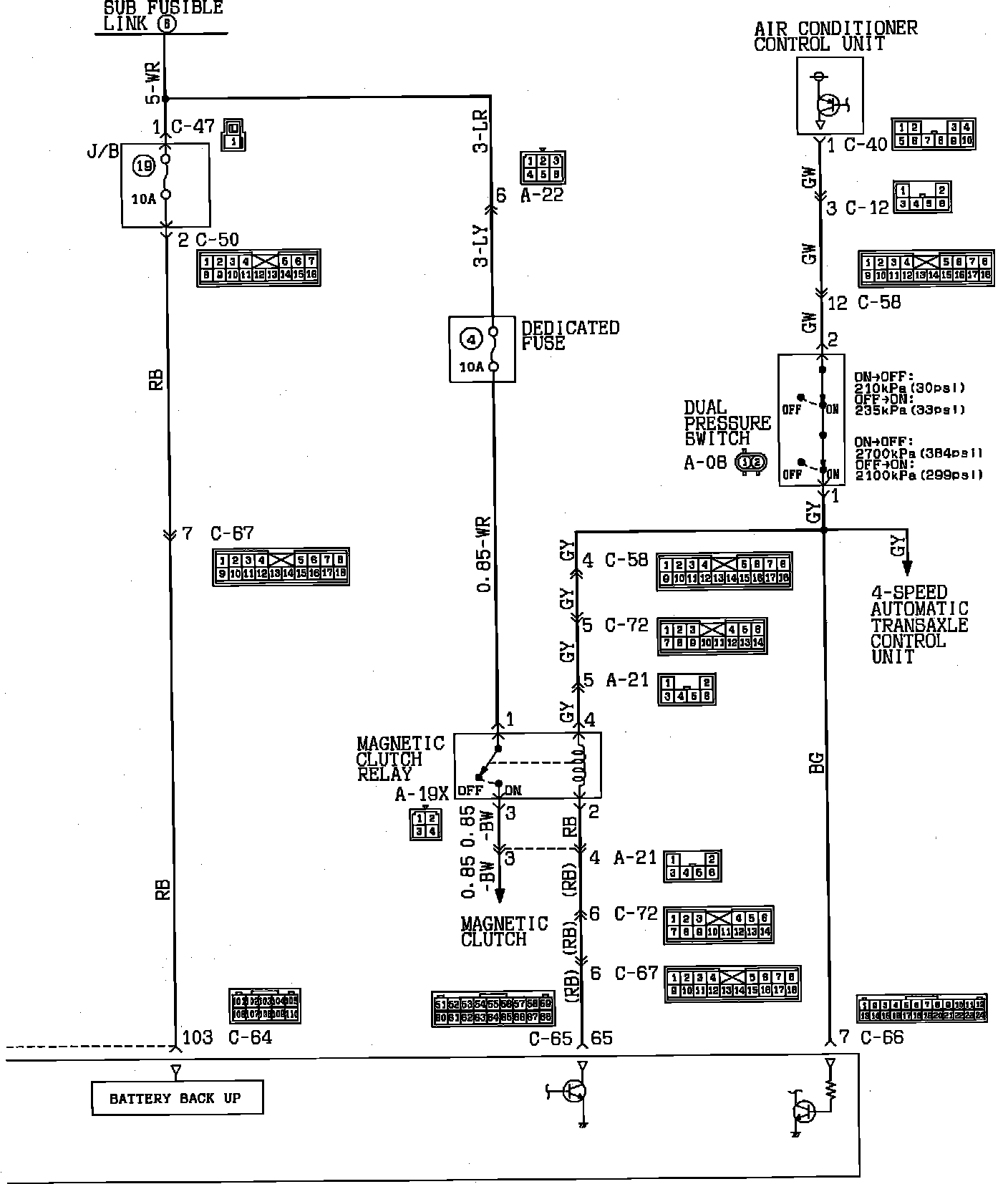

Engine Management:

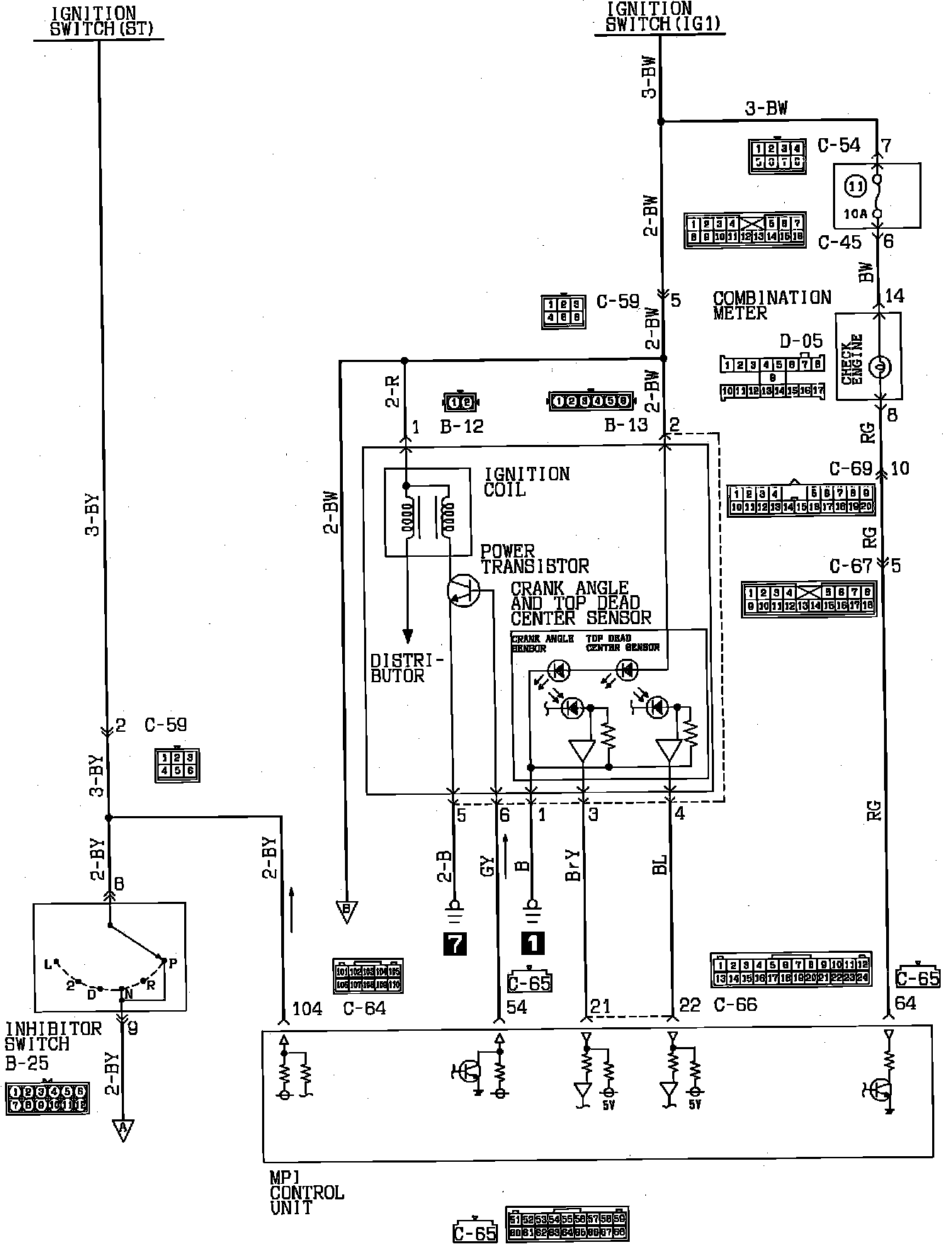

Engine Management:
