Mirage L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California Models
California Models

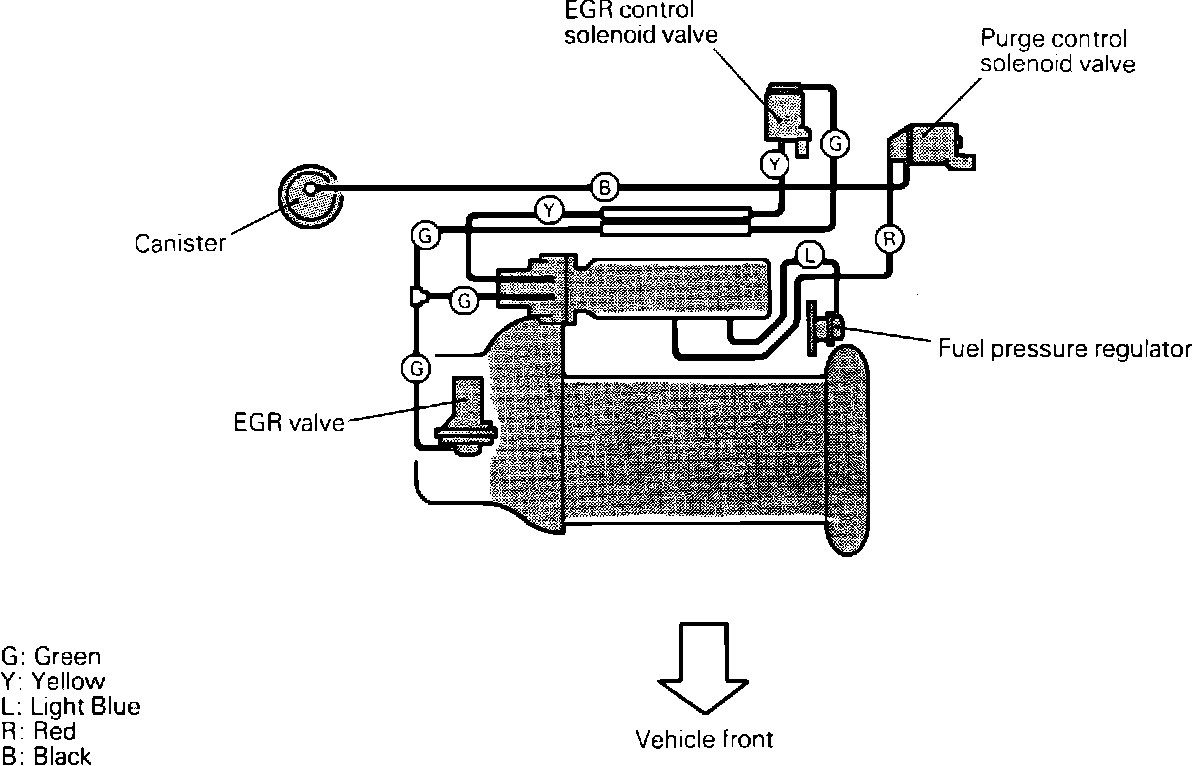

Vacuum Hose Diagram:
Vacuum Hose Diagram:
