Home
>>
Mitsubishi
>>
1991
>>
Pickup 2WD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

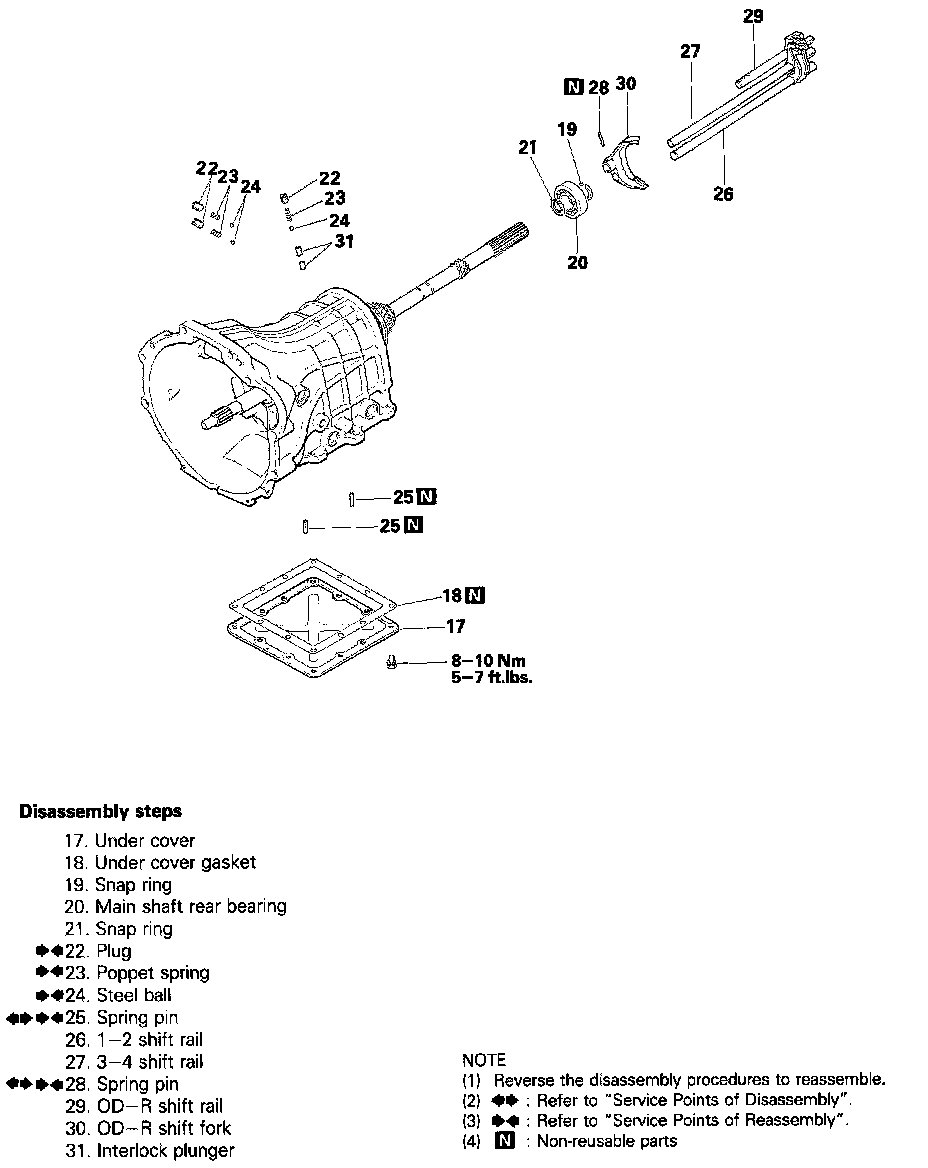

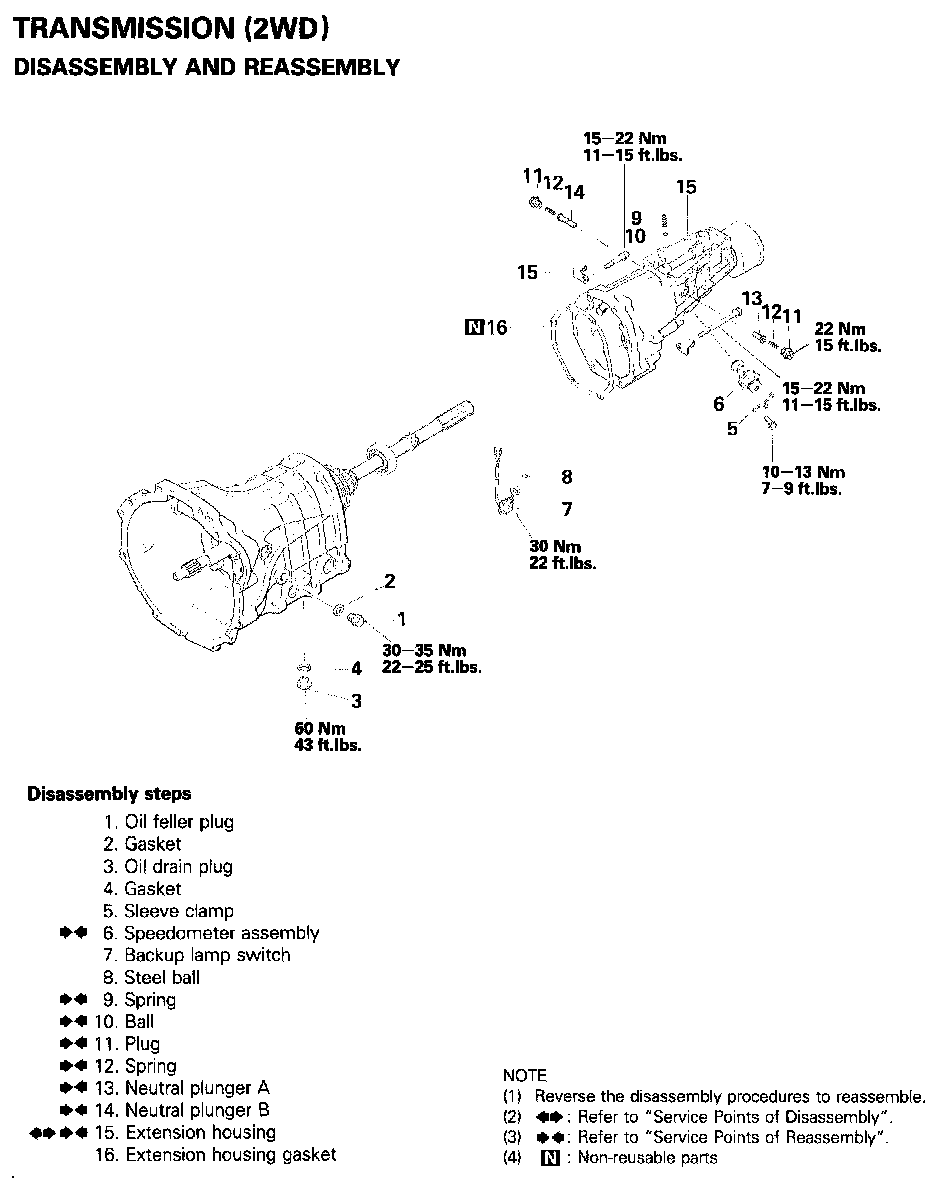

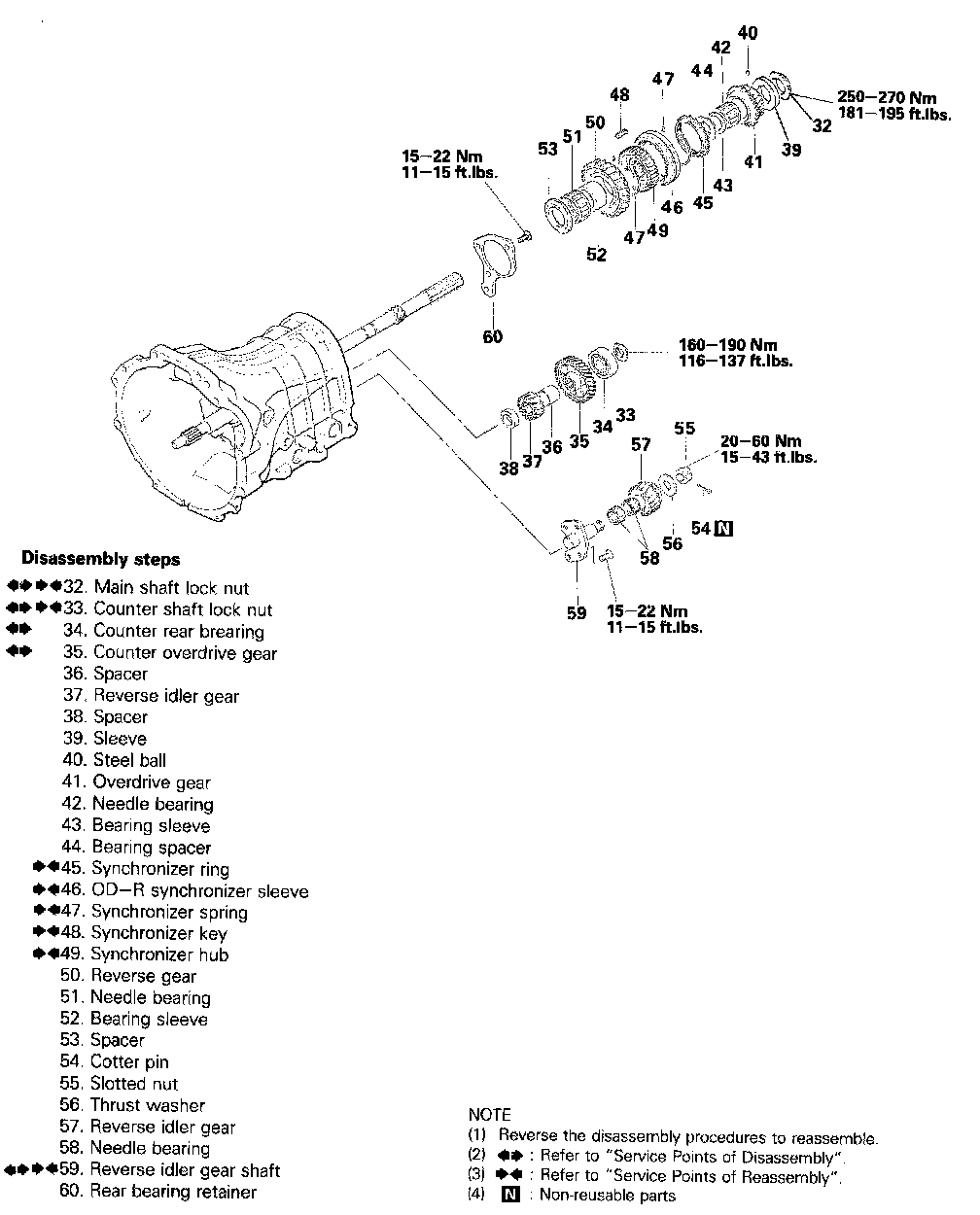

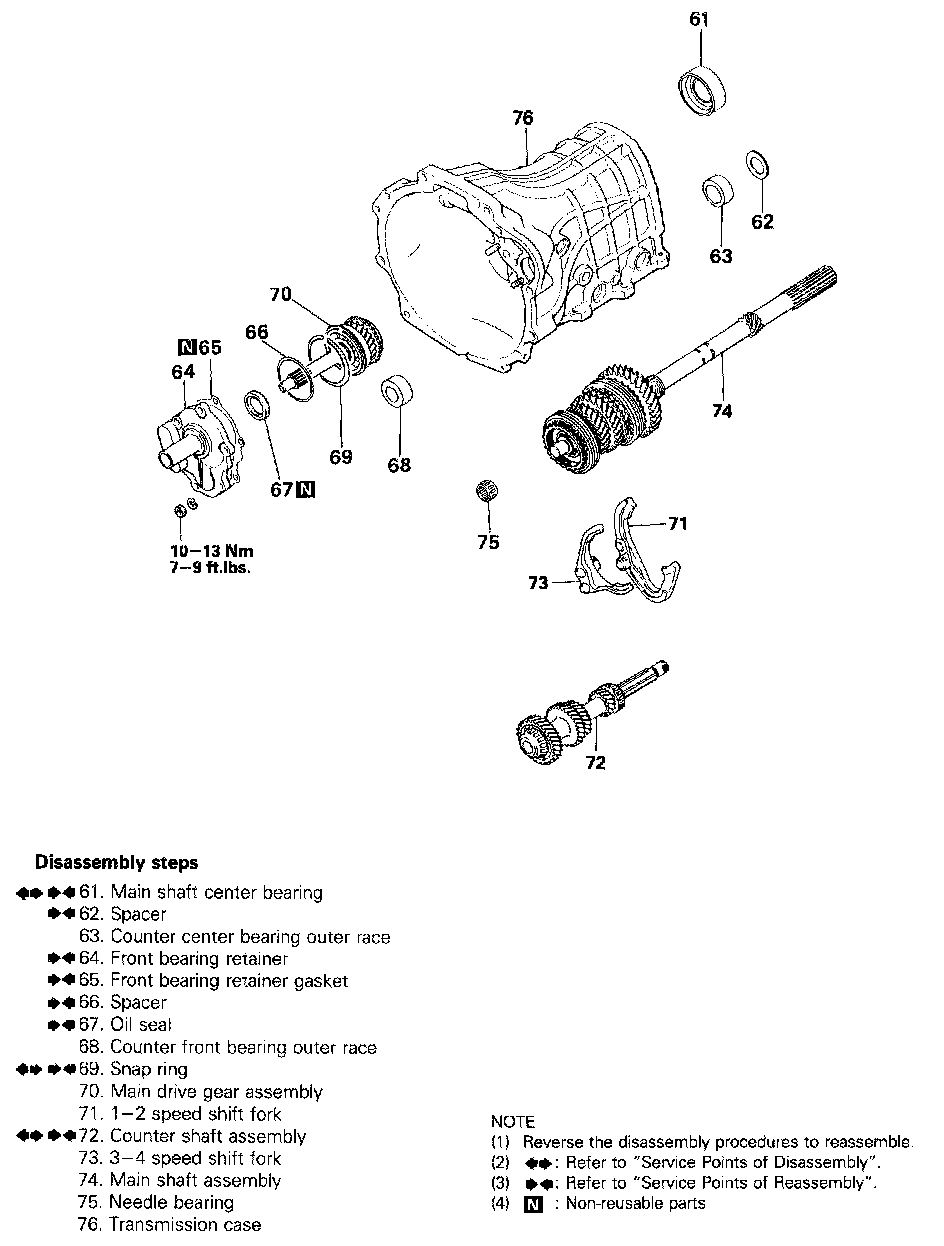

TRANSMISSION (2WD FOR 2.4/2.6L ENGINE)
DISASSEMBLY AND REASSEMBLY
