System Specifications

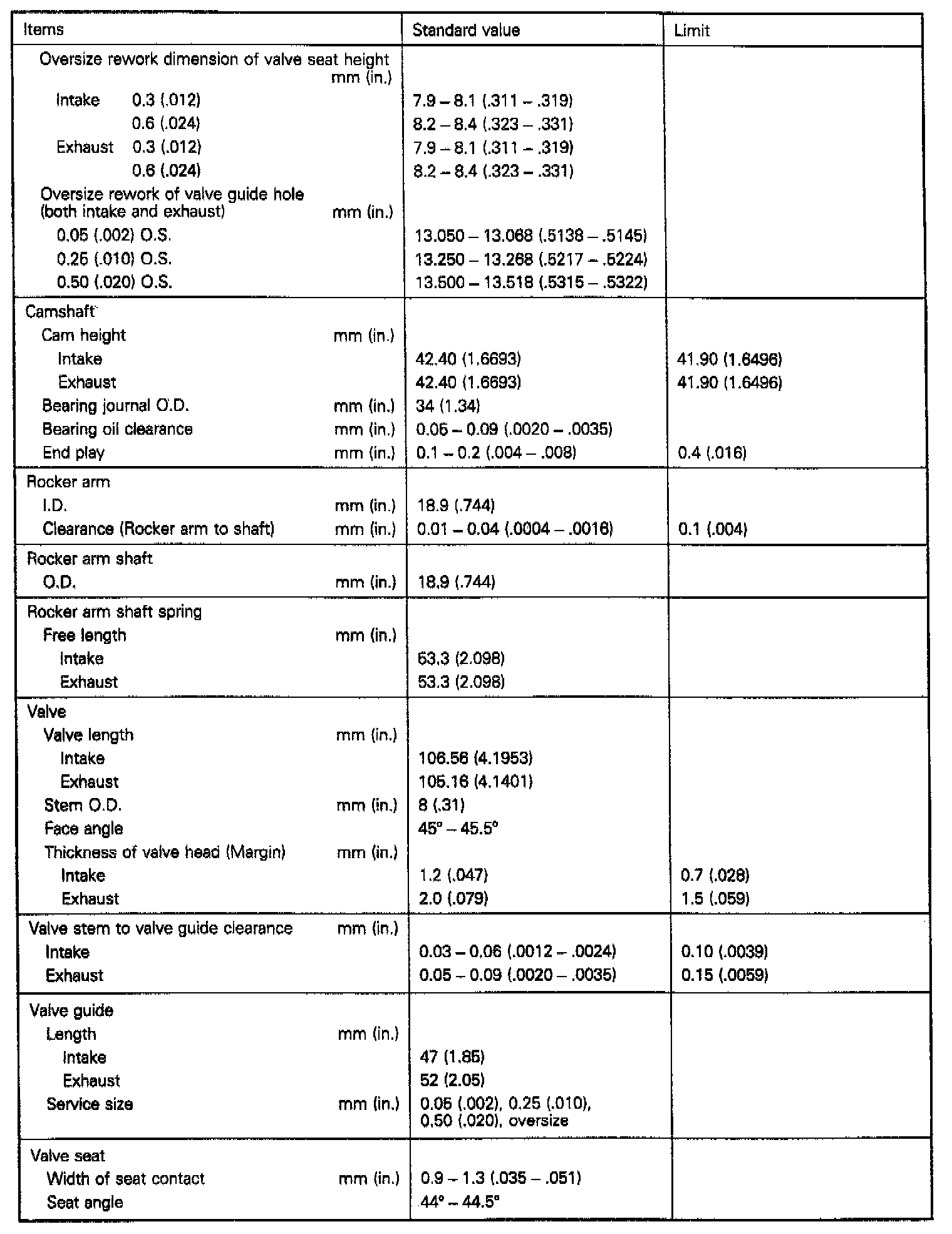

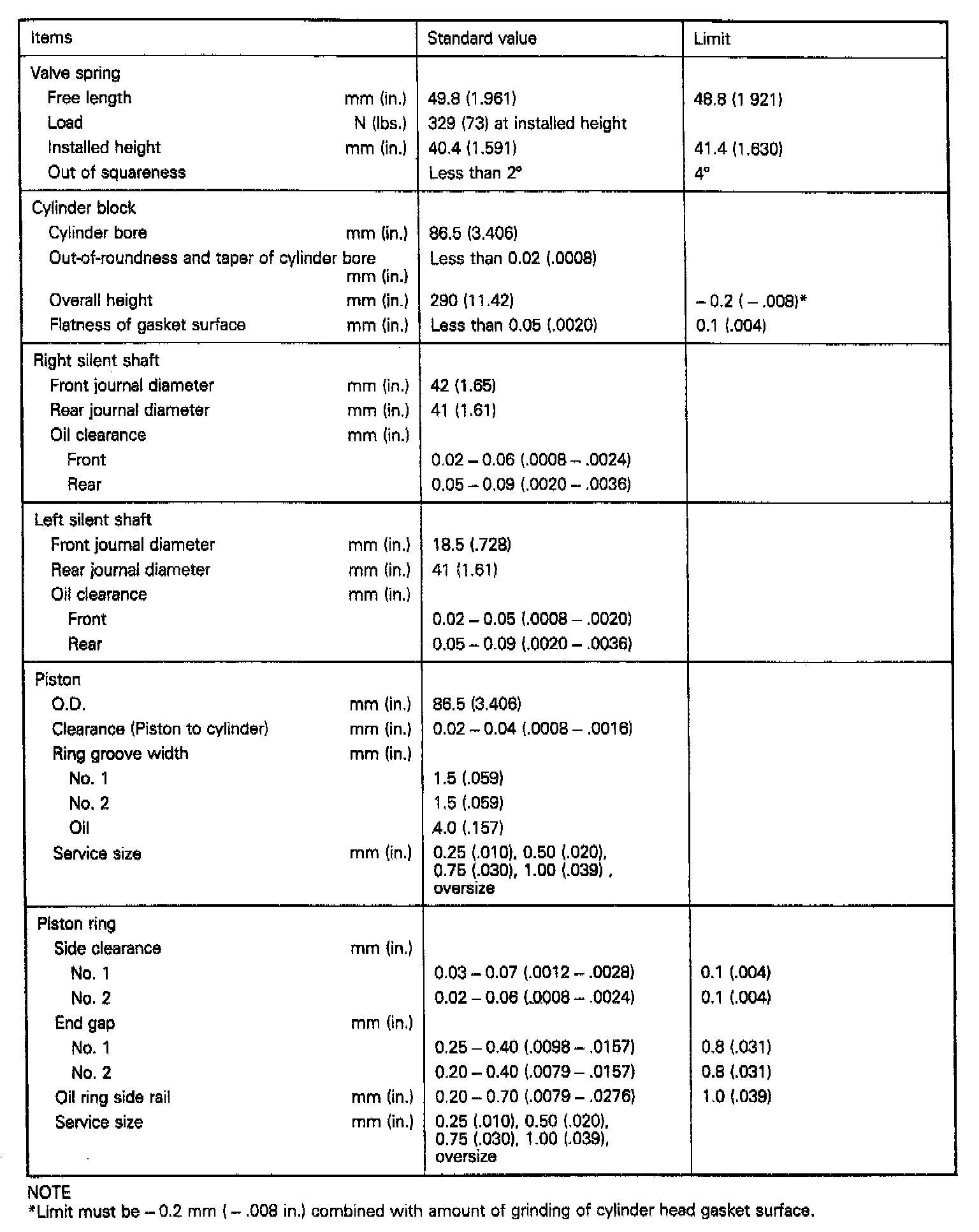

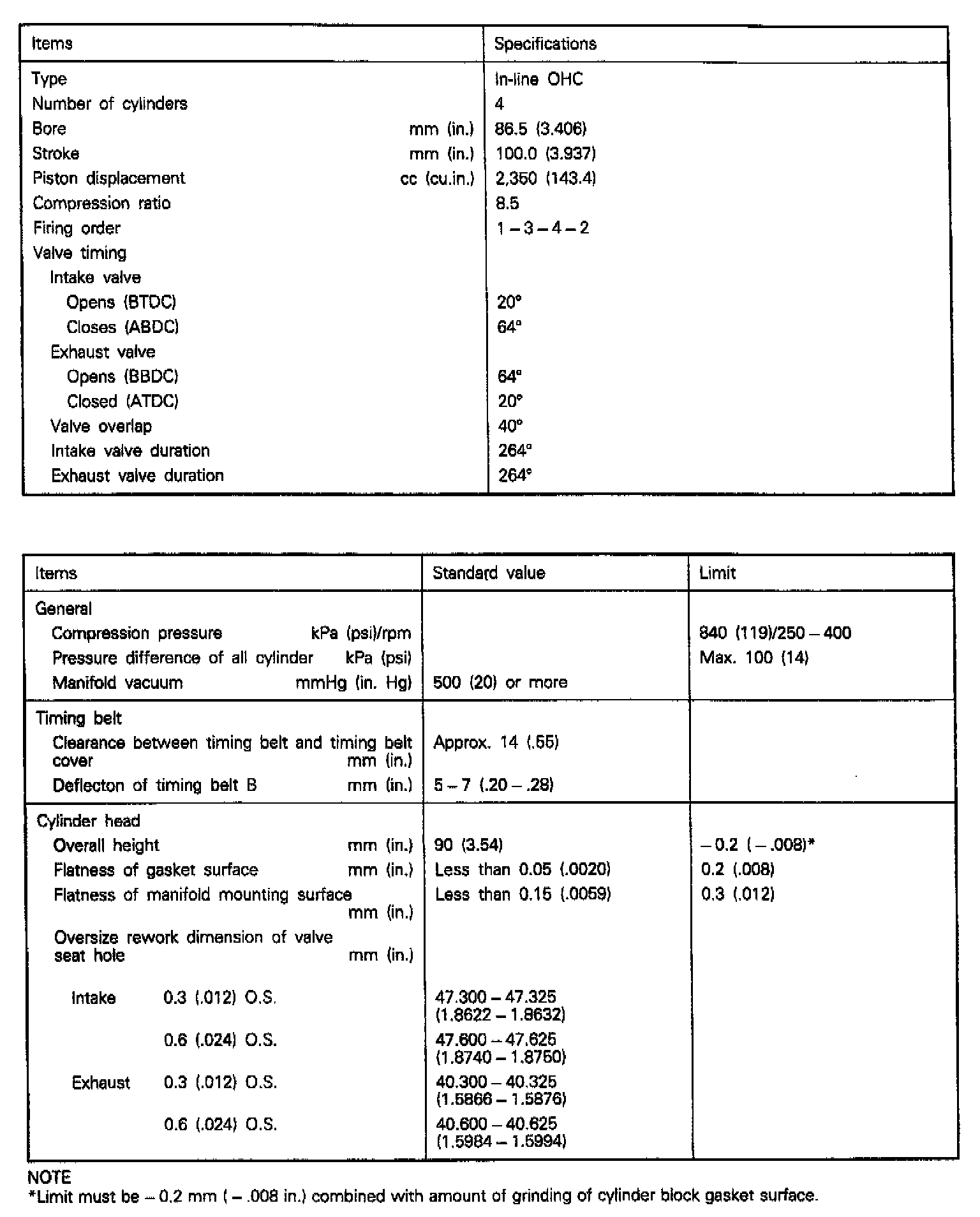

ENGINE SPECIFICATIONS

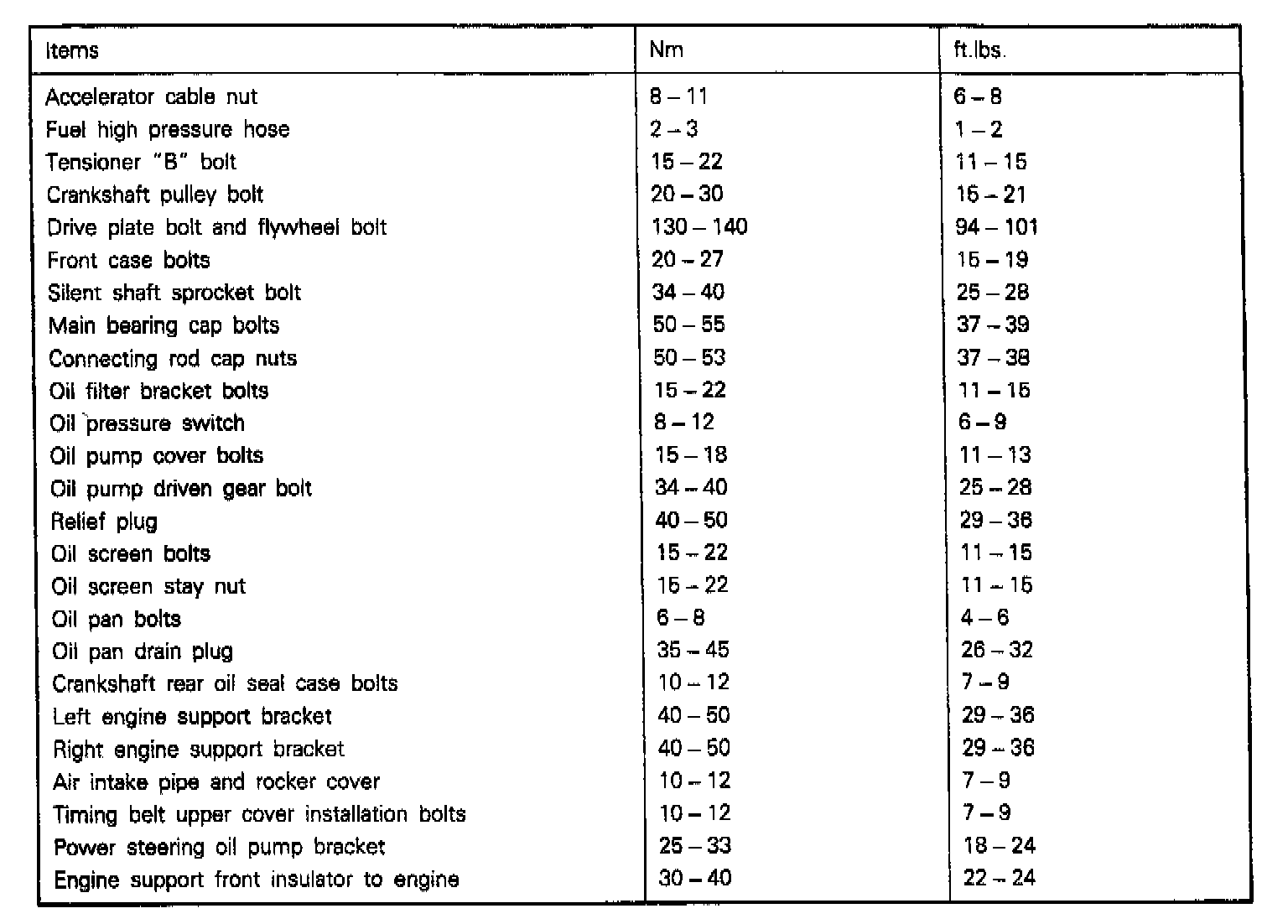

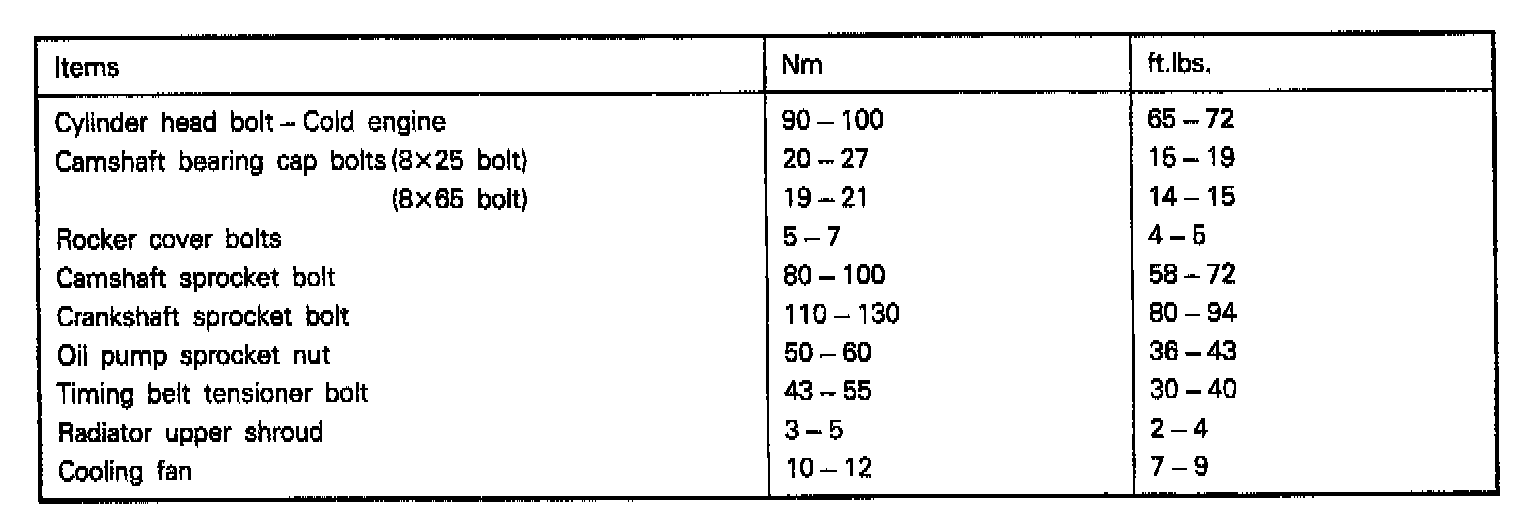

TIGHTENING SPECIFICATIONS









CYLINDER HEAD TIGHTENING SEQUENCE
