M/T Technical Data

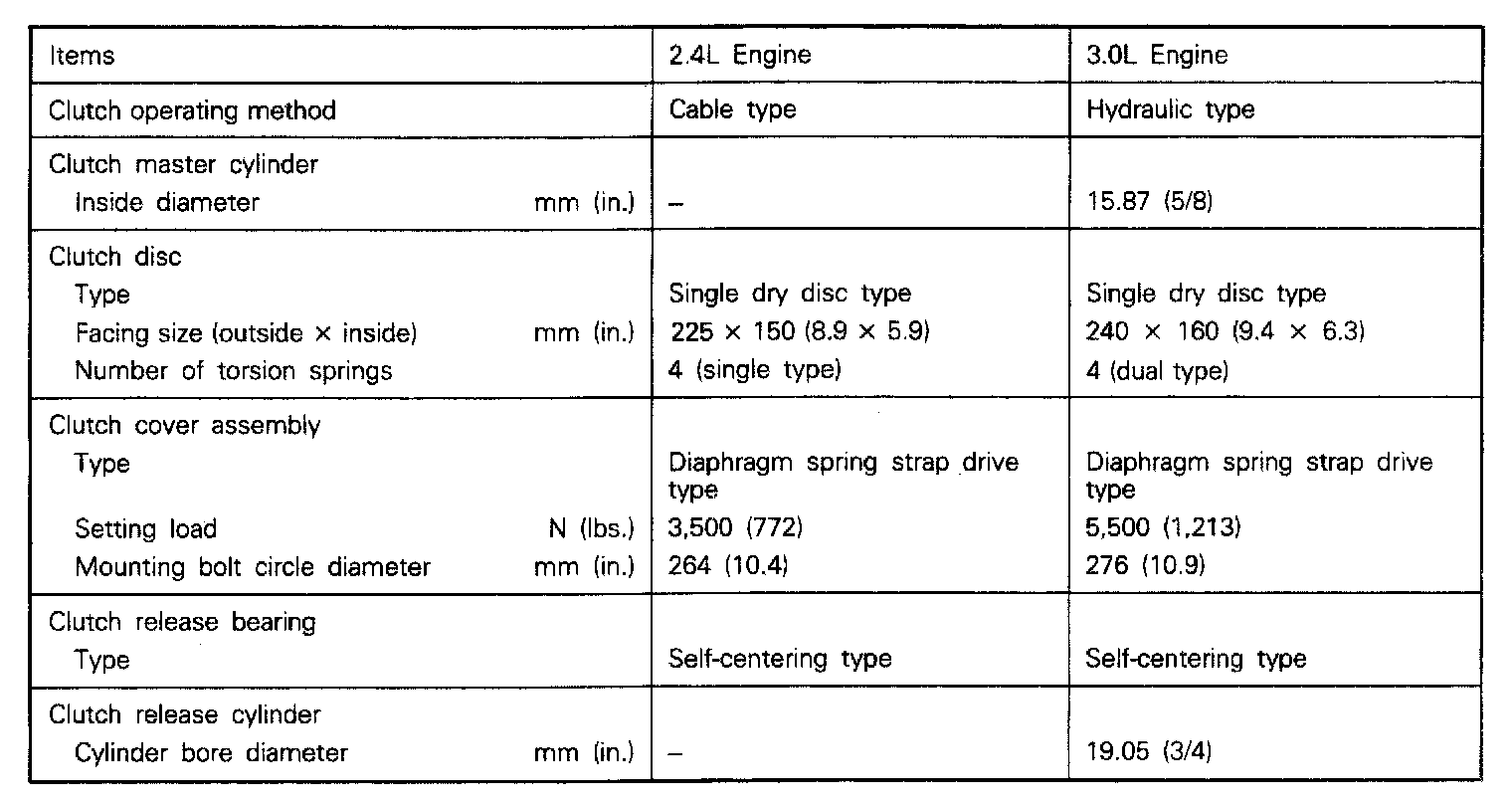

R5M21/V5MT1 5-spd M/T, Clutch Dimensions:

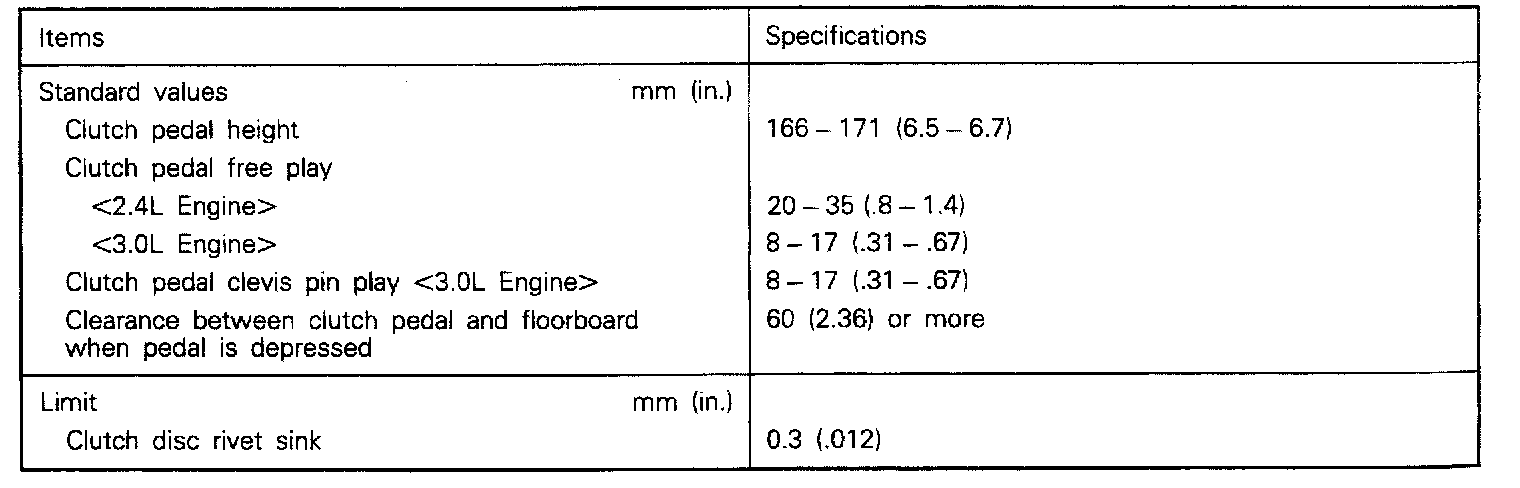

R5M21/V5MT1 5-spd M/T, Standard Values & Limits:

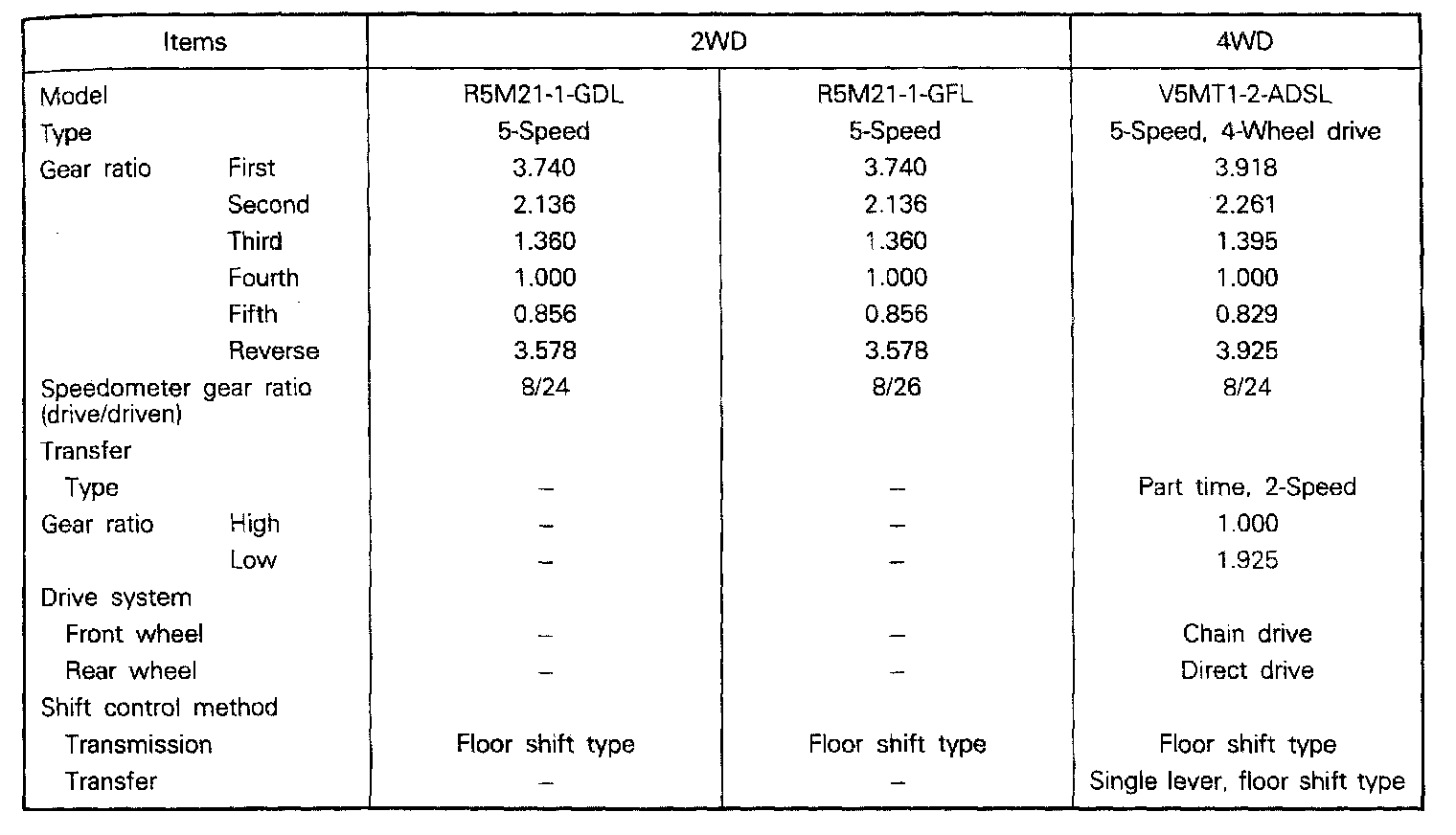

R5M21/V5MT1 5-spd M/T, Gear Ratios:

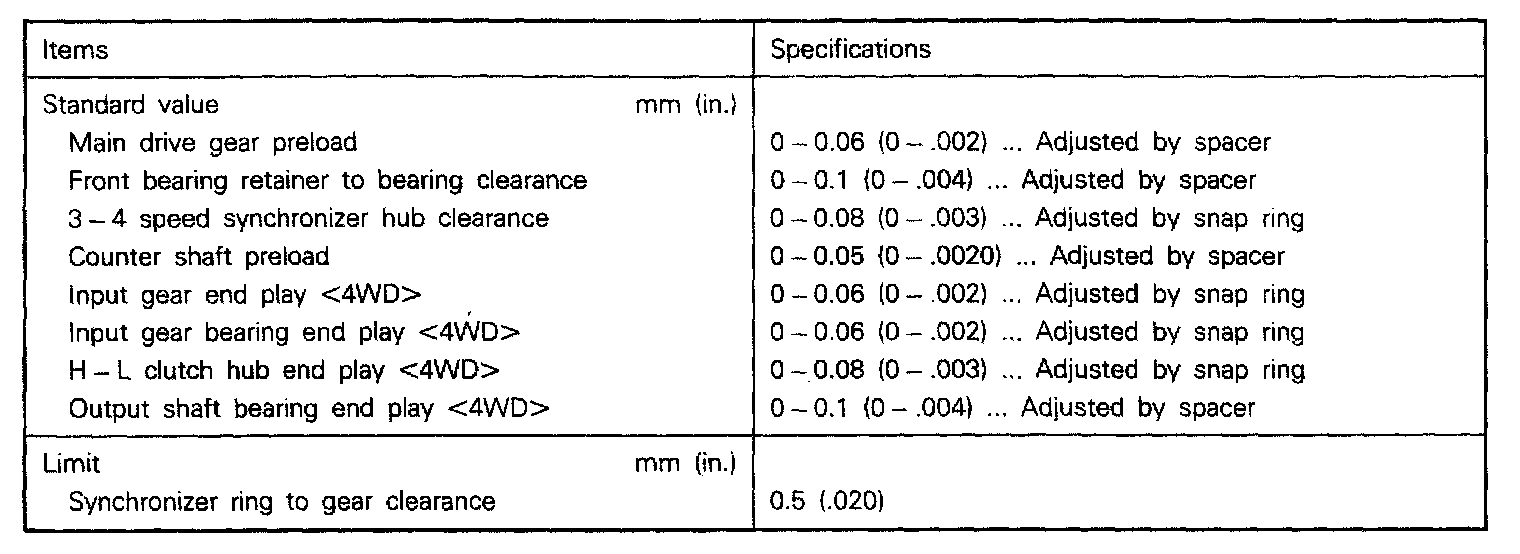

R5M21/V5MT1 5-spd M/T, Standard Values & Limits:

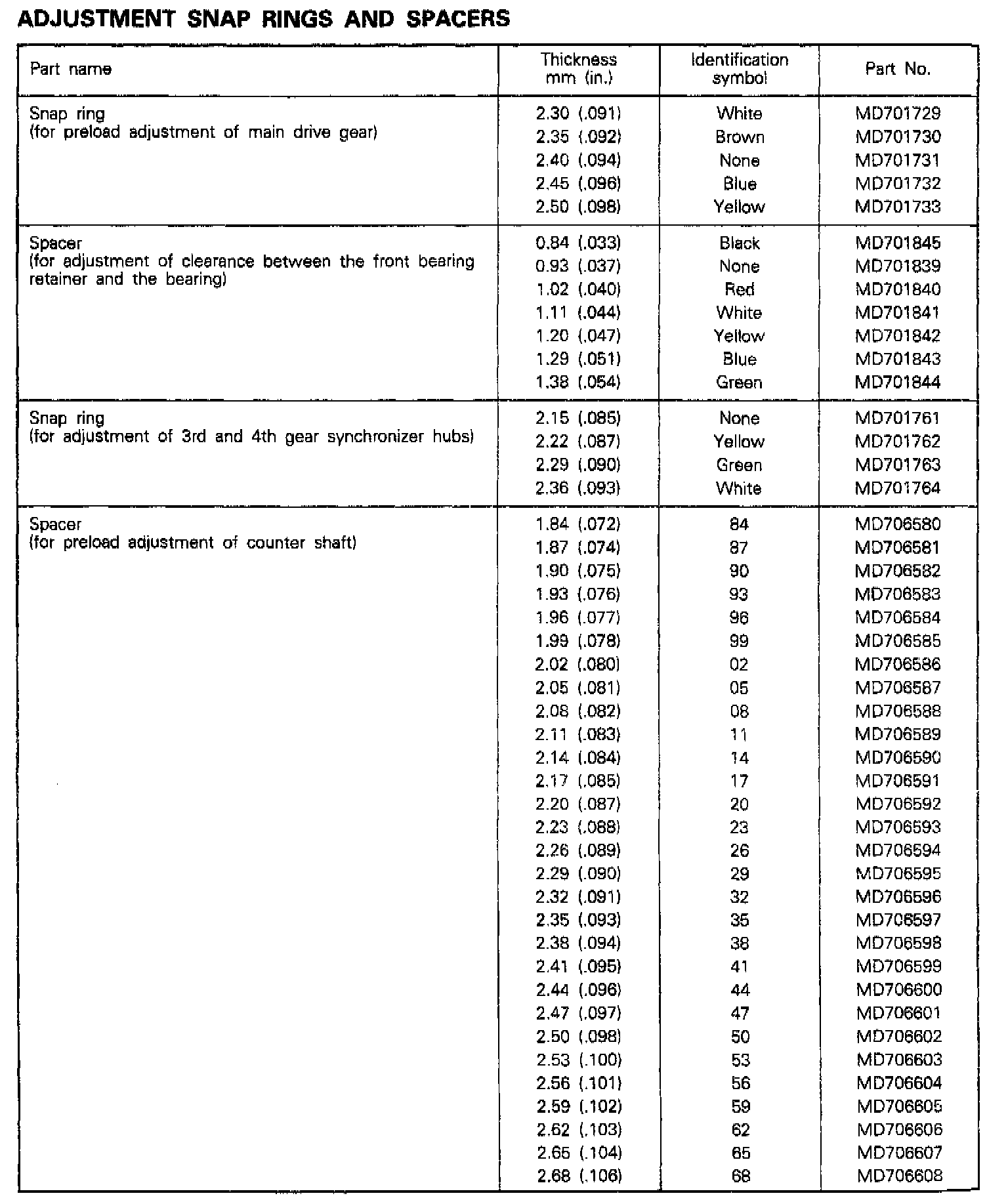

V5MT1 5-spd M/T, Transmission Preloads & Thickness:

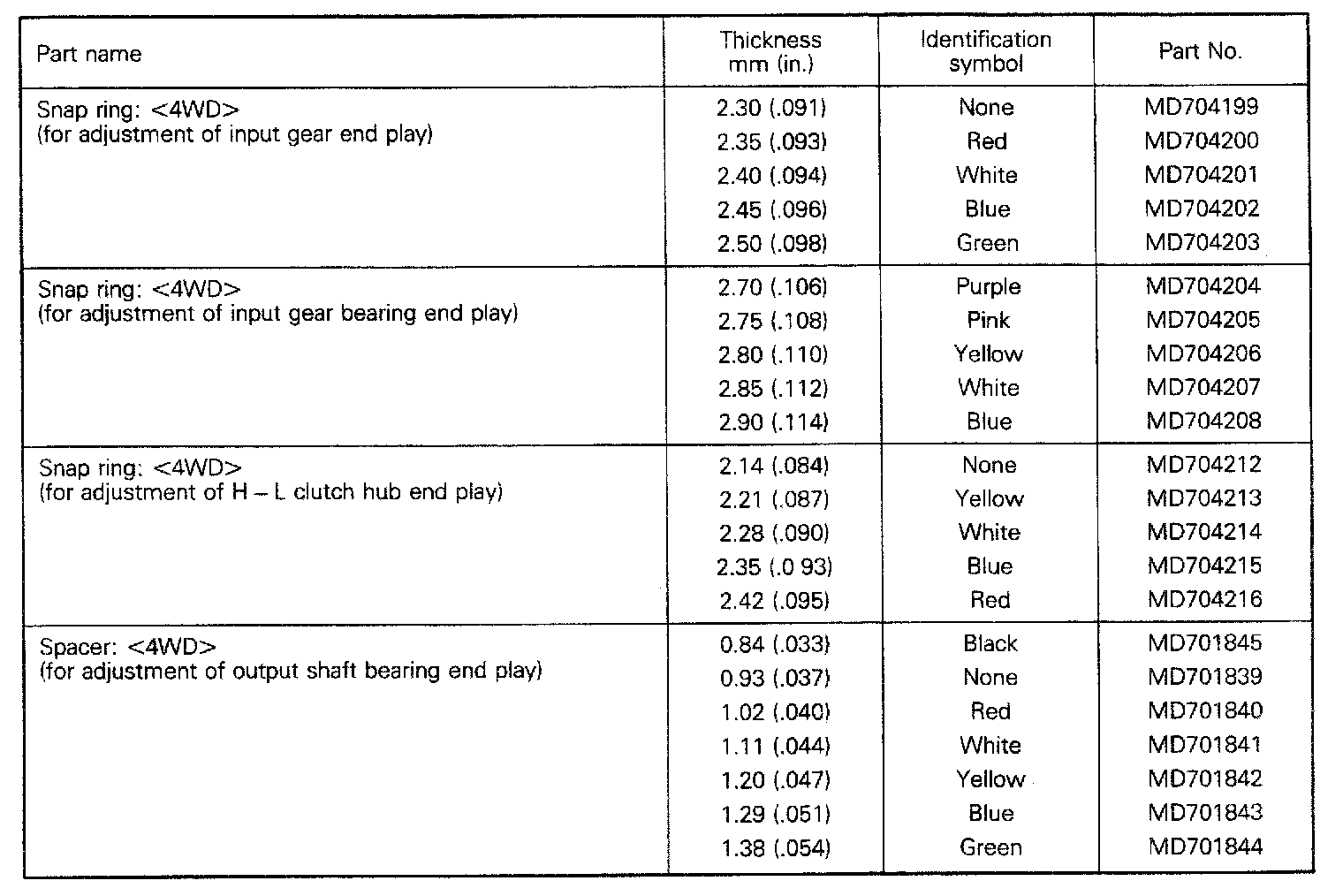

R5M21/V5MT1 5-spd M/T, Input Gear, Clutch, Output Shaft End Play:

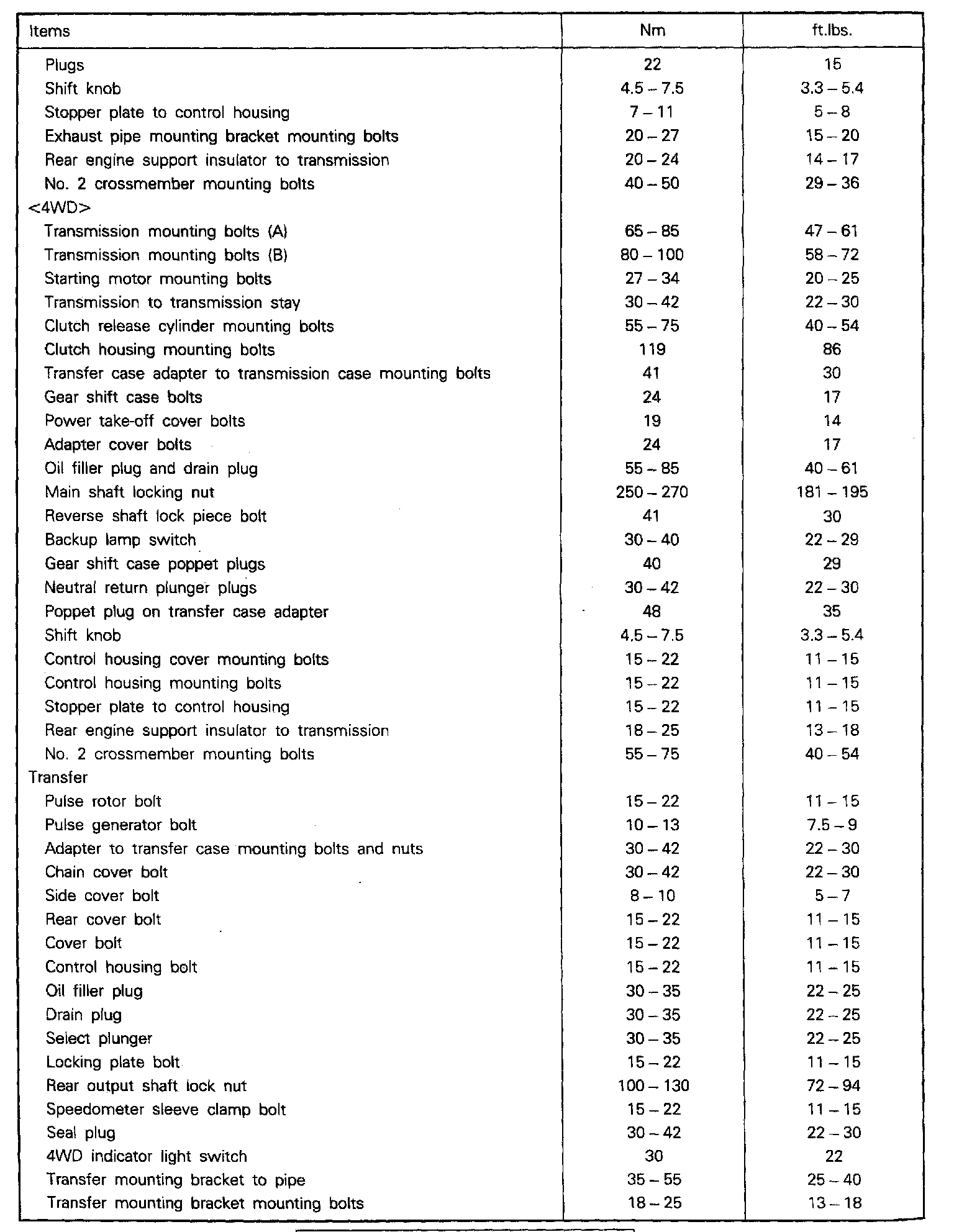

R5M21/V5MT1 5-spd M/T, Transmission Torque:
