Engine Controls - Idle Position Switch Terminal Revision

NO.: TSB-92-13-008
DATE: August, 1992
MODEL: 1992 Galant

[TSB Revision TSB-92-13-008]

SUBJECT:
DOHO IDLE POSITION SWITCH TERMINAL - SERVICE MANUAL REVISION

PURPOSE

This bulletin revises the DOHO Idle Position Switch terminal numbers for 1992 Galant vehicles. As shown below please make the indicated service manual revisions and as reference to this Technical Service Bulletin, please write this TSB number in the TSB Revision box on the affected service manual page.

AFFECTED SERVICE MANUAL

1989-1992 Galant, Page 13-190

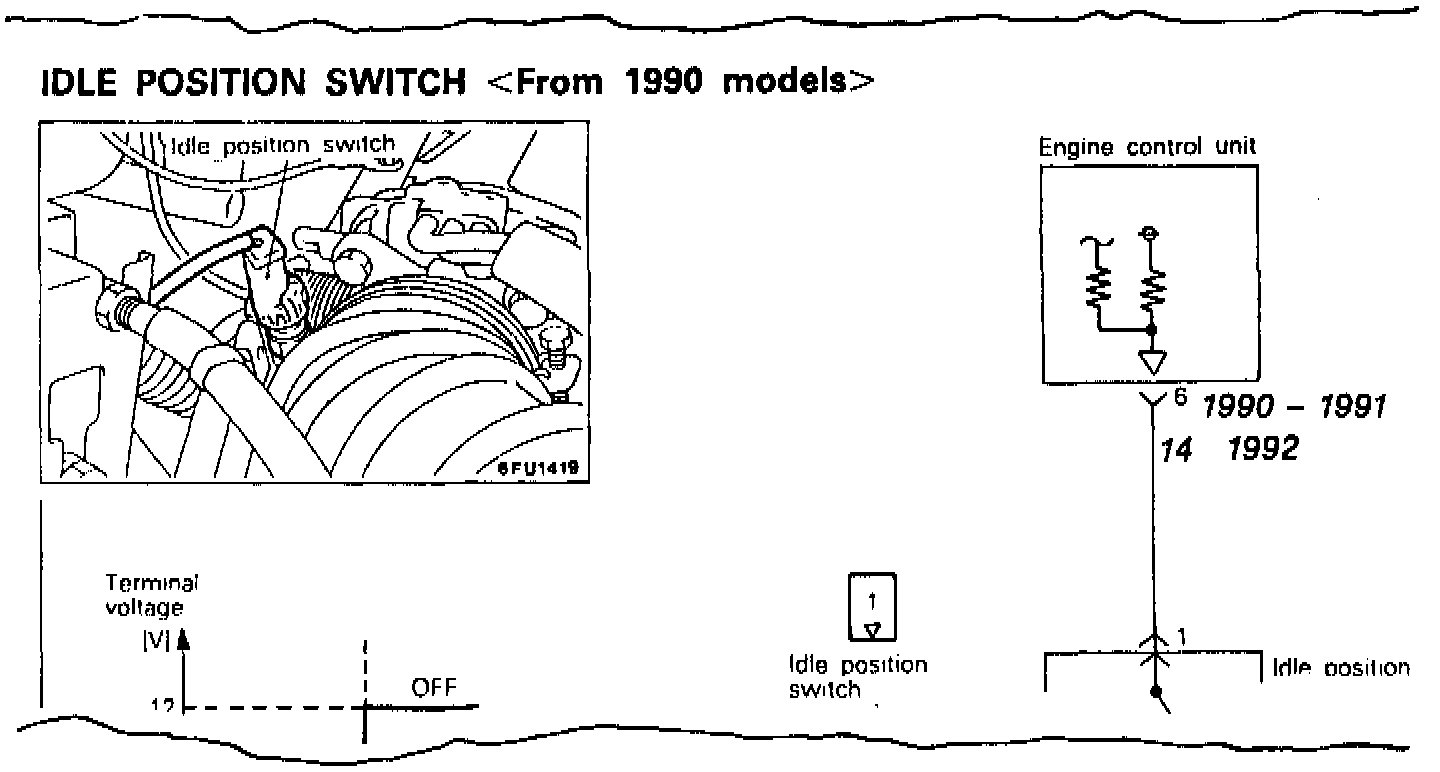

SERVICE MANUAL REVISION





As shown write in next to the 6 "1990 - 1991" and "14 1992"
