Removal And Installation Steps

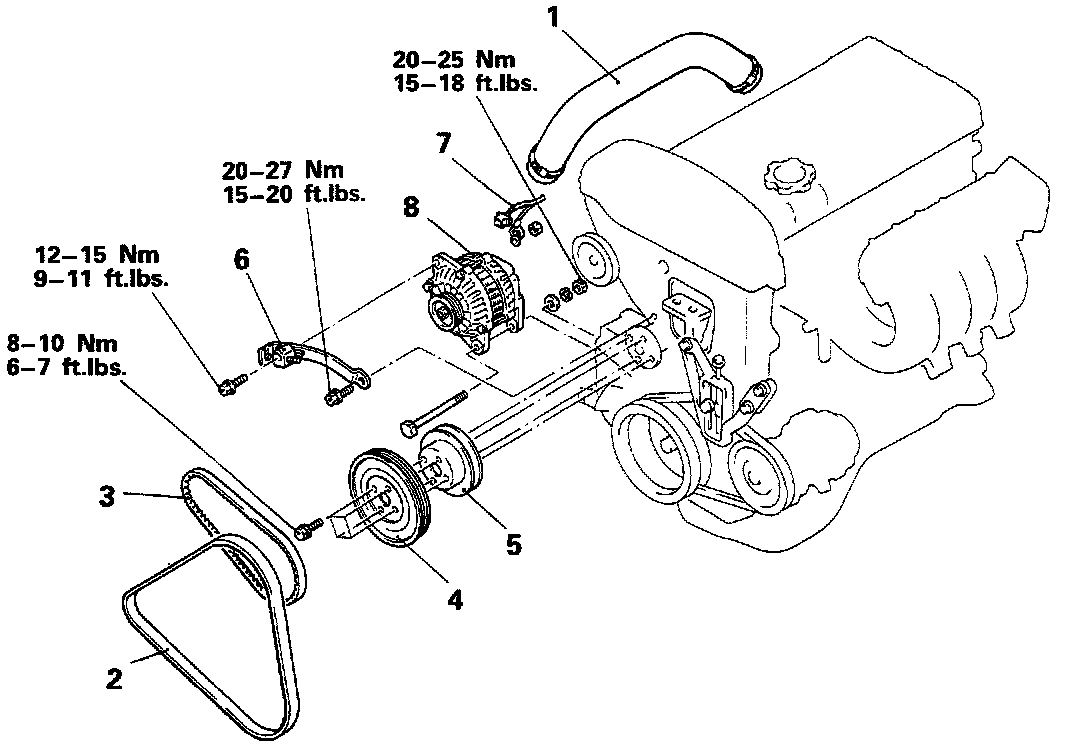

Removal steps)

1. Air hose A (Turbo)
2. Drive belt
3. Drive belt (Power steering)
4. Water pump pulley
5. Water pump pulley
6. Generator brace assembly
7. Generator connector connection
8. Generator

SERVICE POINTS OF REMOVAL

REMOVAL OF GENERATOR

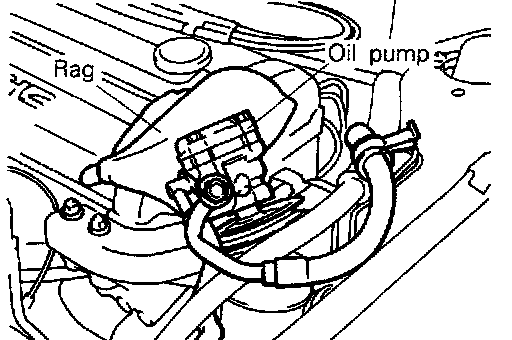

(1) Remove the installation bolt of the power steering oil pump, and hold the oil pump above the engine mount bracket. Use rags, etc. to prevent scarring or scratching of the rocker cover.

NOTE: Do not disconnect the oil pump hose.






(2) With the generator facing as shown in the figure, remove upward.
