Throttle Full Close Switch: Description and Operation
Idle Switch / Motor Position Sensor Locations:

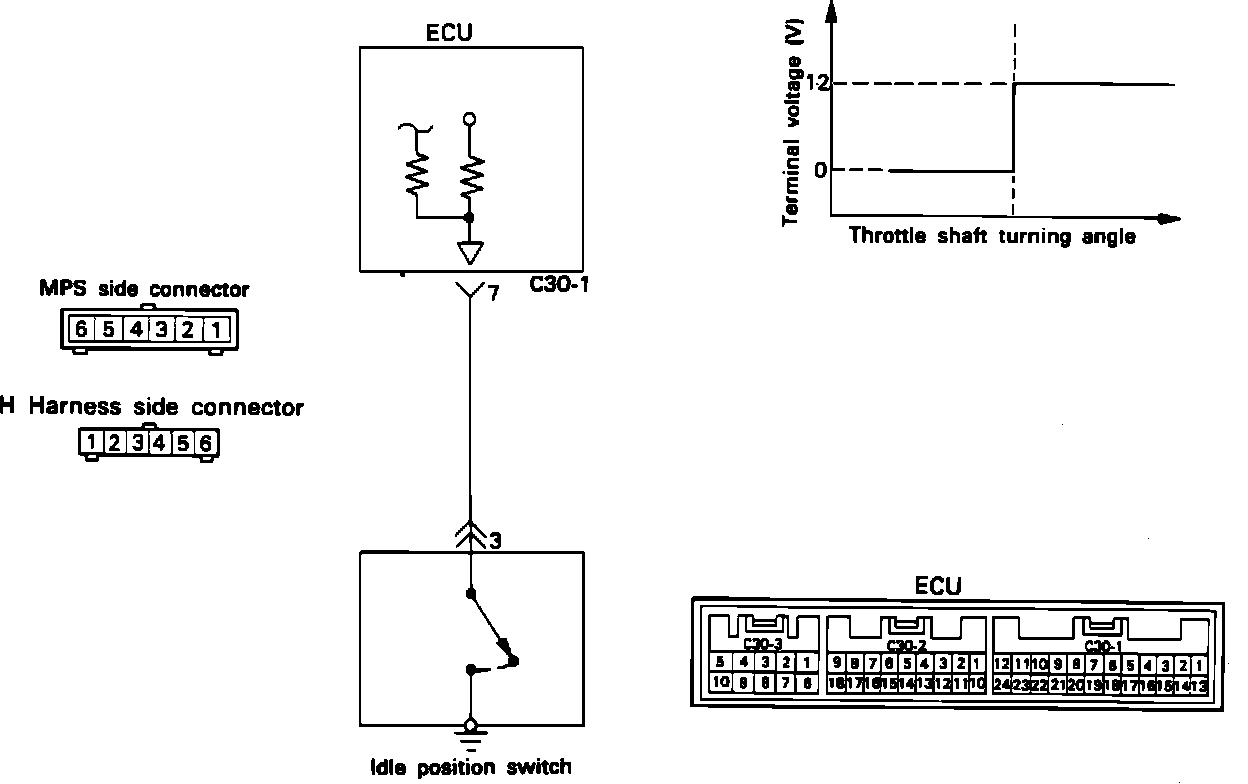

Idle Switch System:
The Idle Switch, is a contact type switch. It senses of idle operation. The switch is installed at the tip of the Idle Speed Control (ISC) servo. When the throttle valve is in the idle position, the ISC lever pushes the pin and closes the contact.
