Component Tests and General Diagnostics

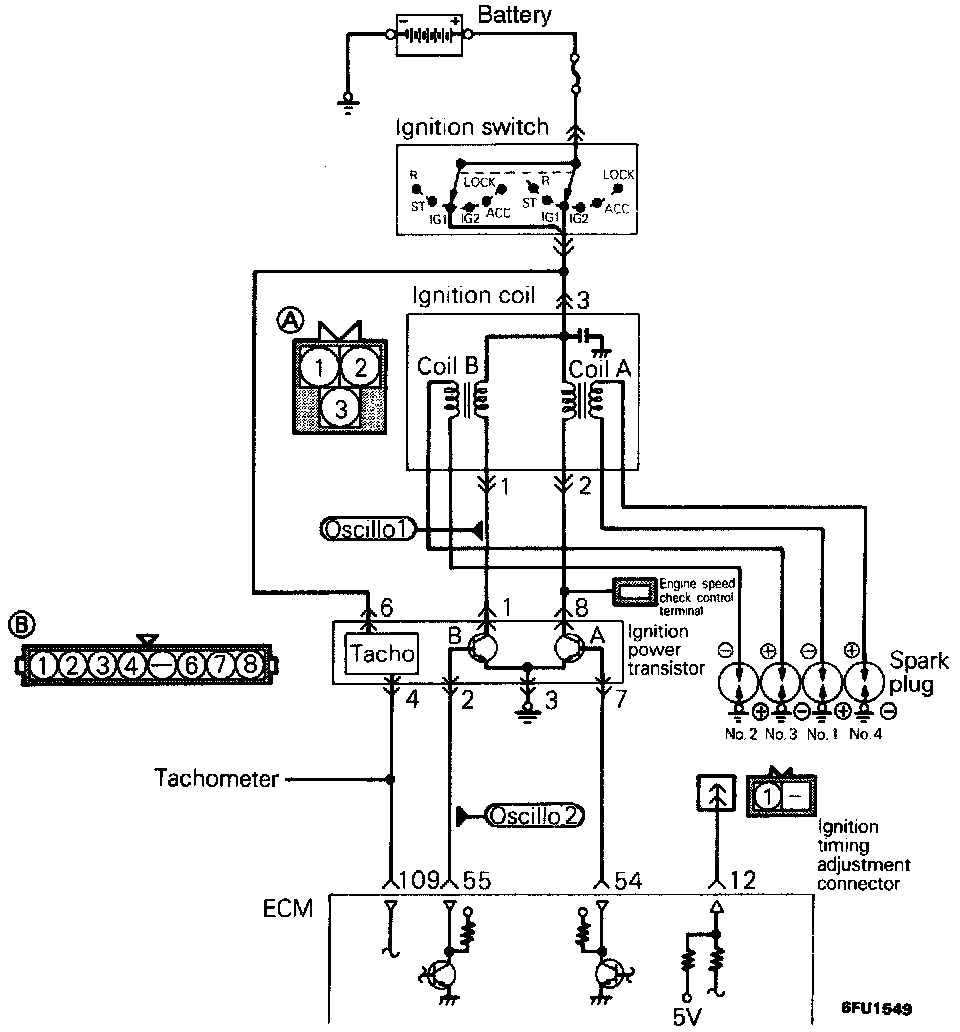

CIRCUIT DIAGRAM





USING SCAN TOOL























HARNESS INSPECTION PROCEDURES





1. Primary signal of ignition coil
- Run the engine at an idle revolution speed.
- Connect the probe to oscilloscope pick-up point 1 as shown in the circuit diagram, and check the primary signal of the ignition coil.

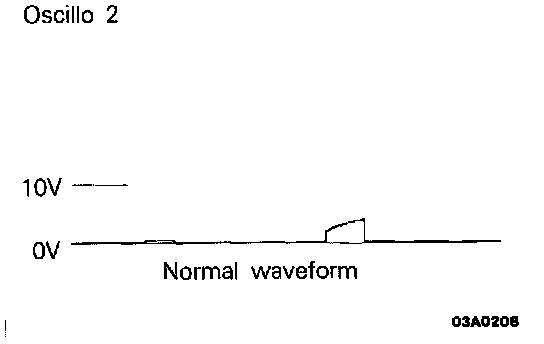

2. Control signal of ignition power transistor
Connect the probe to oscilloscope pick-up point 2 as shown in the circuit diagram, and check the control signal of the ignition power transistor.



USING OSCILLOSCOPE

TROUBLESHOOTING HINTS
A short or open wire in the ignition system will be accompanied by various problems.
