Coolant Temperature Sensor/Switch (For Computer): Description and Operation

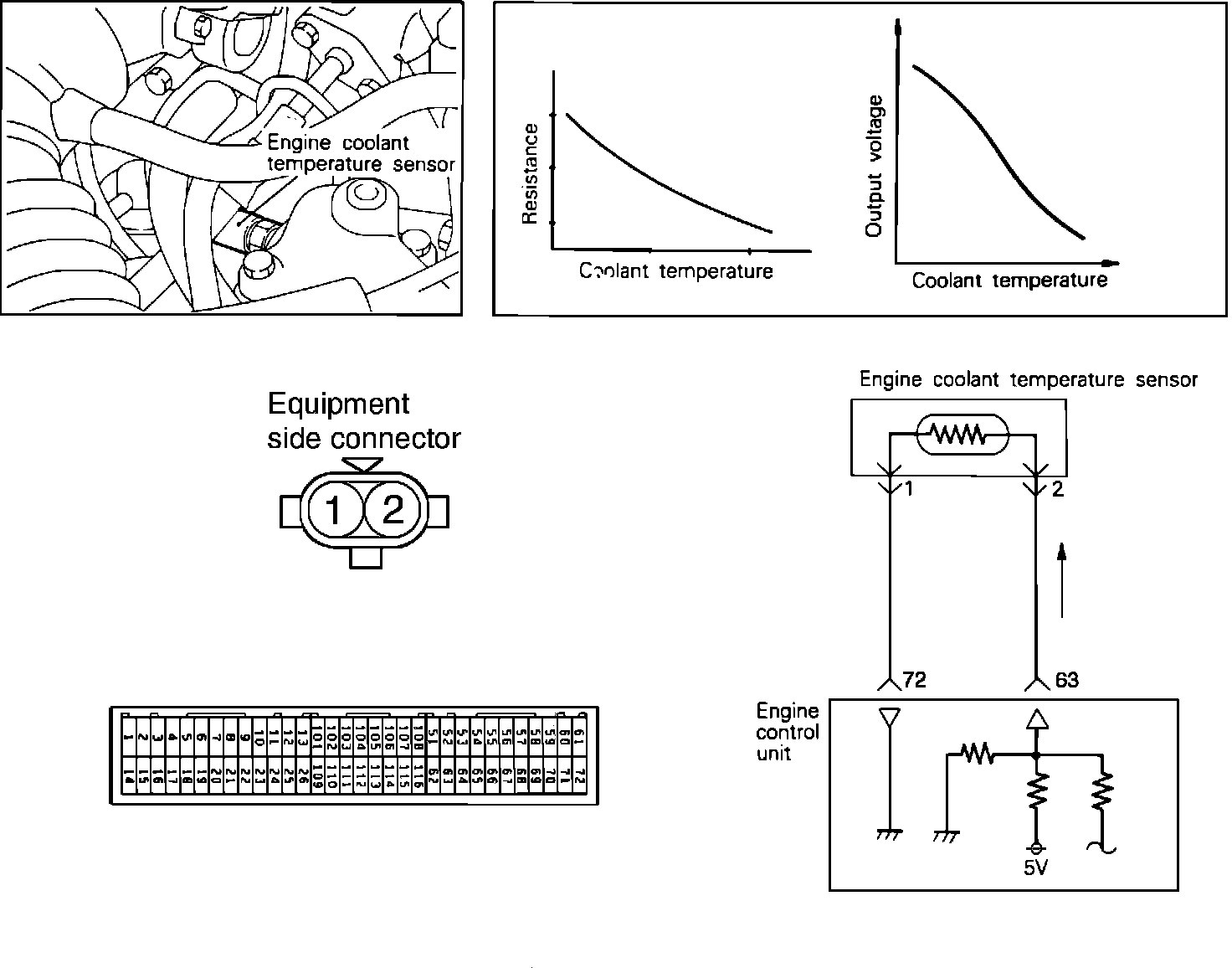

Coolant Temperature Sensor:
Engine Coolant Temperature Sensor Circuit:
OPERATION As engine temperature increases, sensor resistance decreases. The ECU monitors engine temperature by the sensor output Voltage and provides optimum fuel enrichment when the engine is cold.
CONSTRUCTION The Coolant Temperature Sensor is a thermistor type sensor.
