Intake Air Temperature Sensor Testing
1.
Disconnect the Air-flow Sensor connector.
MPI Relay Circuitry:
2.

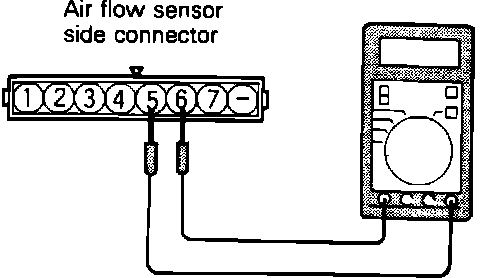

Connect an ohmmeter to terminals # 5 and # 6 of the sensor connector.
Refer to
SPECIFICATIONS/ELECTRICAL.
Heating IAT Sensor:
3.

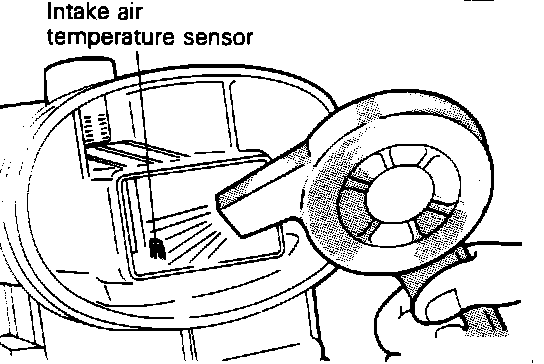

While heating the temperature sensor with a hair dryer, measure the resistance.
As the temperature increases, the resistance should decrease. Refer to
SPECIFICATIONS/ELECTRICAL.
