Intake Air Temperature Sensor

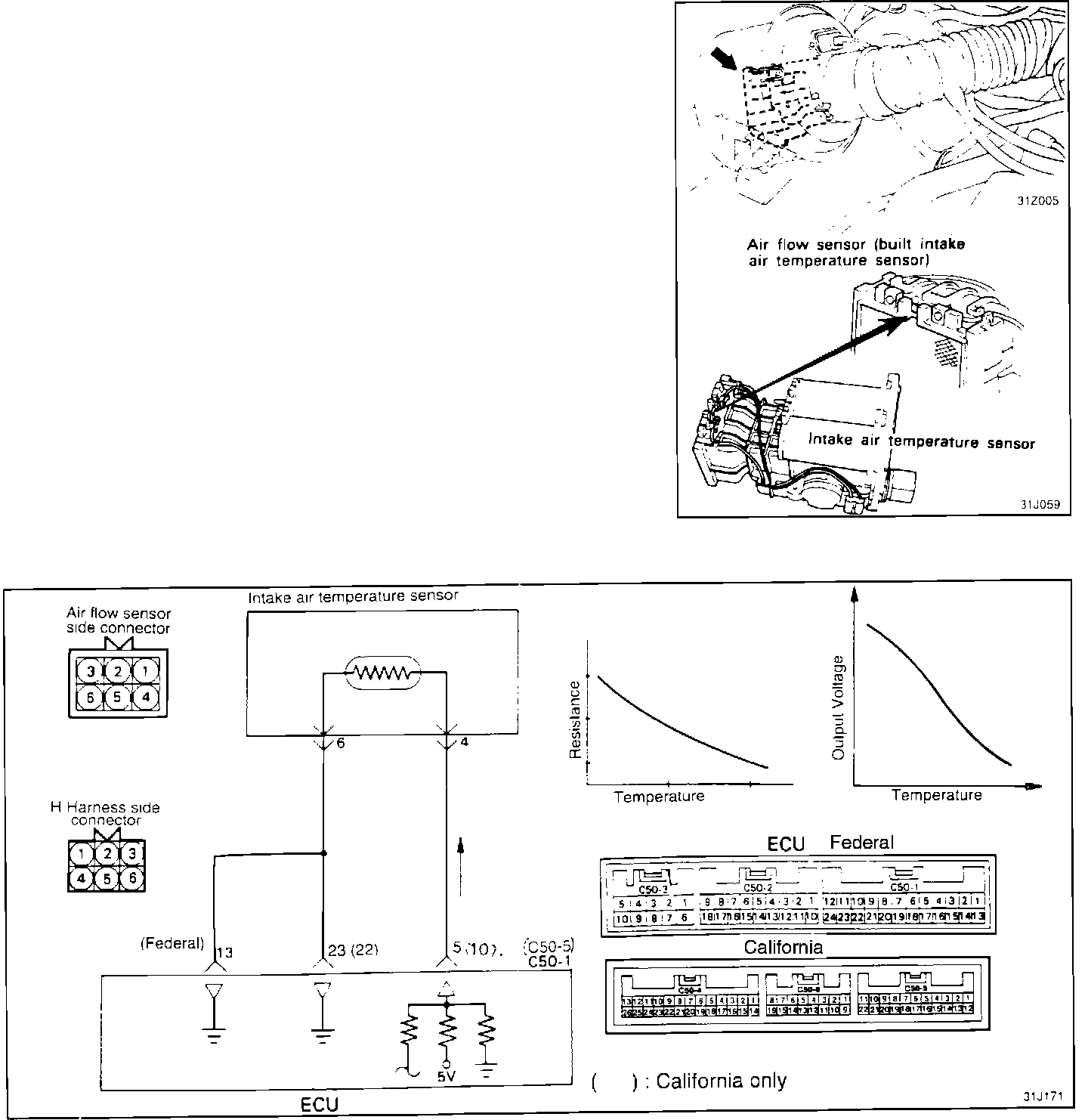

Intake Air Temperature Sensor (IAT) Circuit:
PURPOSE The
Intake Air Temperature Sensor is a thermistor that measures intake air temperature as a resistance value. The resistance of the sensor increases as temperature decreases. The ECU modifies fuel injection duration according to the intake air temperature signal.
LOCATION The
intake air temperature sensor is located on the Air Flow Sensor (
AFS).
