Throttle Position Switch: Description and Operation

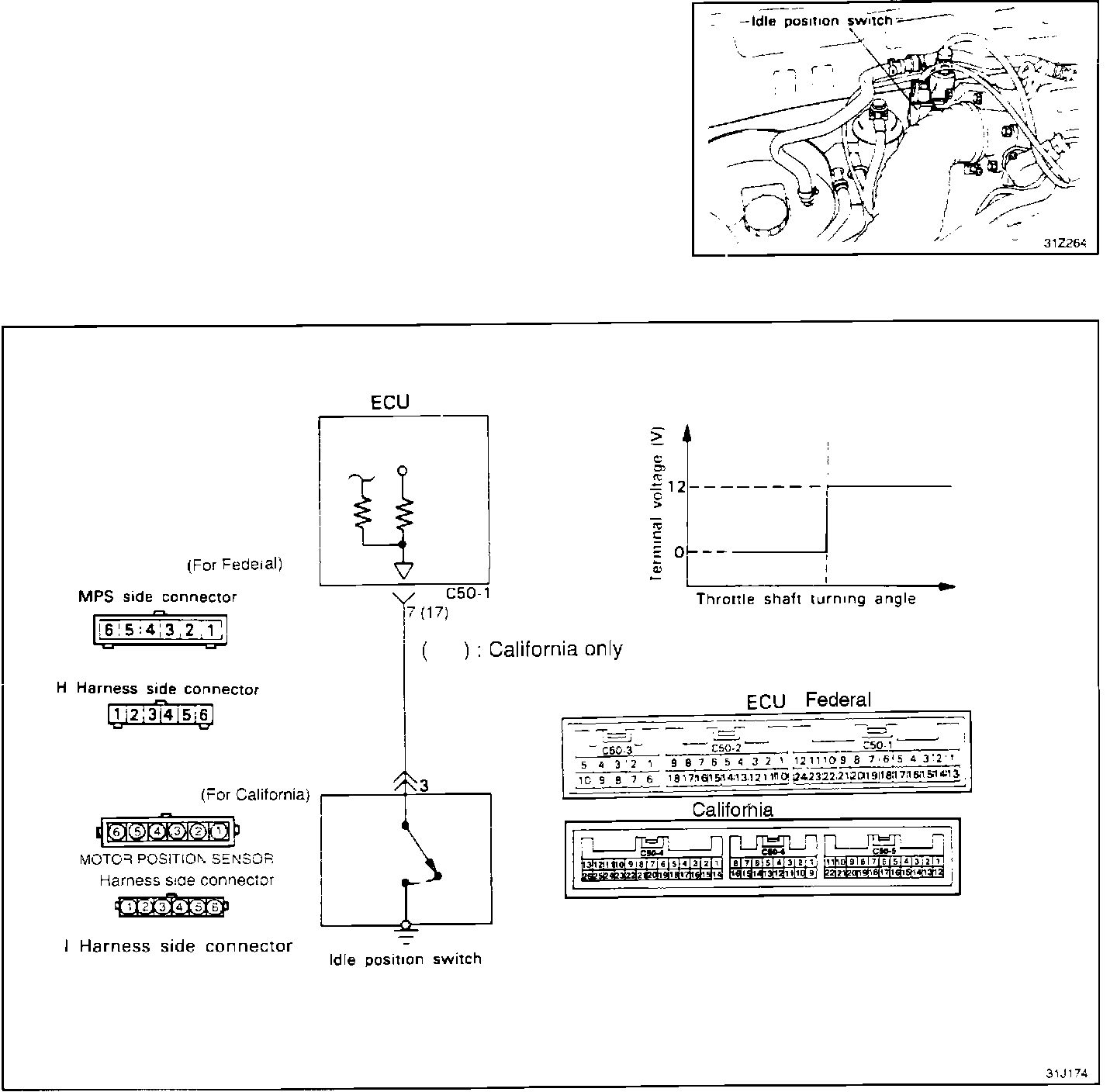

Idle Position Switch:
PURPOSE The Idle Position Switch, is a contact type switch. It senses accelerator operation.
LOCATION It is incorporated in the motor position sensor.
OPERATION When the throttle valve is in the idle position, the contact in the switch is closed.
