Sensor Inspection
1.
Disconnect the
throttle position sensor connector.
2.

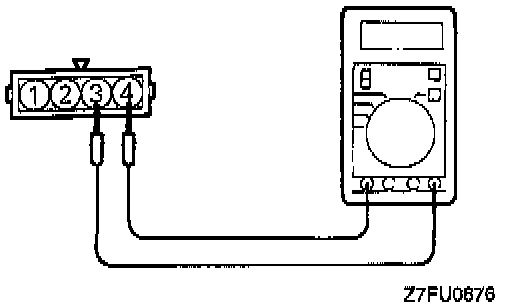

Check the continuity between the
throttle position sensor connector side terminal No. 3 and terminal No. 4.
3.
If out of specification, replace the
throttle position sensor.
NOTE: After replacement, the

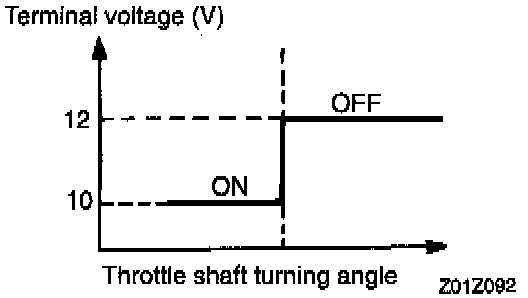

throttle position sensor and closed throttle position switch should be adjusted.
