Component Tests

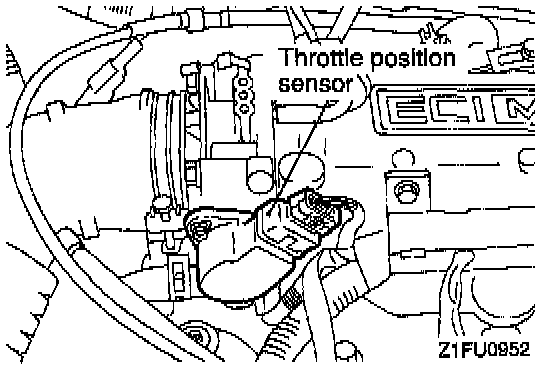

1. Disconnect the throttle position sensor connector.

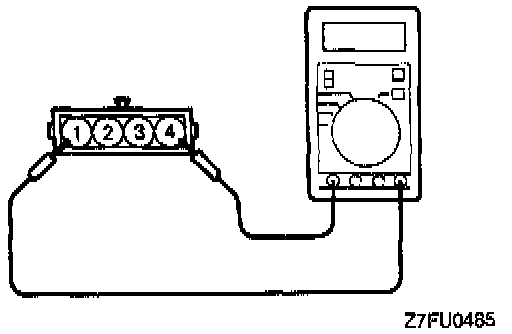

2. Measure the resistance between the throttle position sensor side connector terminal No. 1 and terminal No. 4.

Standard value: 3.5 - 6.5 K Ohms

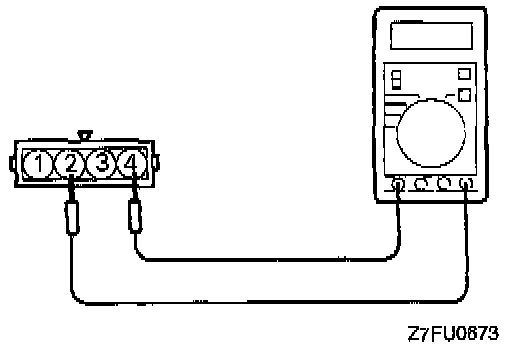

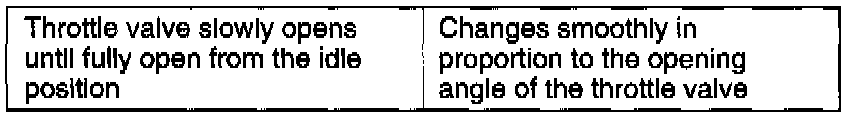

3. Measure the resistance between the throttle position sensor side connector terminal No. 2 and terminal No. 4.

4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.
