Computer Connector

Foreword
Connectors which are loose shall be rectified by removing the female terminal from connector housing and raising its lance to establish a more secure engagement. Removal of connector terminal used for MFI and 4 A/T control circuit shall be done in the following manner:

Computer Connector:

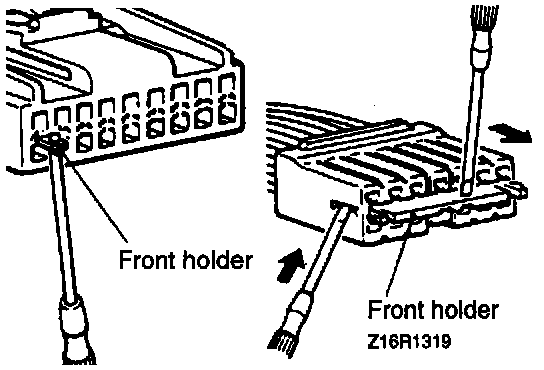

1. Insert screwdriver [1.4 mm (0.06 in.) width] as shown in the figure, disengage front holder and remove it.

Computer Connector:

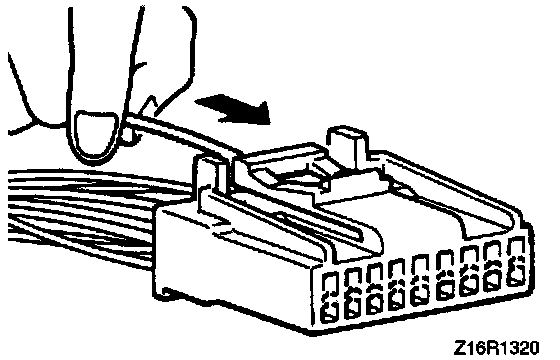

2. Insert harness of terminal to be rectified deep into connector from harness side and hold it there.

Computer Connector:

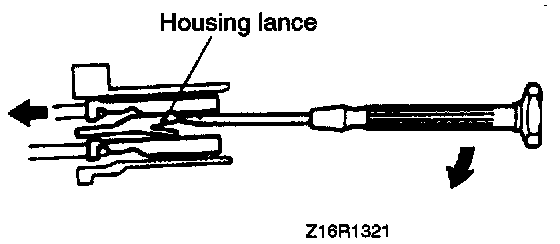

3. Insert tip of screwdriver [1.4 mm (0.06 in.) width] into connector in a manner as shown in the figure, raise housing lance slightly with it and pull out harness.

CAUTION: Tool No. 753787-1 supplied by AMP can be used instead of screwdriver.

Computer Connector:

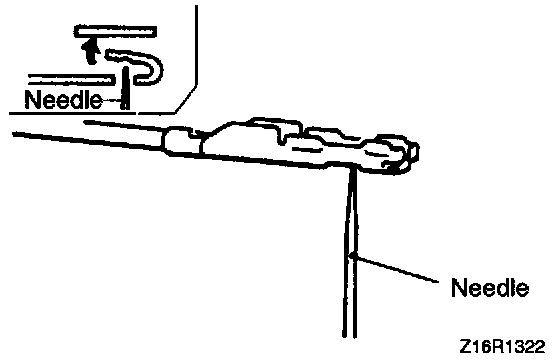

4. Insert needle through a hole provided on terminal and raise contact point of male terminal.
