Installation Service Point

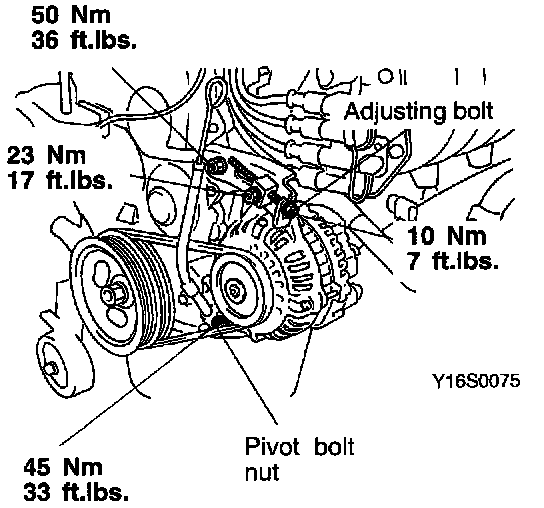

Generator Installation/ Generator/ Brace/ Drive Belt (Generator):





1. Install the generator to the cylinder block and front case mounting boss with the pivot bolt, and provisionally tighten the nut to still allow the generator to move smoothly.
2. Insert the generator brace between the power steering oil pump bracket and the water pump, and tighten it to the specified torque.
3. Press the generator body towards the engine, and provisionally tighten the generator and generator brace with the lock bolt.
4. Install the generator drive belt and adjust the belt tension using the adjusting bolt.
5. After adjusting the belt tension, fully tighten the nut of the pivot bolt and the lock bolt to the specified torque, and then tighten the adjusting bolt to the specified torque.

Generator Installation/ Generator/ Brace/ Drive Belt (Generator):





1. Install the generator to the front case mounting boss with the pivot bolt, and provisionally tighten the nut to still allow the generator to move smoothly.
2. Install the generator brace to the water pump, and tighten it to the specified torque.
3. Press the generator body towards the engine, and provisionally tighten the generator and generator brace with the lock bolt.
4. Install the generator drive belt and adjust the belt tension using the adjusting bolt.
5. After adjusting the belt tension, fully tighten the nut of the pivot bolt and the lock bolt to the specified torque, and then tighten the adjusting bolt to the specified torque.
