Automatic Transmission/Transaxle

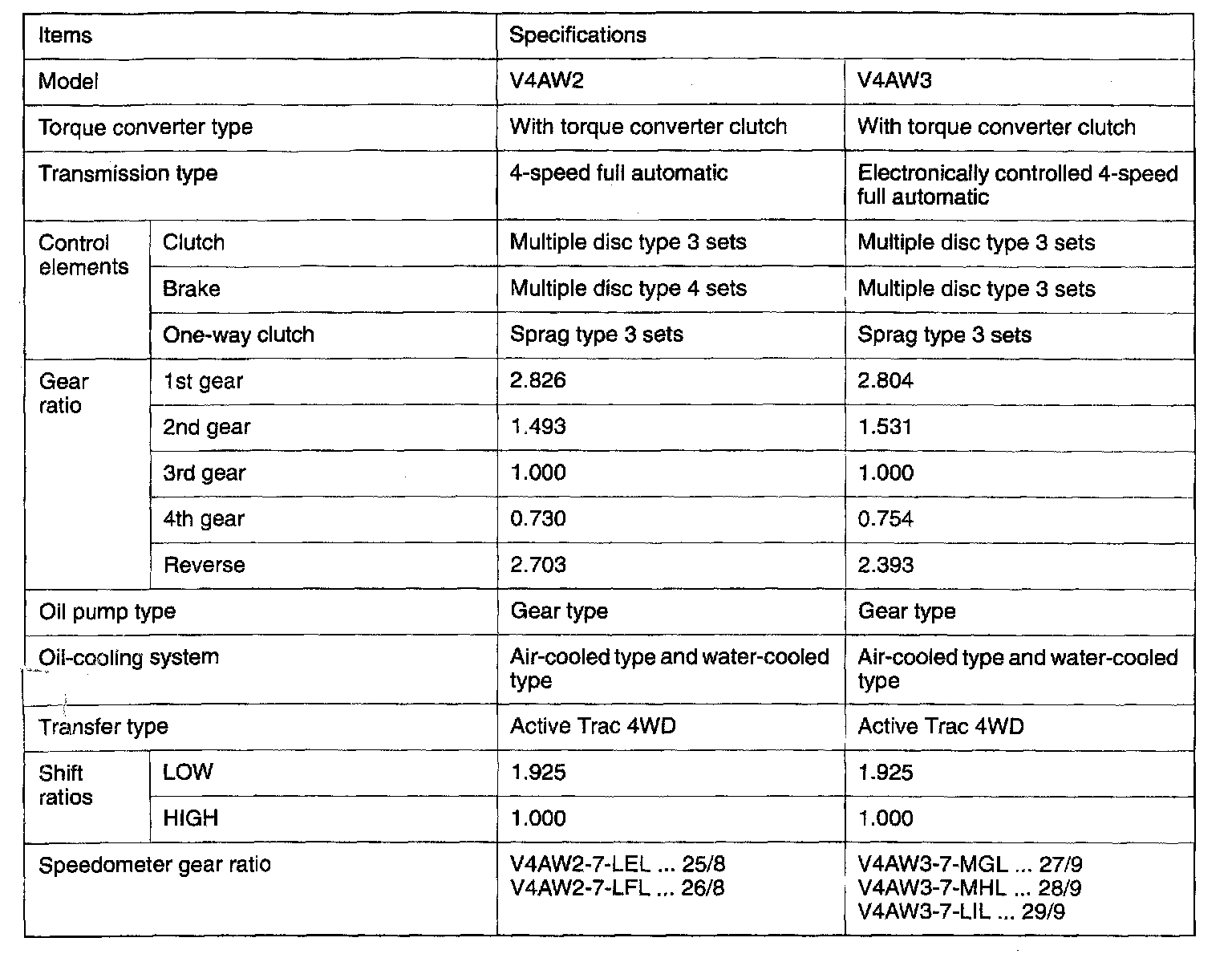

V4AW2/V4AW3 4-spd A/T, Gear Ratios:





V4AW2/V4AW3 4-spd A/T, Line & Governor Pressure:
