Cruise Control: Service and Repair

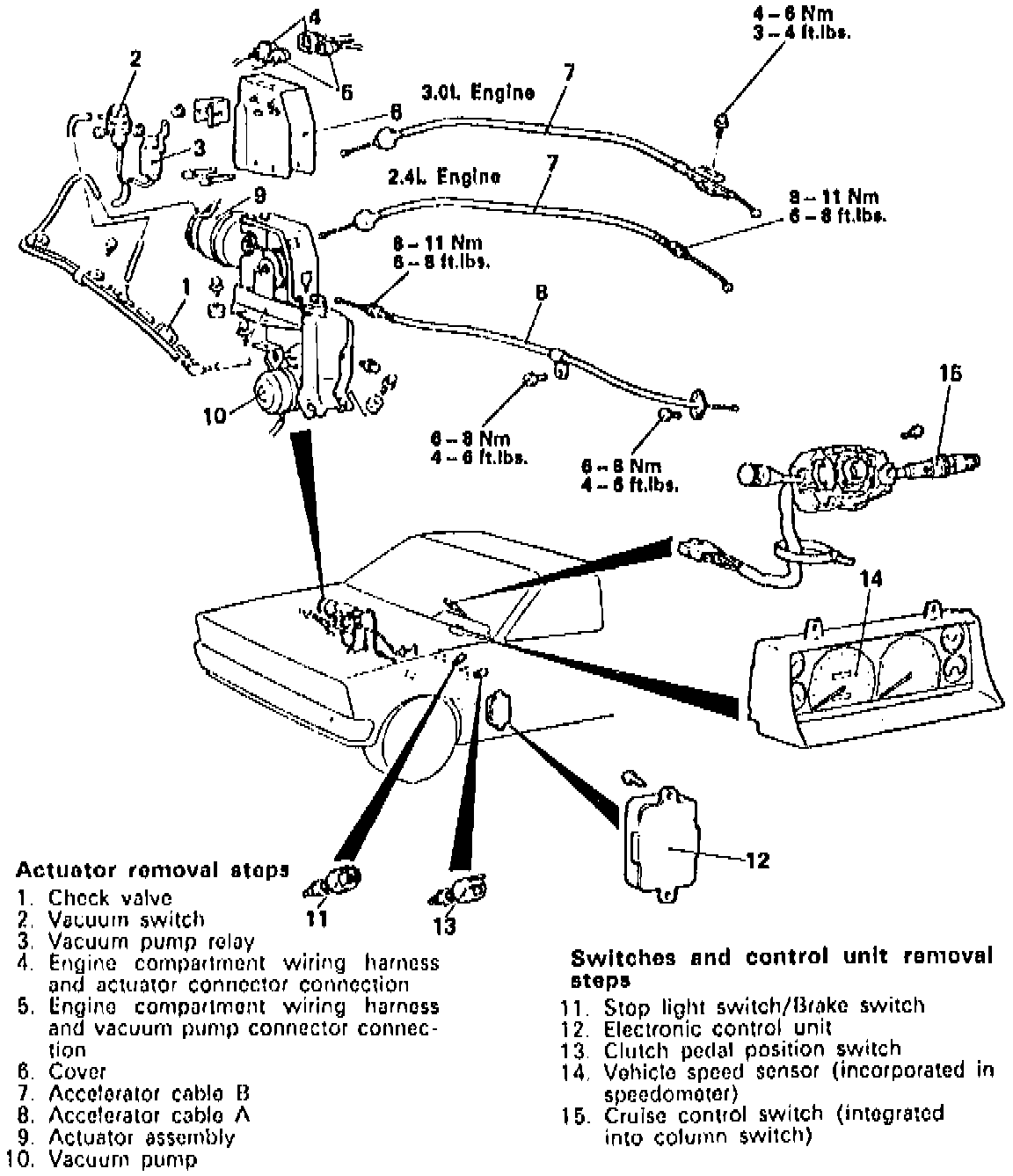

Fig. 42 Speed Control Component Replacement:
Refer to numbered sequences shown in
Fig. 42
for component replacement.
