Cruise Control: Testing and Inspection

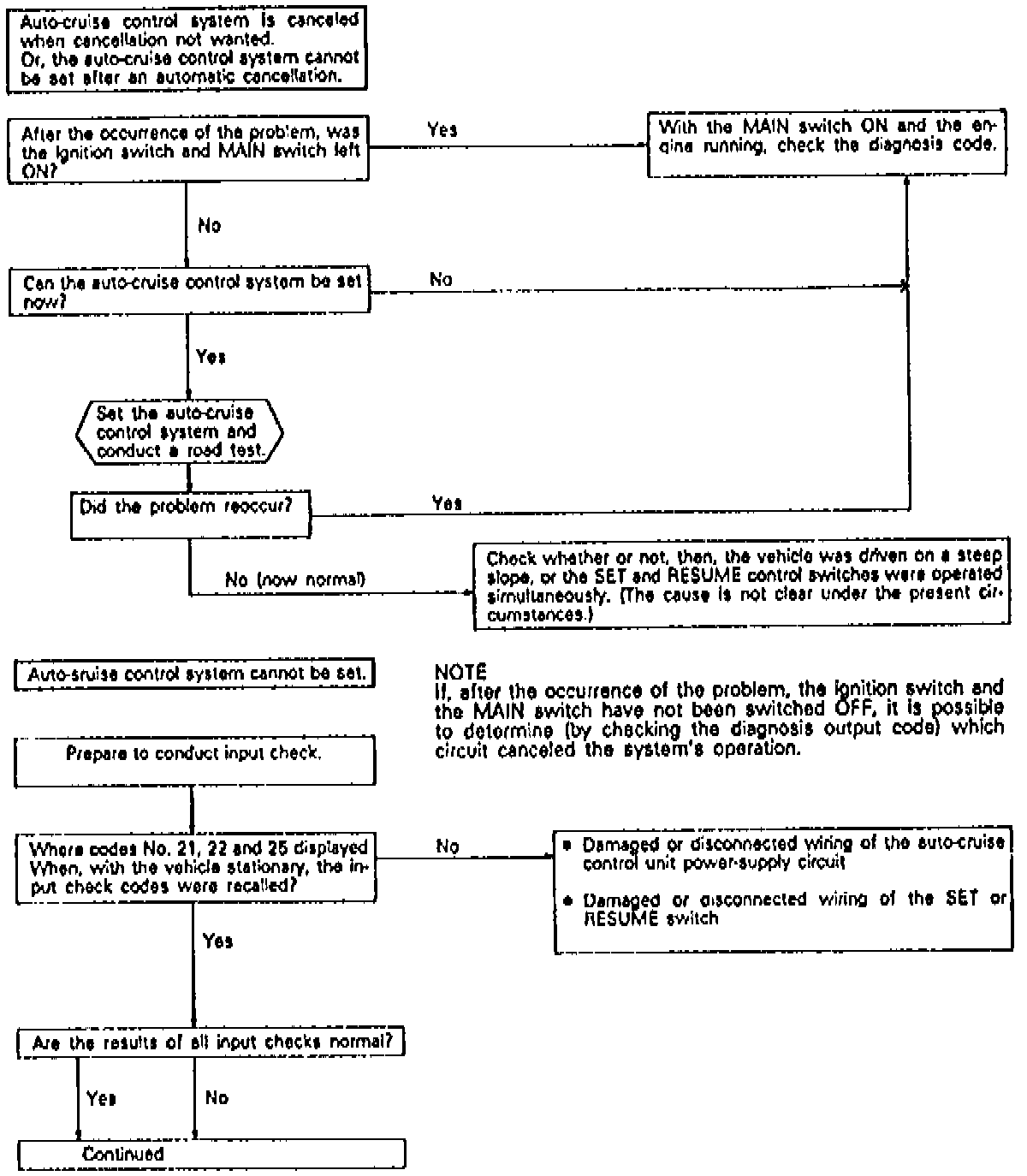

Fig. 3 Troubleshooting (Part 1 Of 3):

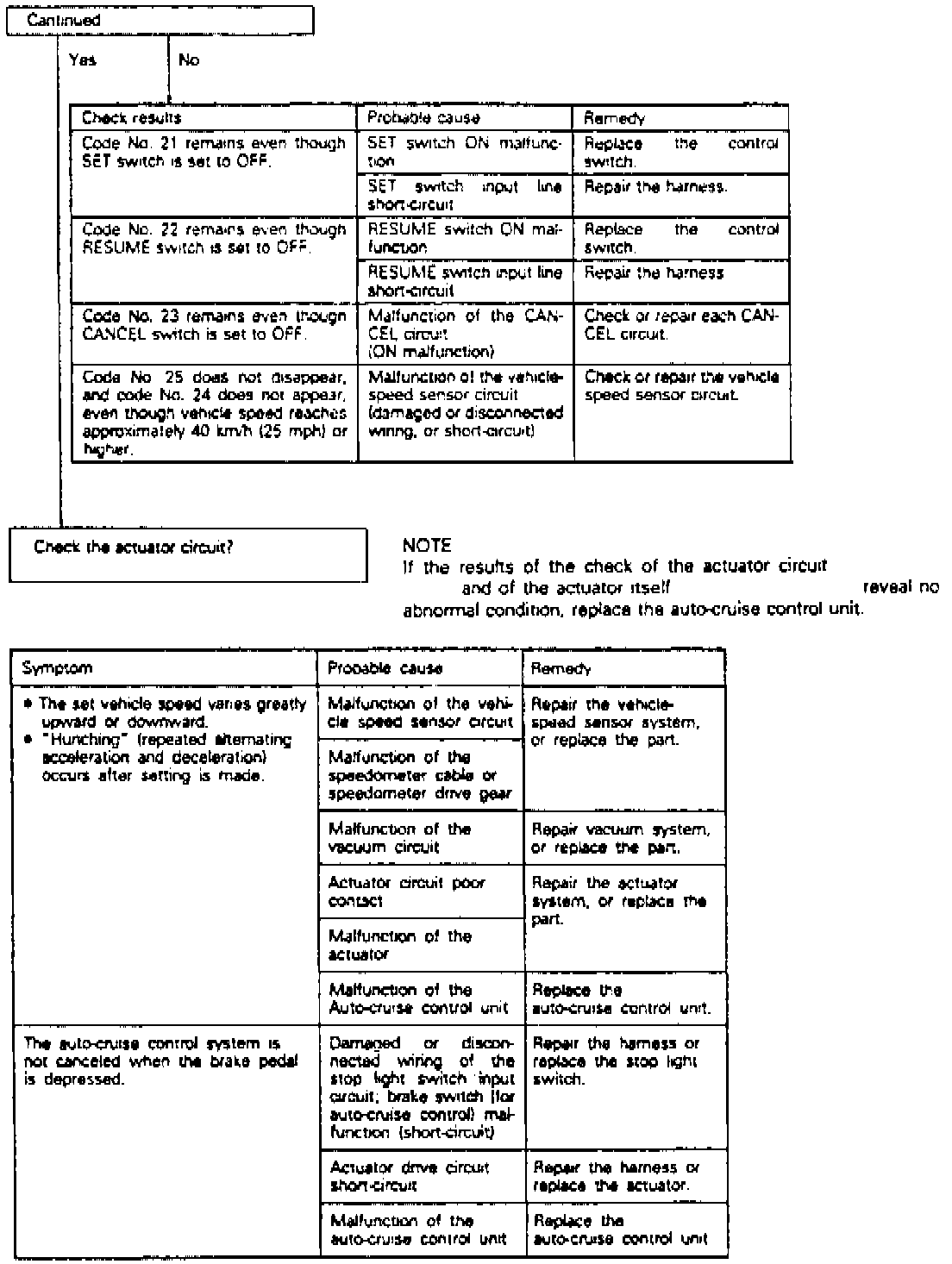

Fig. 3 Troubleshooting (Part 2 Of 3):

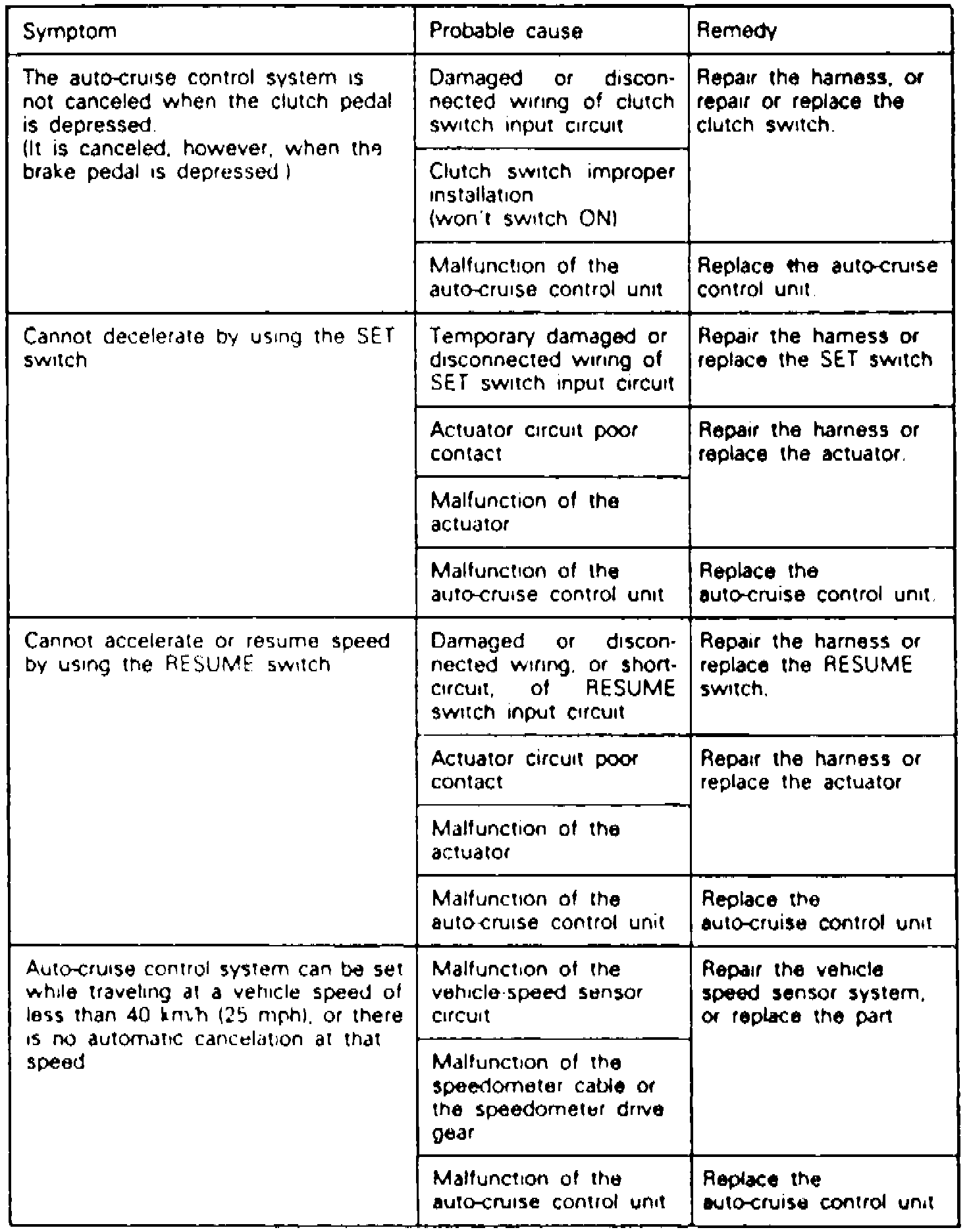

Fig. 3 Troubleshooting (Part 3 Of 3):

Refer to Fig. 3 when troubleshooting the speed control system.
