Federal

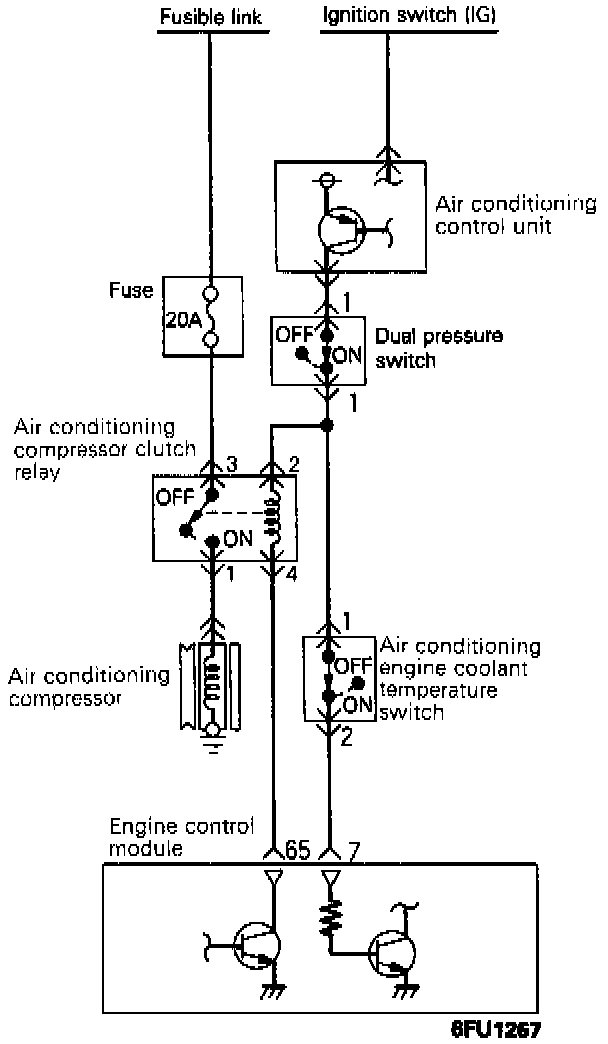

CIRCUIT DIAGRAM

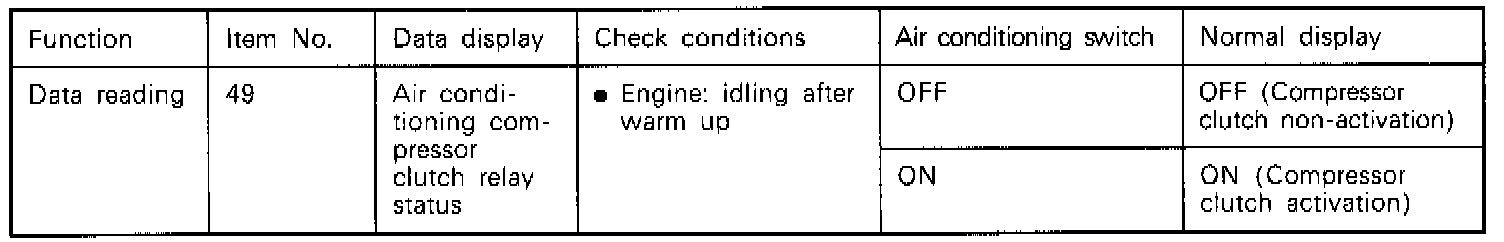

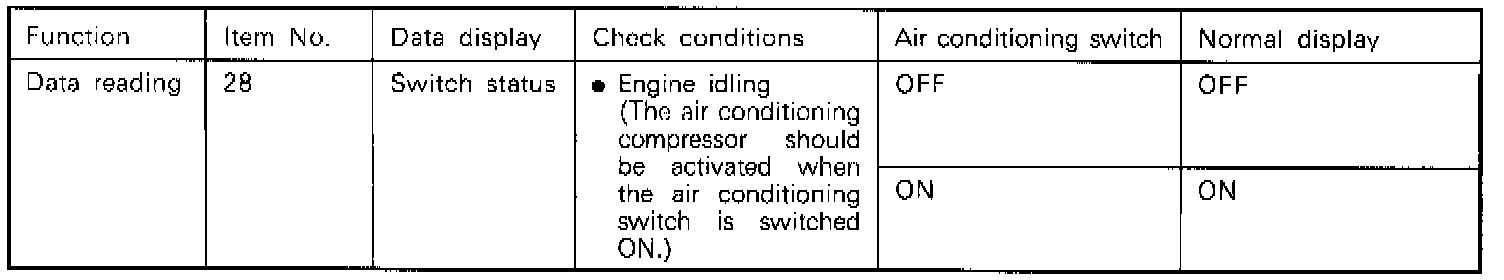

INSPECTION USING SCAN TOOL

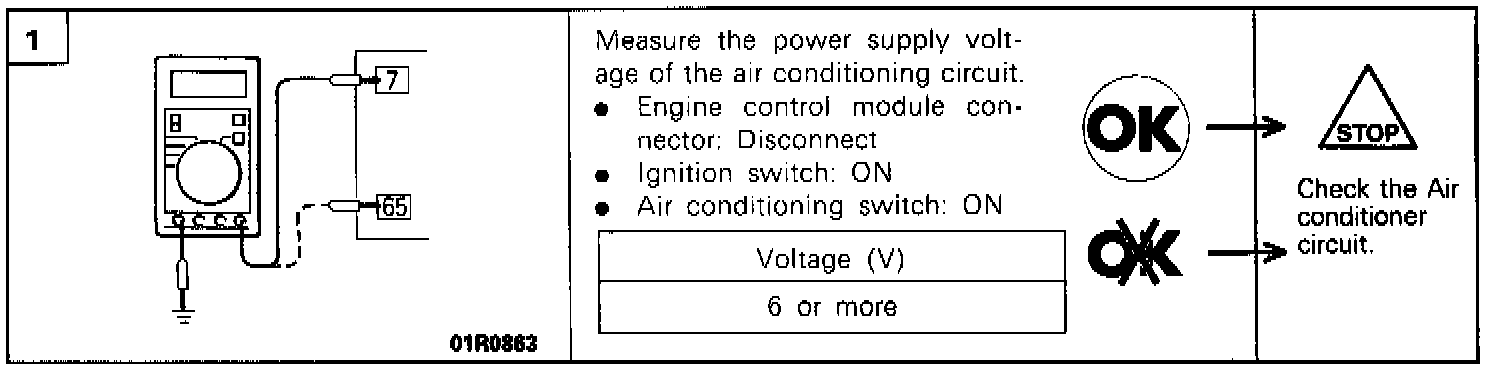

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
1. If the air conditioning compressor's magnetic clutch is not activated when the air conditioning switch is switched ON during idling, it is probable that the cause is a malfunction of the air conditioning control system.
