California

COMPONENT LOCATOR

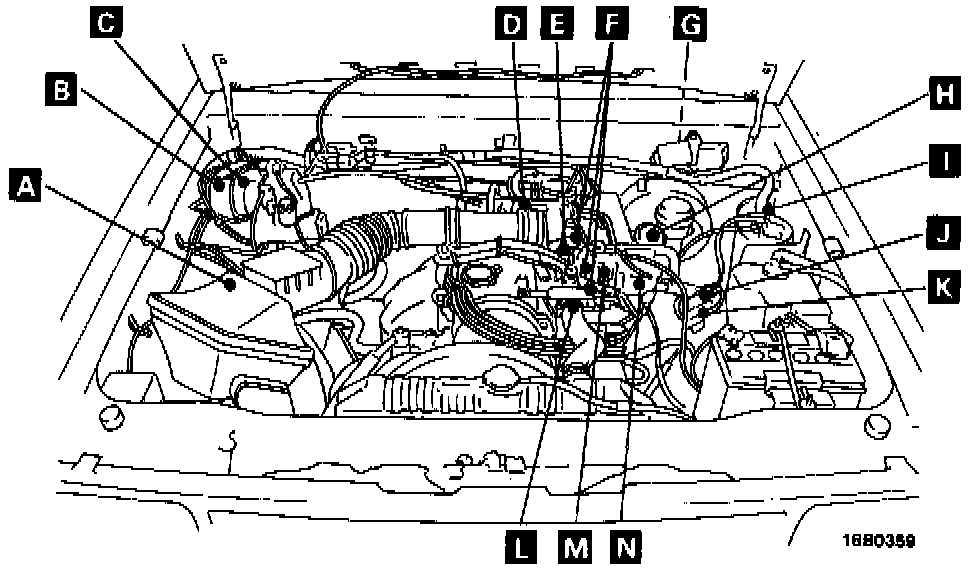

Engine Compartment





Name Symbol

Volume air flow sensor A
Intake air temperature sensor A
Barometric pressure sensor A
Ignition timing adjustment terminal B
Fuel pump check terminal C
Idle air control motor D
Throttle position sensor E
Closed throttle position switch E
Injector F
Park/Neutral position switch G
EGR temperature sensor H
Air conditioning compressor clutch relay I
Evaporative emission purge solenoid J
EGR solenoid K
Engine coolant temperature sensor L
Ignition coil M
Power Transistor M
Crankshaft & camshaft position sensor N

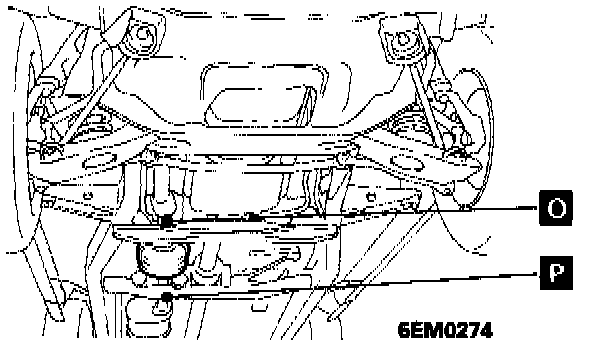

Heated oxygen sensor O
Heated oxygen sensor P

Instrument Panel

Name Symbol

Check engine/malfunction indicator lamp Q
Vehicle speed sensor R
Air conditioning switch S
Data link connector T
Engine control module U
Multiport fuel injection relay V
