California

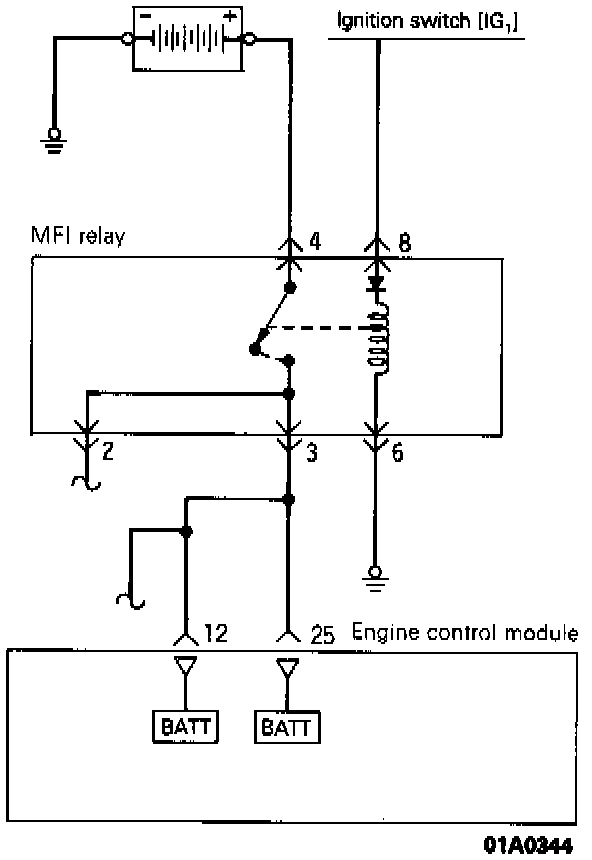

CIRCUIT DIAGRAM





INSPECTION USING SCAN TOOL

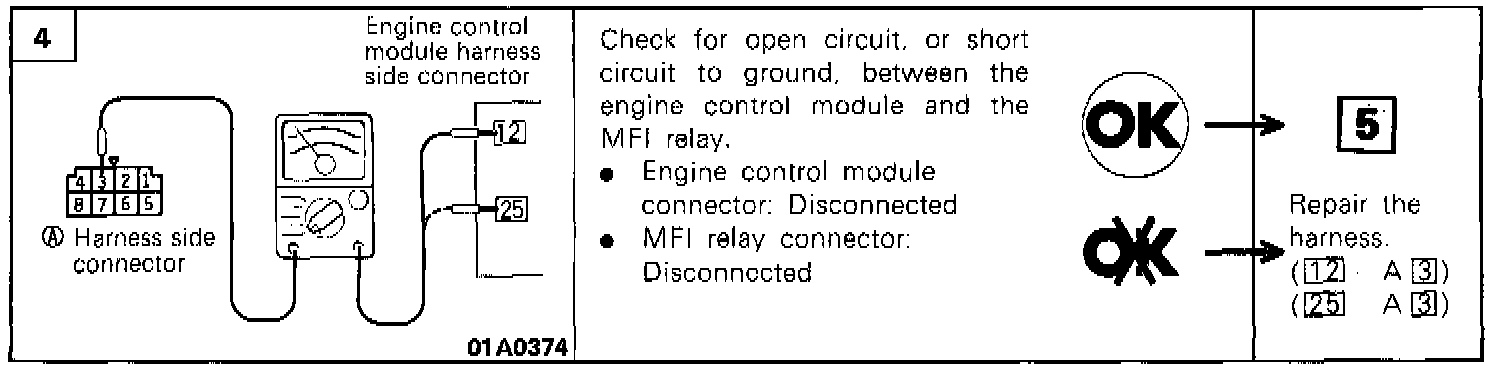

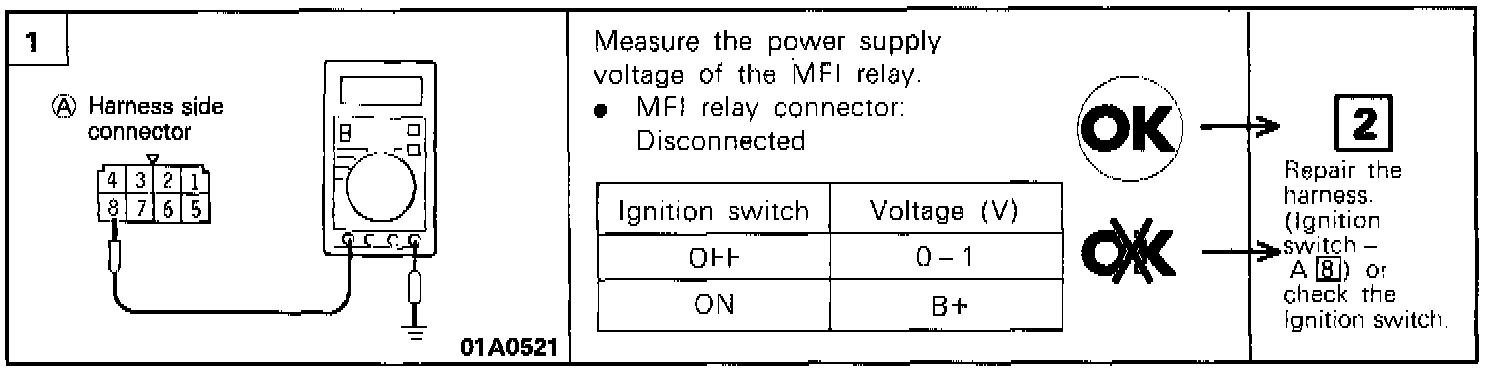

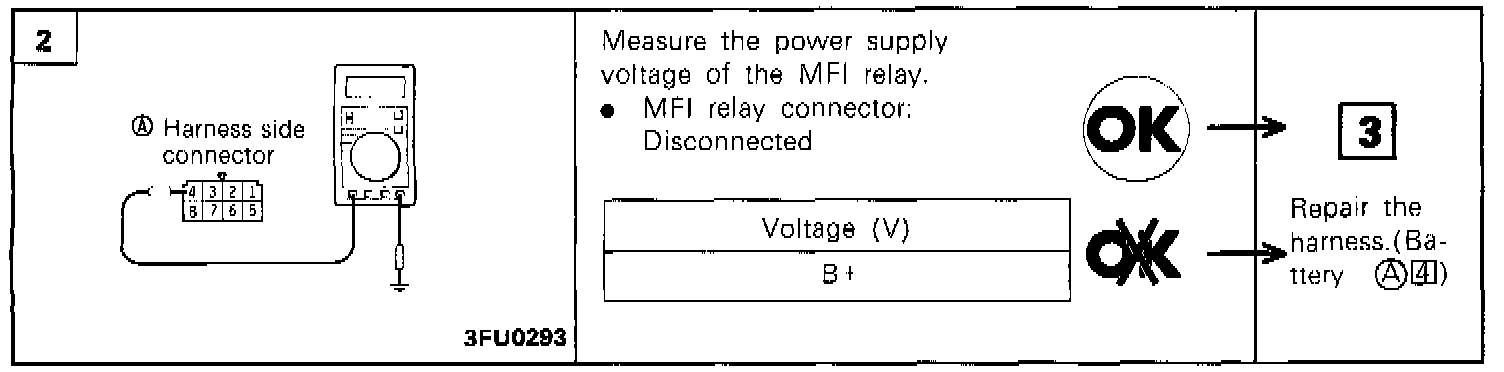

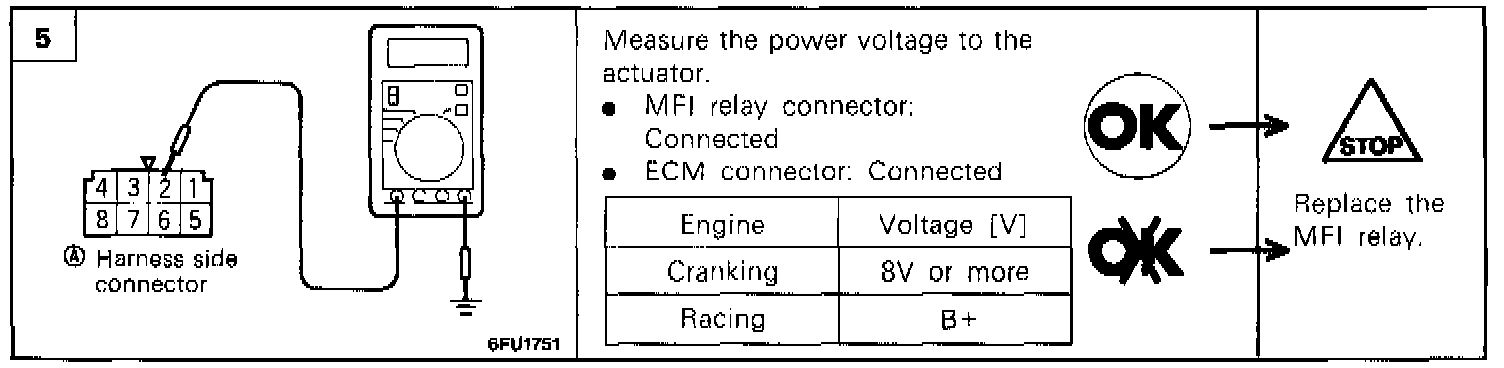

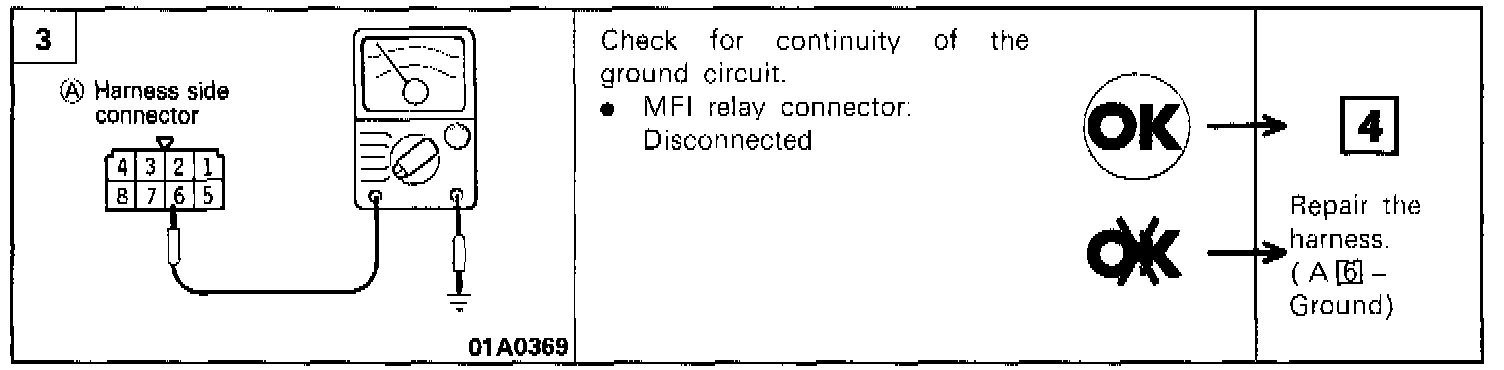

HARNESS INSPECTION PROCEDURE

COMPONENT TEST PROCEDURE
1. Remove the multiport fuel injection relay.

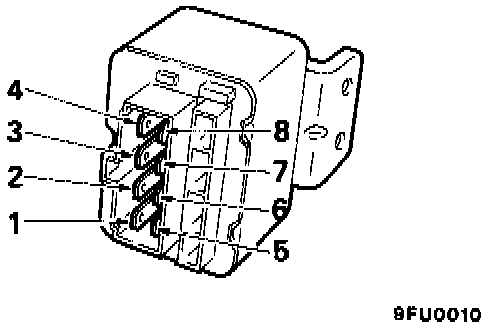

2. Check the continuity between the multiport fuel injection relay terminals.

Terminals 5 - 7 Continuity (approximately 90 Ohms)
Terminals 6 - 8 Continuity in one direction only





3. By using the jumper wire, connect the terminal 7 of the multiport fuel injection relay to (+) terminal of the battery and the terminal 5 to (-) terminal of the battery.

CAUTION: If jumper leads are not connected properly the relay will be damaged.

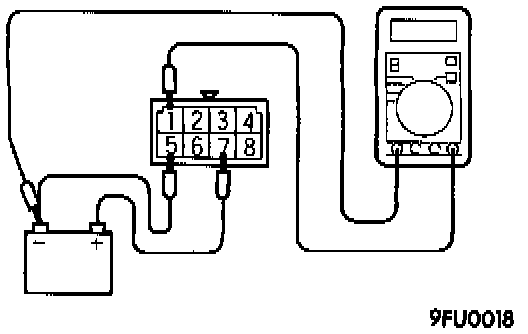

4. Check the voltage at multiport fuel injection relay terminal 1 while connecting and disconnecting the jumper lead at the battery (-) terminal.

Jumper wire Connected: Battery Voltage
Jumper wire: Disconnected 0 Volts





5. Use the jumper leads to connect multiport fuel injection relay terminal 8 to the battery (+) terminal and terminal 6 to the battery (-) terminal.

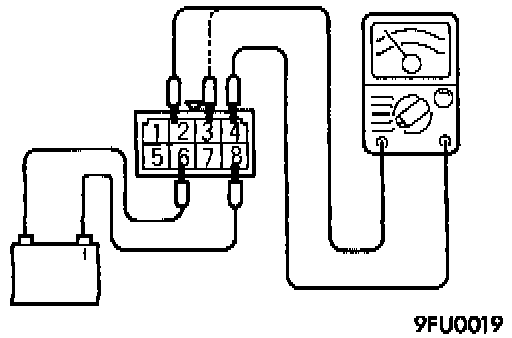

6. Check the continuity between multiport fuel injection relay terminals 2 - and terminals 3 - 4 while connecting and disconnecting the jumper lead at the battery (-) terminal.

Jumper wire connected:
Terminals 2 - 4: Continuity (0 Ohms)
Terminals 3 - 4: Continuity (0 Ohms)

Jumper wire disconnected:
Terminals 2 - 4: No Continuity (open circuit)
Terminals 3 - 4: No Continuity (open circuit)

7. Replace the multiport fuel injection relay, if malfunction exists.
