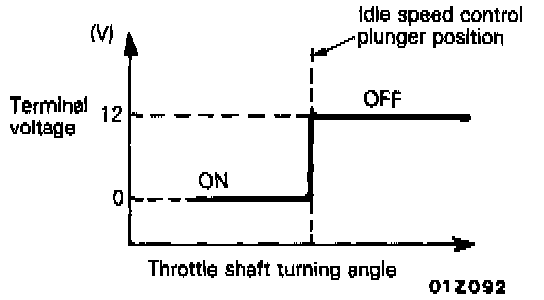

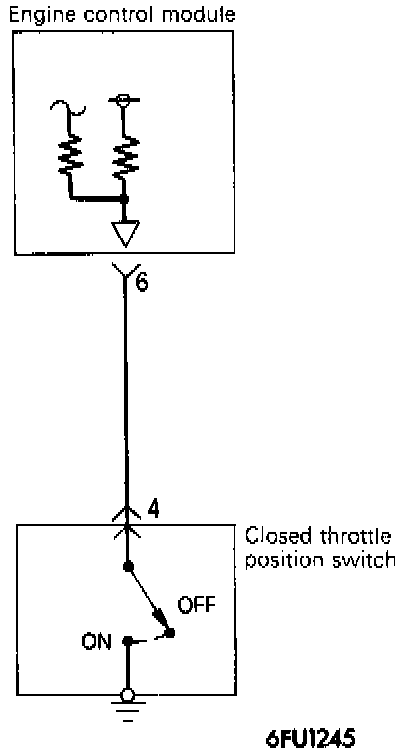

CIRCUIT DIAGRAM

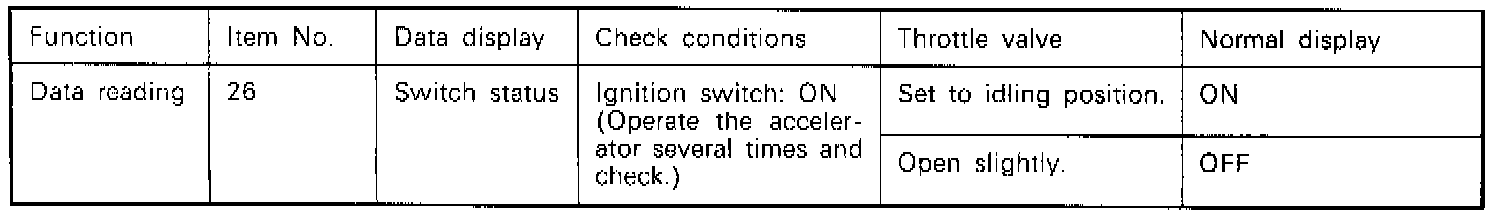

INSPECTION USING SCAN TOOL

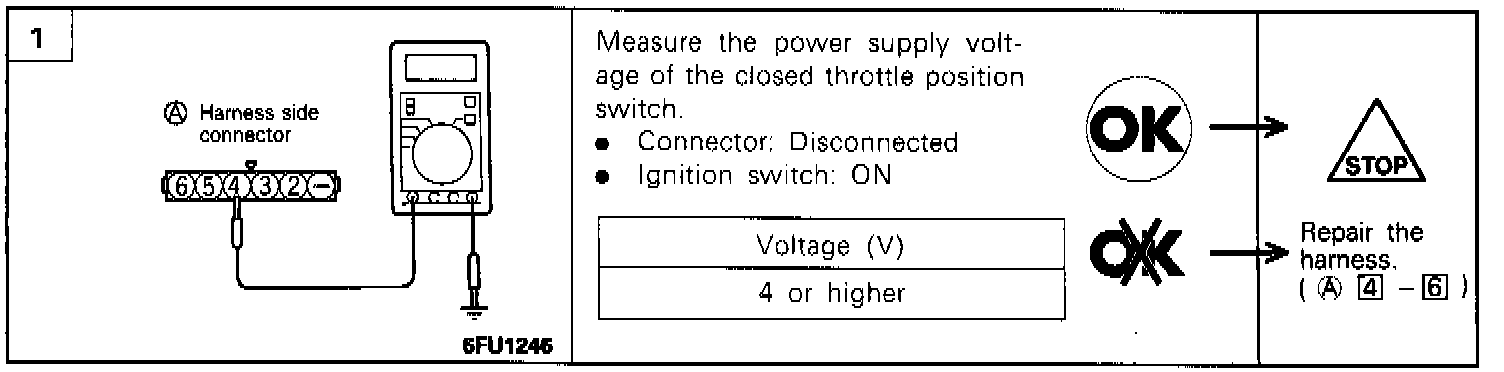

HARNESS INSPECTION PROCEDURE

TROUBLESHOOTING HINTS
- If there is an abnormal condition of the closed throttle position switch output even though the results of the checking of the closed throttle position switch harness and of the component itself indicate a normal condition, the cause may be presumed to be one of the following.
- Improper adjustment of the accelerator cable or the cruise-control cable.
- Improper adjustment of the fixed speed adjusting screw.
