Home >> Mitsubishi >> 1994 >> Pickup 4WD V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, Transfer Case

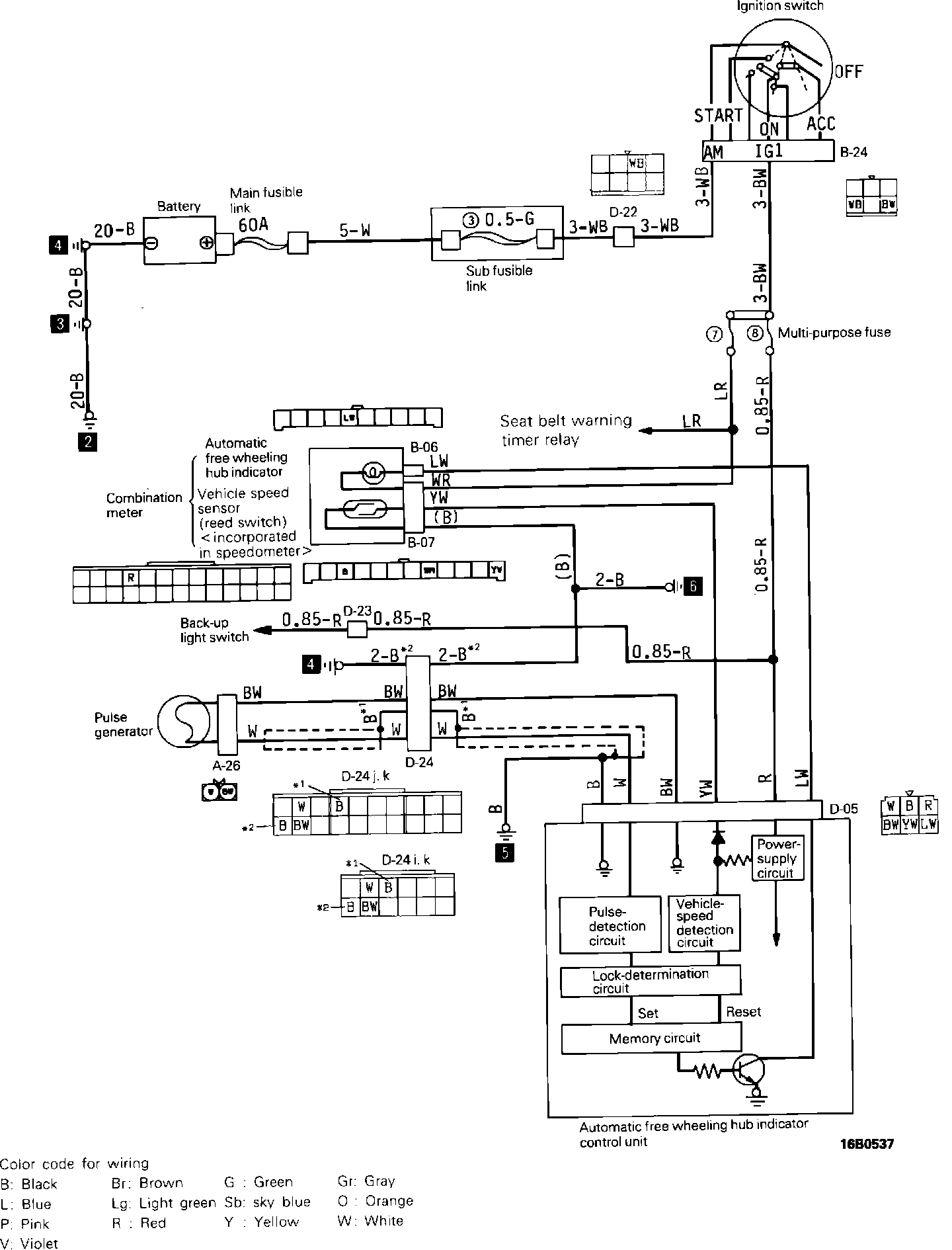

Control Module, Transfer Case

Automatic Free-Wheeling Hub Indicator:
