Federal

COMPONENT LOCATOR

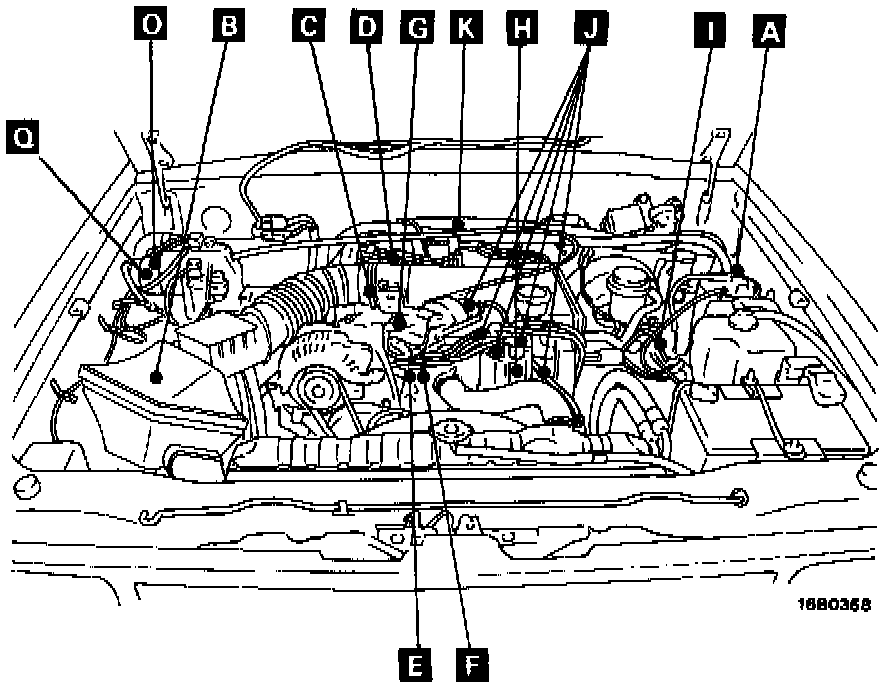

Engine Compartment





Name Symbol

Air conditioning compressor clutch relay A
Volume air-flow sensor B
Intake air temperature sensor B
Barometric pressure sensor B
Idle air control motor C
Throttle position sensor D
Closed throttle position switch D
Air conditioning temperature sensor E
Engine coolant temperature sensor F
Ignition coil G
Crankshaft & camshaft position sensors H
Evaporative emission purge solenoid I
Injector J
Heated oxygen sensor K
Ignition timing adjustment terminal O
Fuel pump check terminal Q

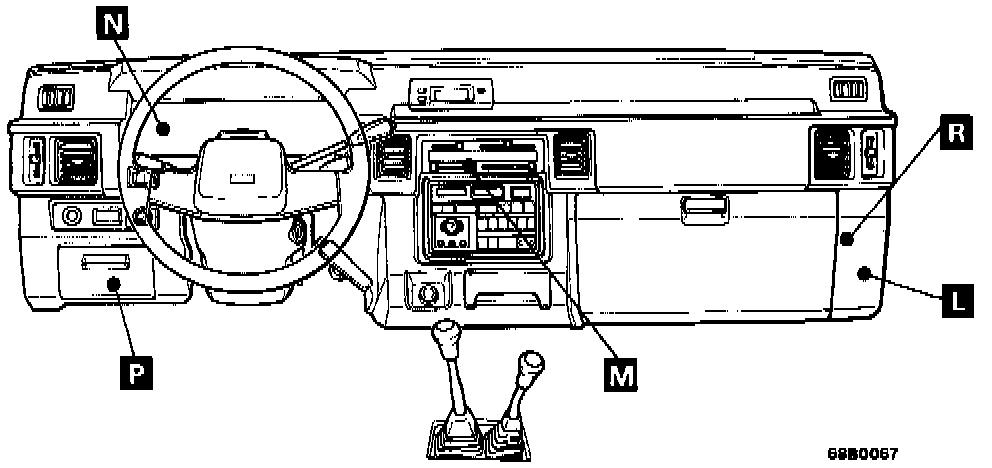

Instrument Panel





Name Symbol

Multiport fuel injection relay L
Air conditioning switch M
Check engine/malfunction indicator lamp N
Data link connector P
Engine control module R
