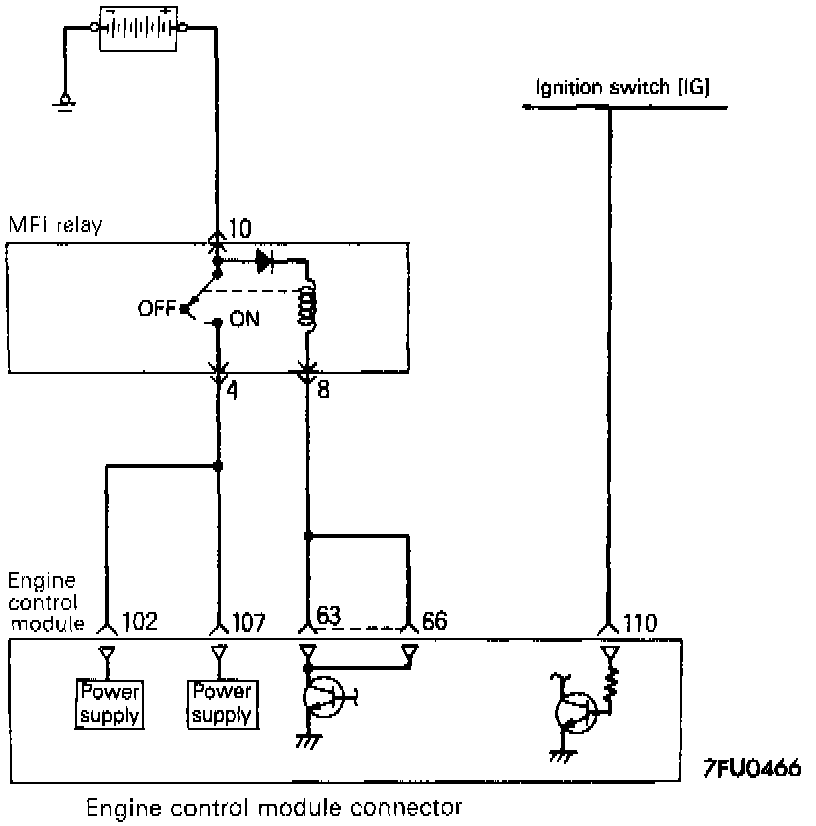

CIRCUIT DIAGRAM





INSPECTION USING SCAN TOOL

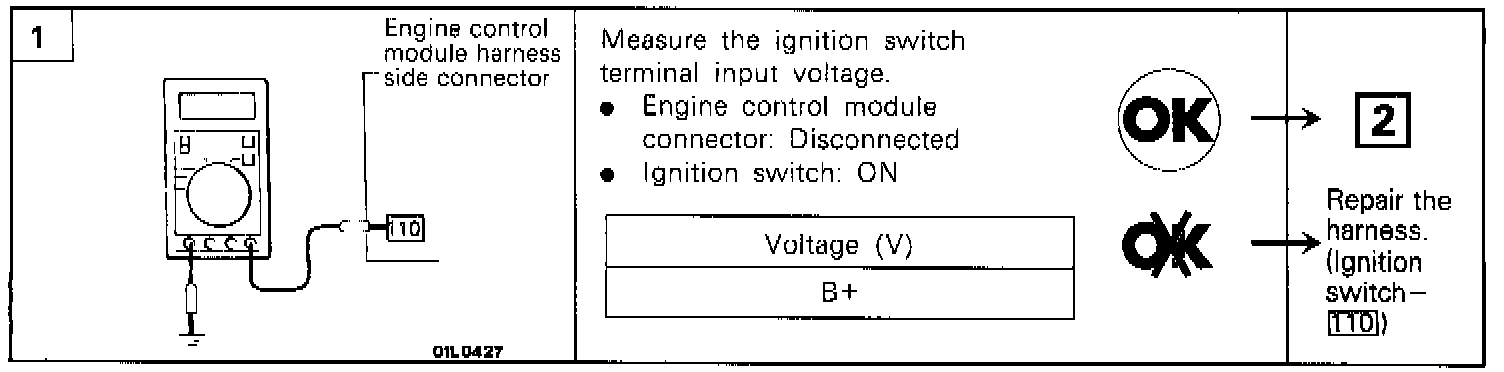

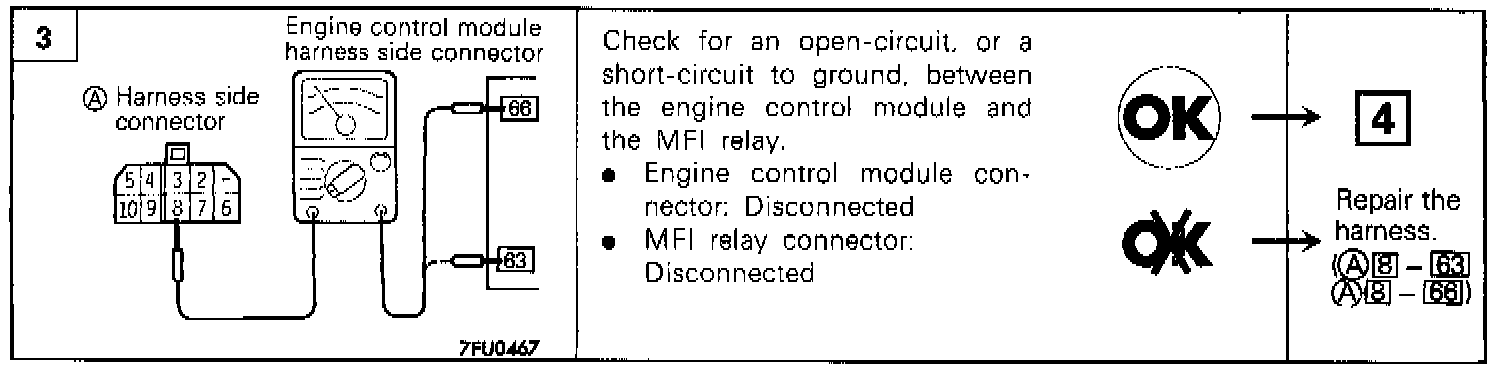

HARNESS INSPECTION PROCEDURE

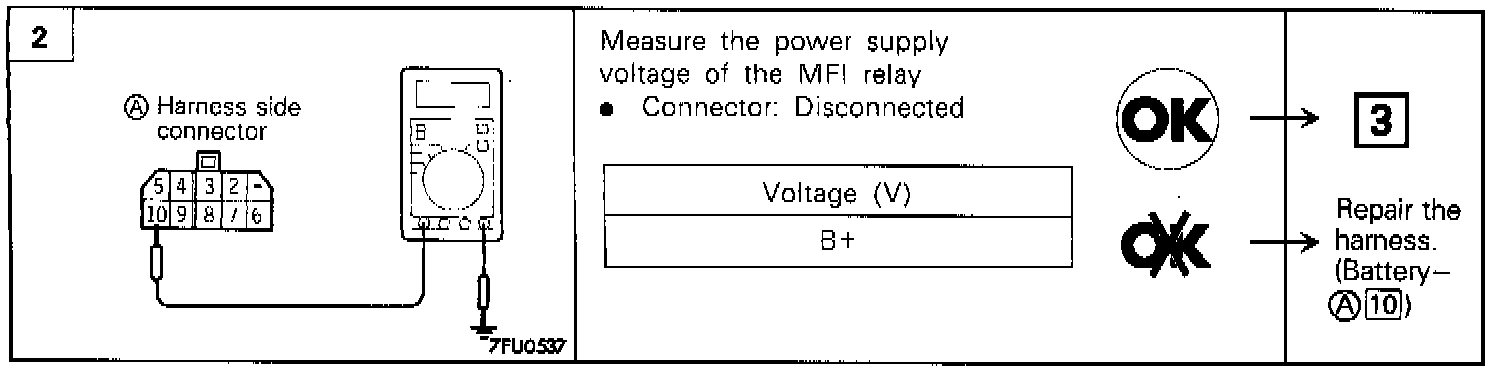

COMPONENT TEST PROCEDURE





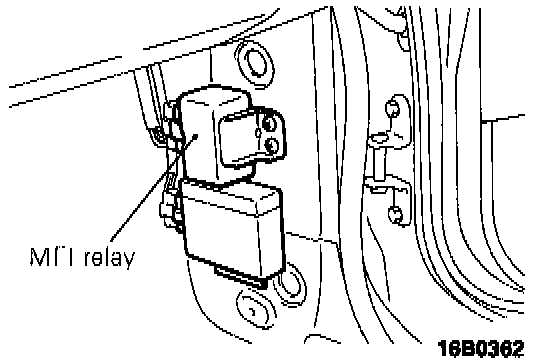

1. Disconnect the multiport fuel injection relay.

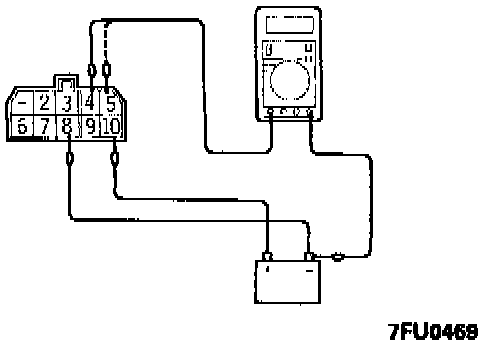

2. Using jumper wires, connect terminal 10 of the multiport fuel injection relay to the + terminal of the battery and connect terminal 8 of the relay to the - terminal of the battery

CAUTION; If jumper leads are not connected properly the relay will be damaged.

3. Measure the voltage at terminal 4 and terminal 5 of the multiport fuel injection relay while coming off and on the connection of the jumper wire to the battery - terminal.

Terminal 4:
Jumper wire connected - B+
Jumper wire disconnected - 0 Volts

Terminal 5:
Jumper wire connected - B+
Jumper wire disconnected - 0 Volts





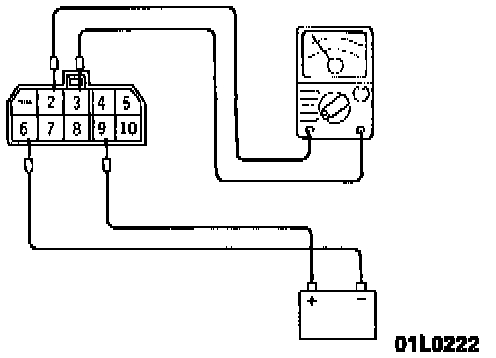

4. Using jumper wires, connect terminal 9 of the multiport fuel injection relay to the + terminal of the battery and connect terminal 6 of the relay to the - terminal of the battery.
5. Check the continuity between at terminal 2 and terminal 3 of the multiport fuel injection relay while coming off and on the connection of the jumper wire to the battery - terminal.

Jumper wire continuity between terminals 2 and 3:
Connected - Continuity
Disconnected - No Continuity





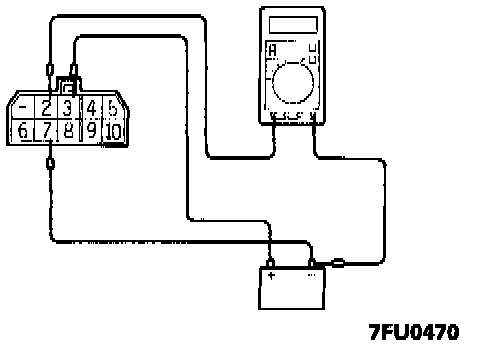

6. Using jumper wires. connect terminal 3 of the multiport fuel injection relay to the + terminal of the battery and connect terminal 7 of the relay to the - terminal of the battery.
7. Measure the voltage at terminal 2 of the multiport fuel injection relay while coming off and on the connection of the jumper wire to the battery - terminal.

Terminal 2: Voltage
Jumper wire connected - B+
Jumper wire disconnected - 0 Volts

8. Replace the multiport fuel injection relay if faulty.
