Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Front Axle
>>
Service Specifications
Service Specifications

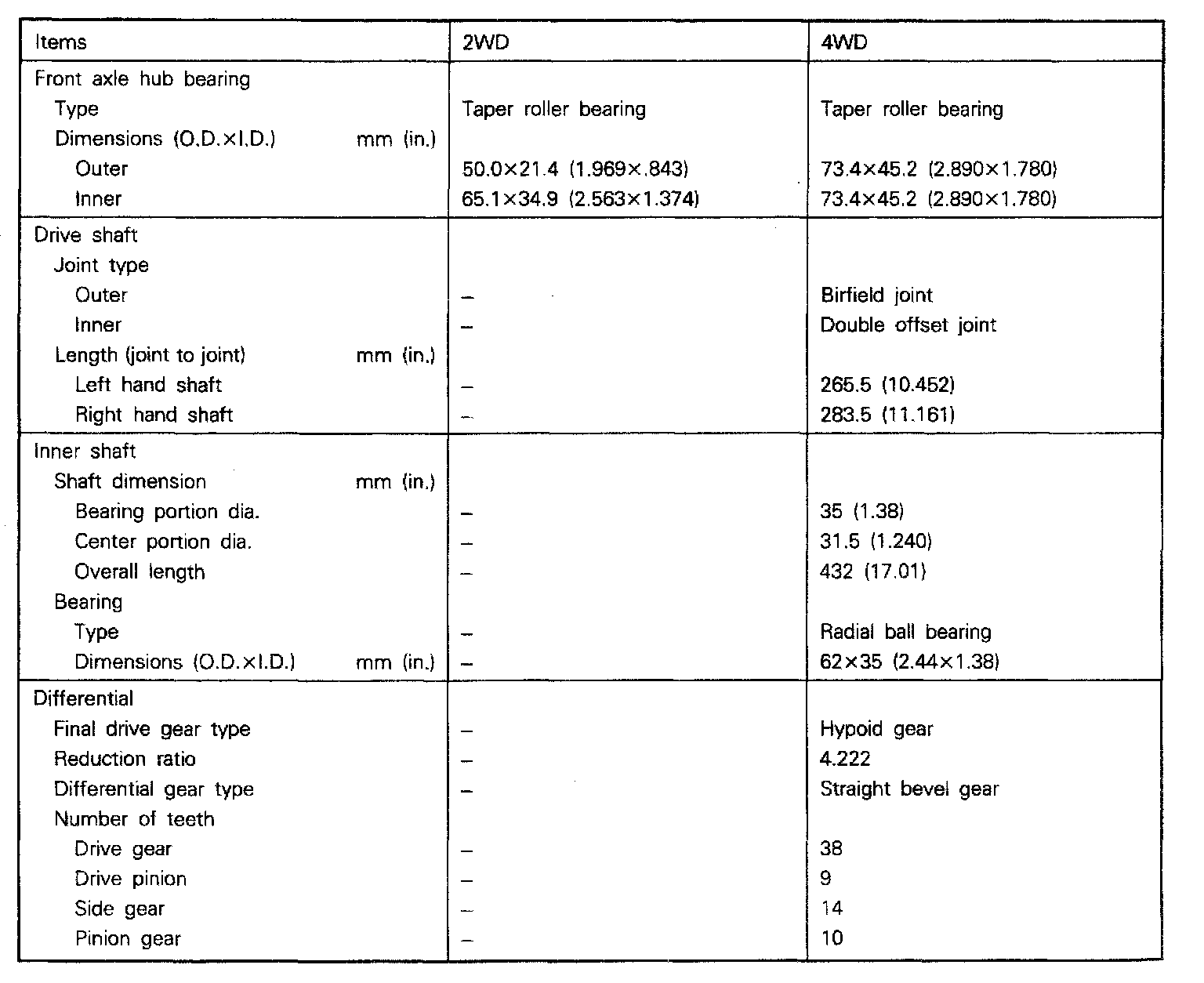

V5MT1 5-spd M/T, 4WD Front Differential Dimension:

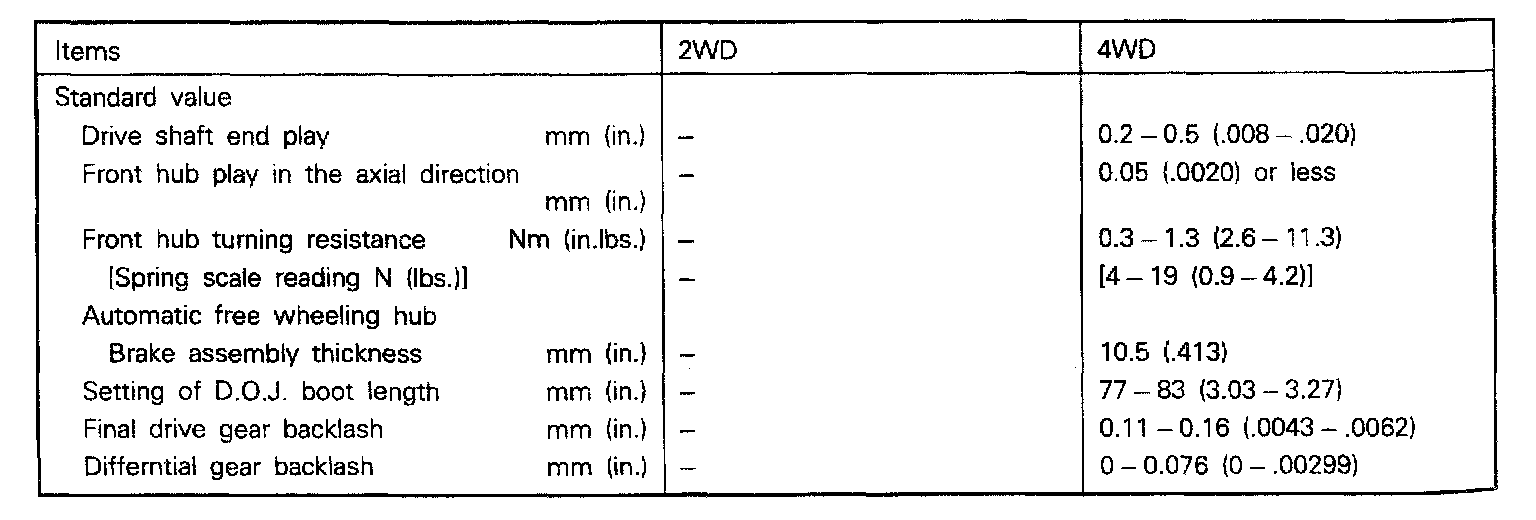

V5MT1 5-spd M/T, Front Differential Standard Value:

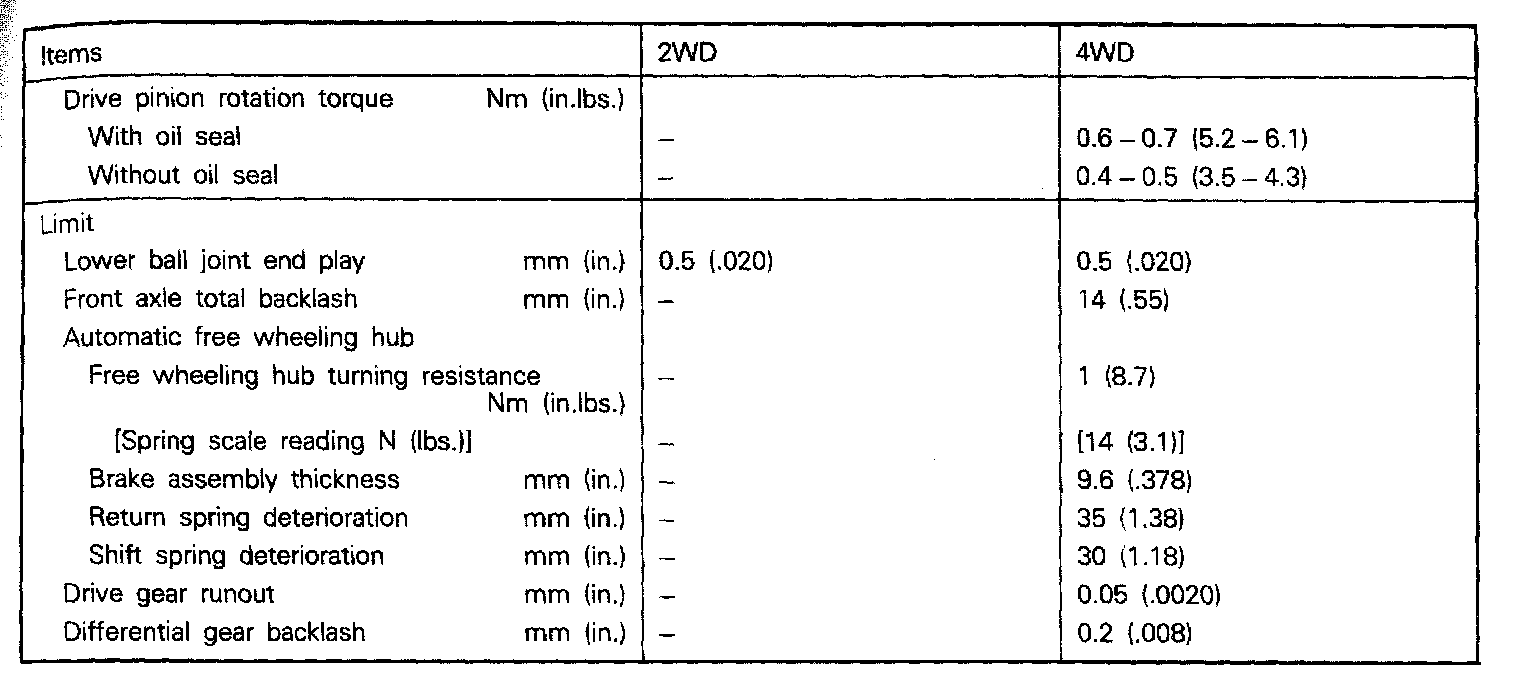

V5MT1 5-spd M/T, 4WD Front Differential Limits:
