Transaxle Control Harness

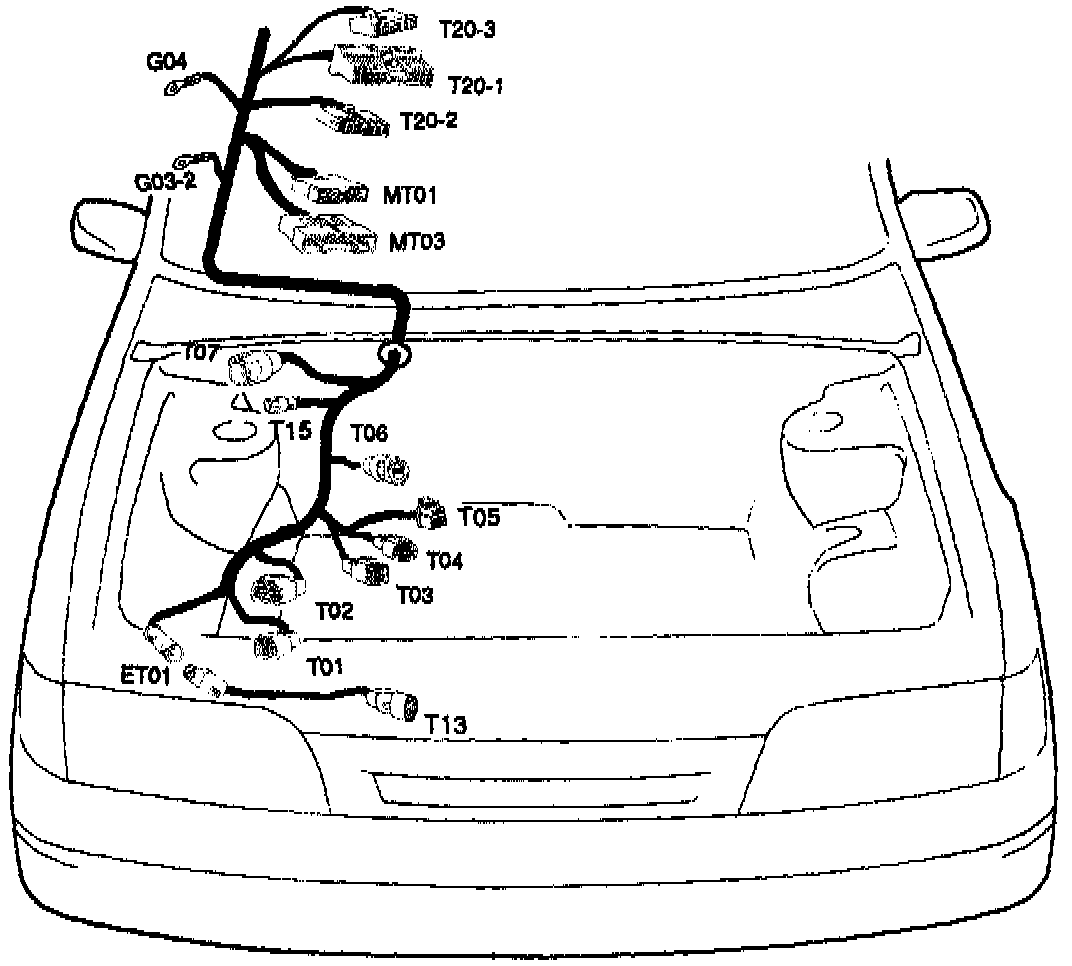

Transaxle Control Wiring Harness:

T01 T/A control solenoid

T02 Transaxle range switch

T03 Pulse generator

T04 Oil temperature sensor

T05 Kick down switch

T06 Brake fluid sensor

T07 Wiper motor

T13 Back up switch (M/T)

T20-1 Electronic lock up control module (4-speed)

T20-2 Electronic lock up control module (4-speed)

MT01 Connection with main harness

MT03 Connection with main harness (A/T)

ET01 Connection with engine harness
