Fuel Filter: Service and Repair

PROCEDURE

1. Reduce the internal pressure of the fuel pipes and hoses by completing the following operations.

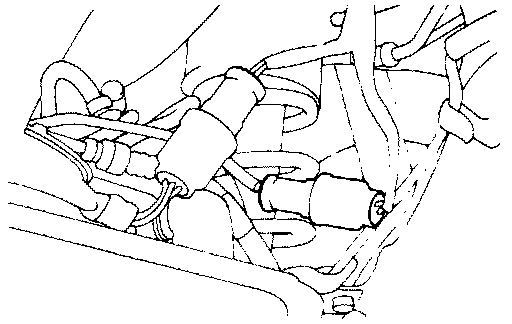

- Disconnect the Fuel Pump harness connector at the rear of the Fuel Tank. Start the engine and after it stalls, turn the Ignition Switch to OFF.
- Disconnect the battery negative (-) terminal.
- Connect the Fuel Pump harness connector.

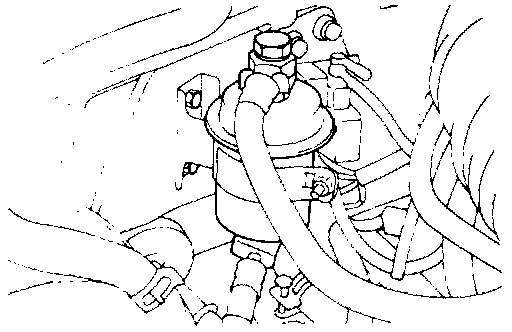

2. Remove the eye bolts while holding the Fuel Filter nuts securely.

CAUTION: Cover with a shop towel to avoid gasoline from splashing.

3. Remove the Fuel Filter mounting bolts, then remove the Fuel Filter clamp.
4. After replacing the Fuel Filter, check for fuel leaks.
