Driveshaft Oil Seals Replacement
DRIVESHAFT OIL SEALS REPLACEMENT 1.
Disconnect the drive shaft from the transaxle.
2.

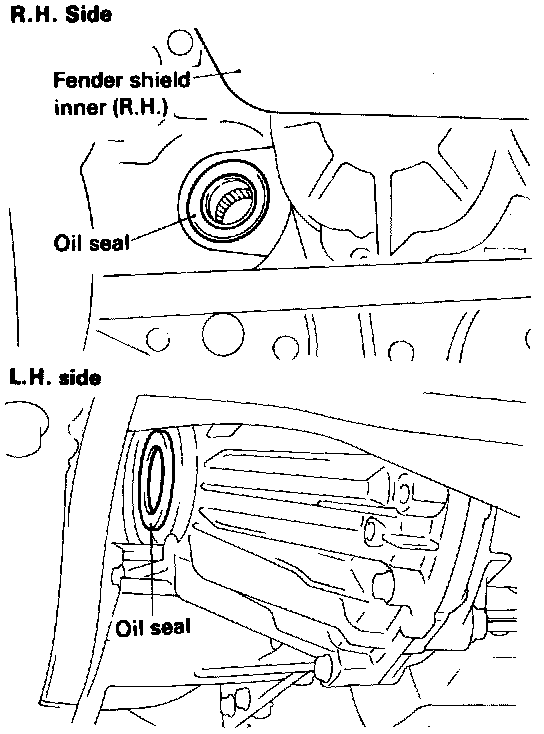

Using a flat-tip screwdriver, remove the oil seal.
3.

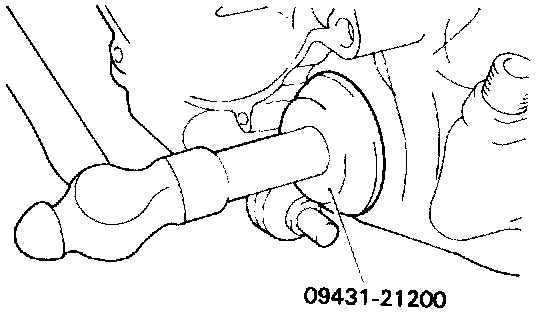

Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.
4.
Apply a coating of the automatic transaxle fluid to the lip of the oil seal.
