Ignition Lock: Service and Repair
Refer to
Technician Safety Information for Air Bag Arming and Disarming.
1.
Disconnect battery ground cable.
2.
Remove knee protector and steering column shrouds.
3.
Remove steering wheel.

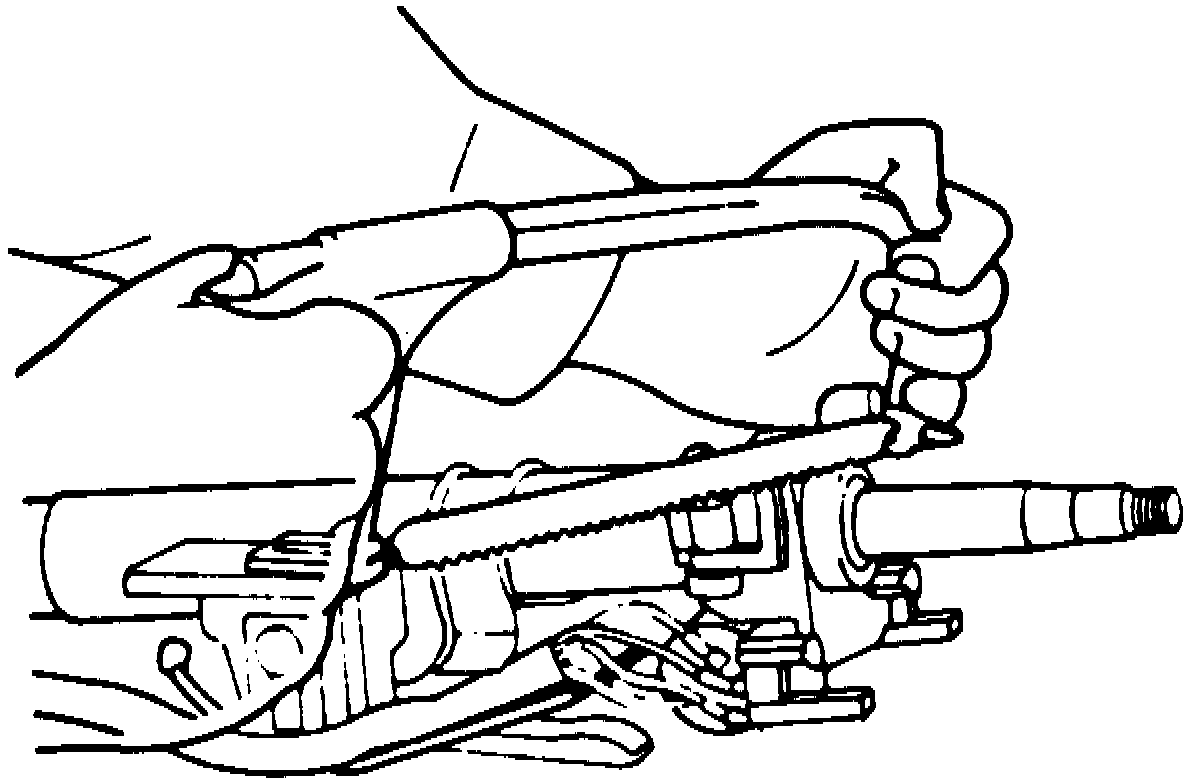

Fig. 2 Ignition Lock Removal:
4.
Cut groove in attaching bolt heads using a hacksaw, then remove bolts,
Fig. 2.
5.
Remove ignition key lock.
6.
Reverse procedure to install.
