Ignition Switch: Description and Operation

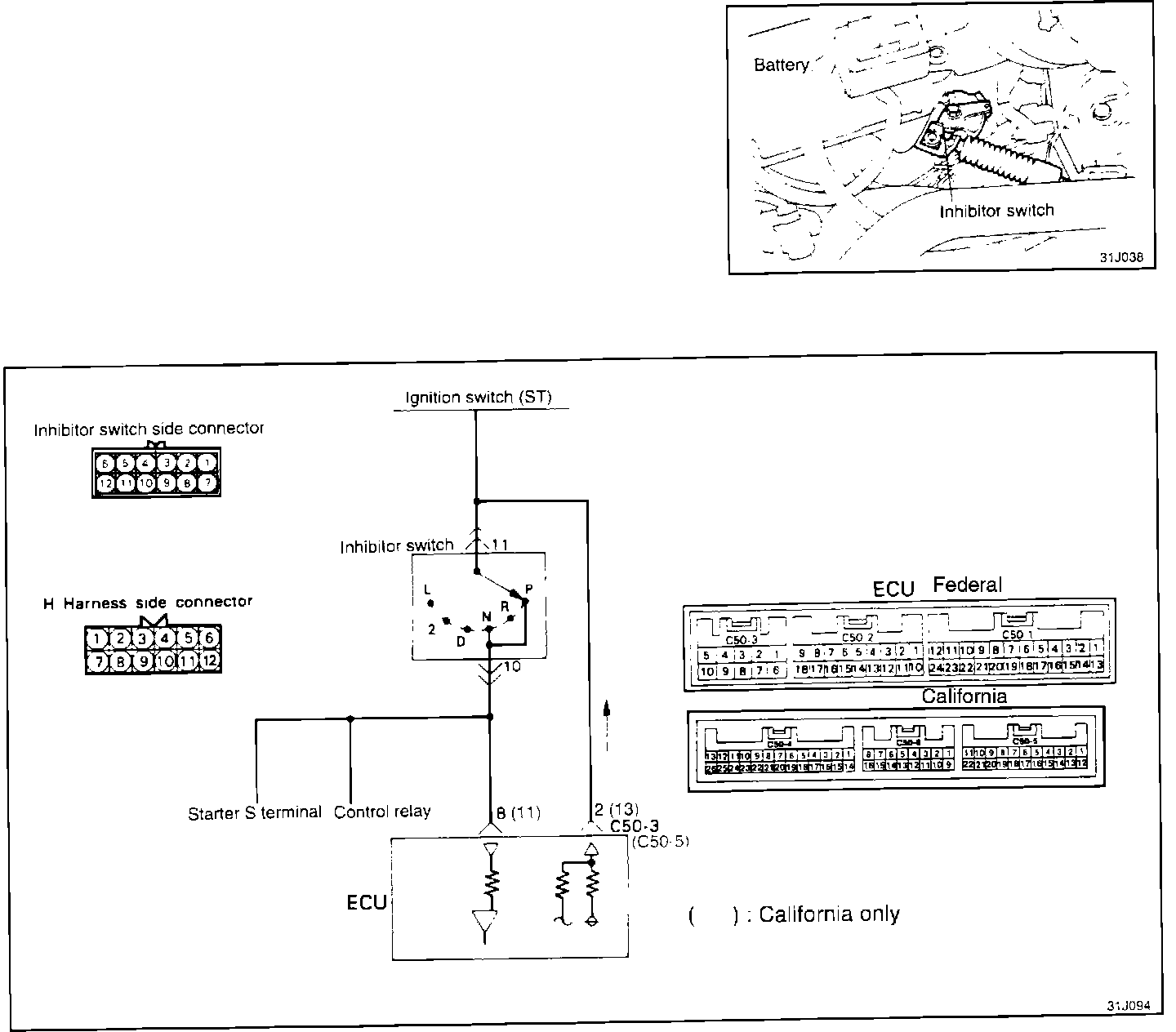

Ignition Switch-ST And Inhibitor Switch Circuit:

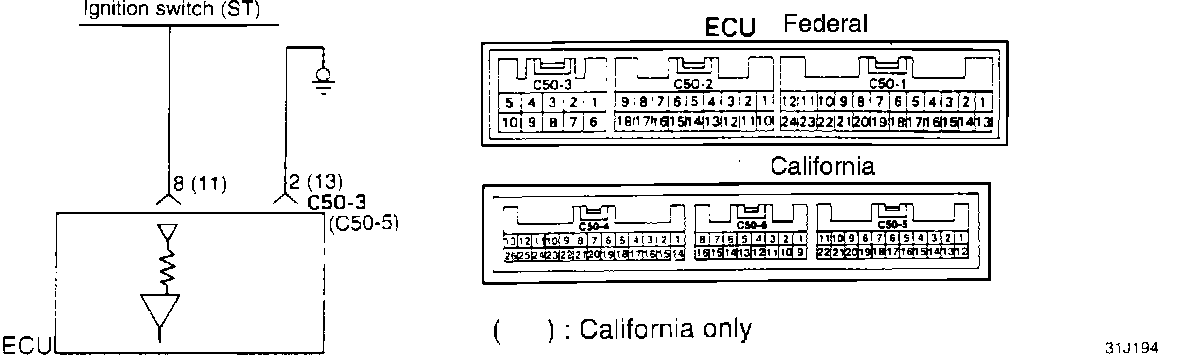

AUTOMATIC TRANSMISSIONIgnition Switch-ST Circuit M/T:
MANUAL TRANSMISSION The
ignition switch supplies "On" and "Start" information to the ECU to position the idle speed control components. The ignition switch "ON" signal is provided to the ECU through the control relay.
