Cruise Control Servo Cable: Adjustments

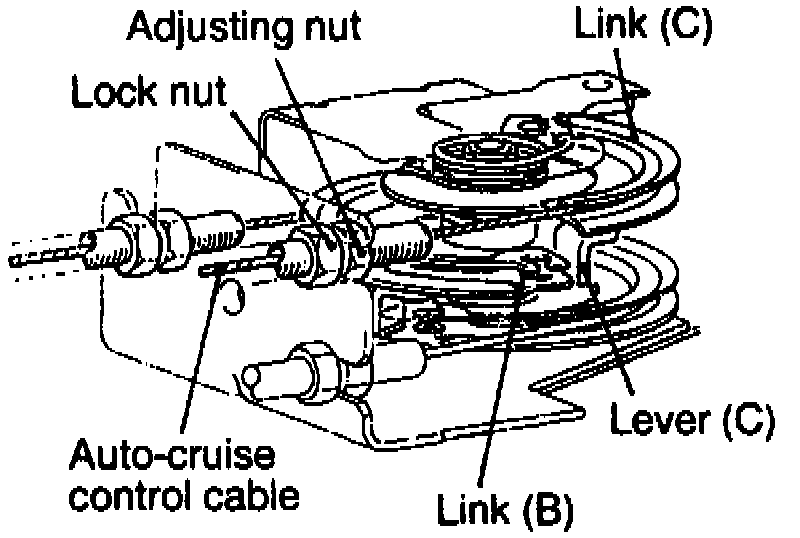

Fig. 21 Auto Cruise Control Cable Adjustment:
1.
Determine position at which intermediate link (C),
Fig. 21, touches link (B). At this contact point, loosen adjusting nut approximately one turn.
2.
Ensure inner cable play is 0.04-0.08 inch, then secure cable with locknut.
