Differential Assembly

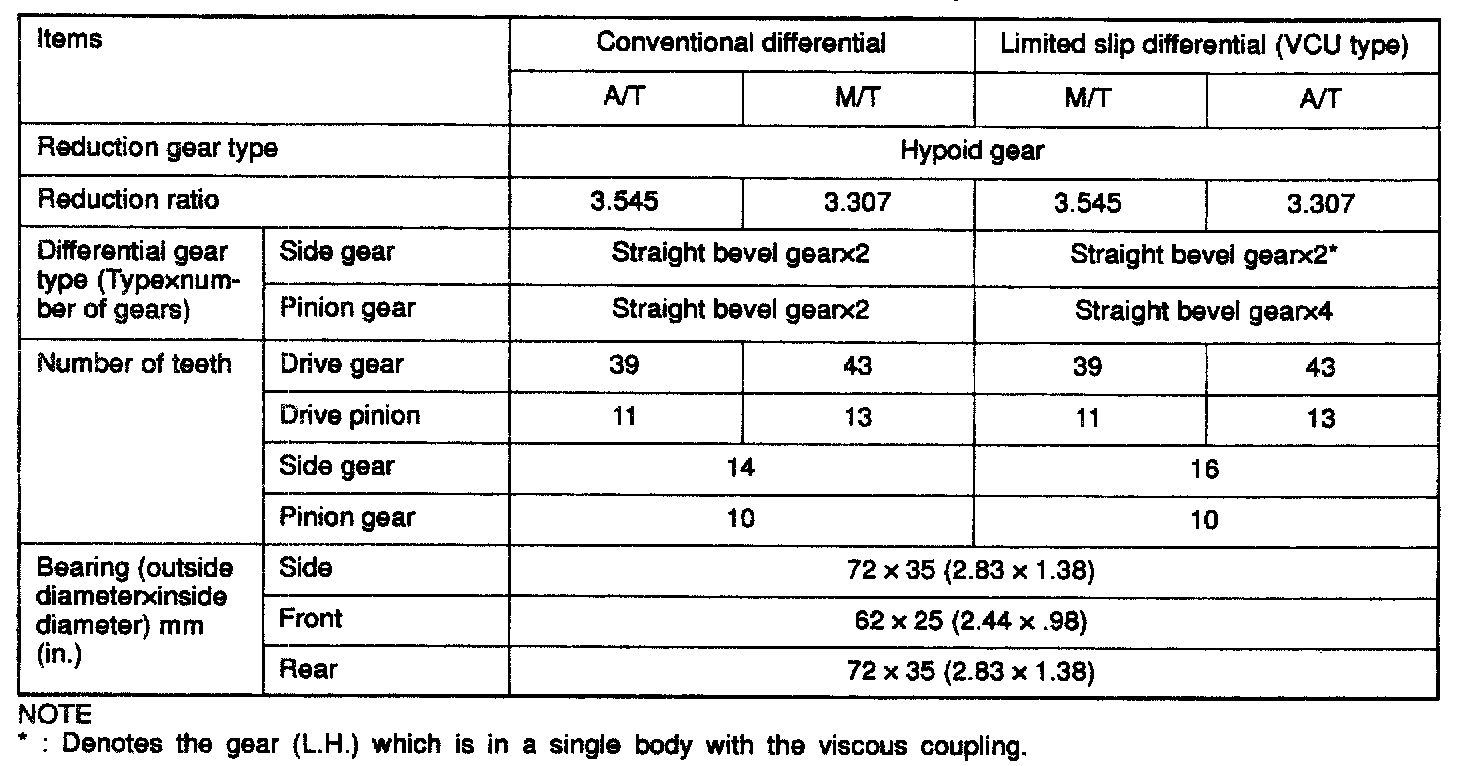

Rear Axle (AWD), Differential Dimensions ('95):

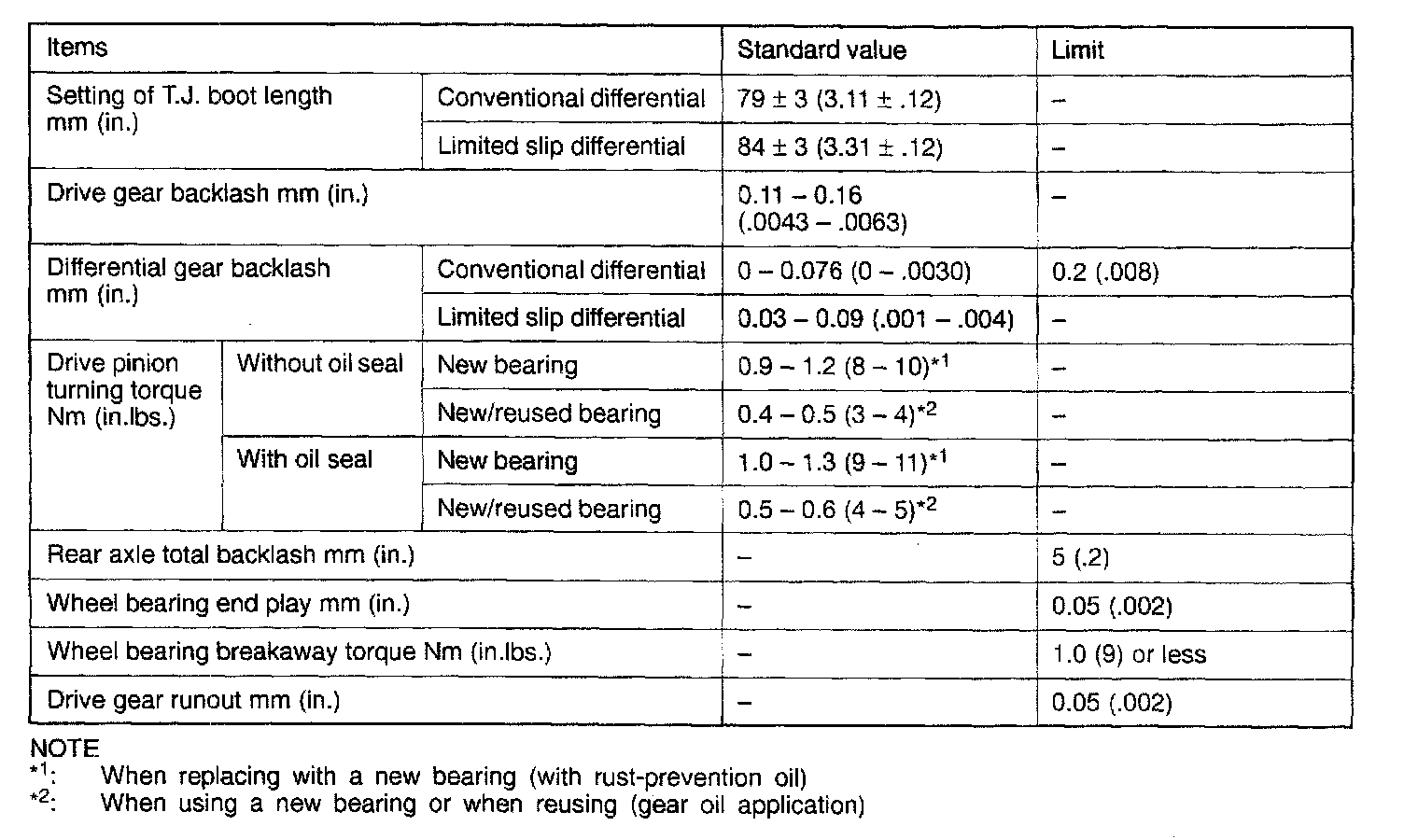

Rear Axle (AWD), Differential Standard Values & Limits:

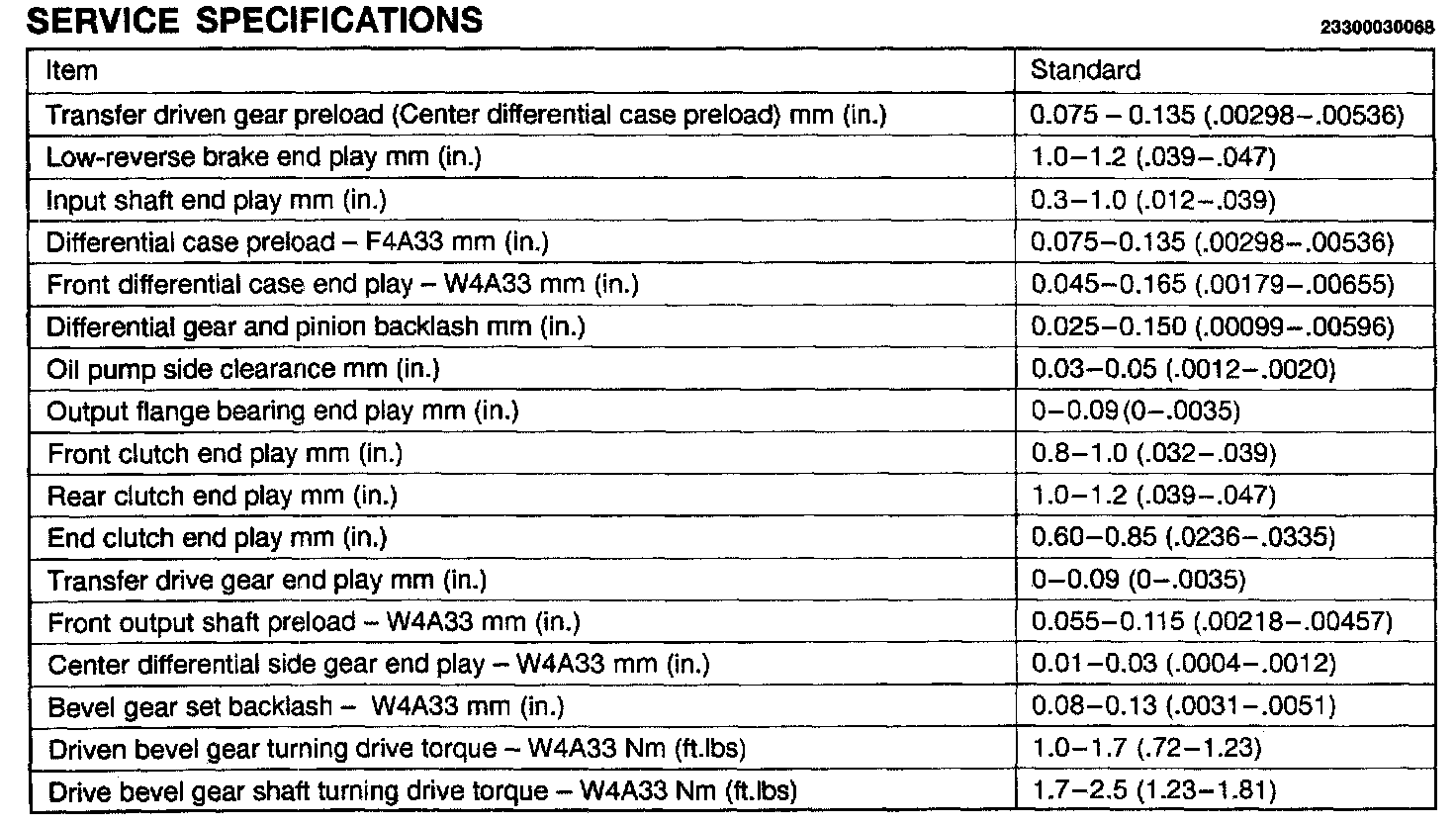

F4A33/W4A33 4-spd A/T, Standard Values:

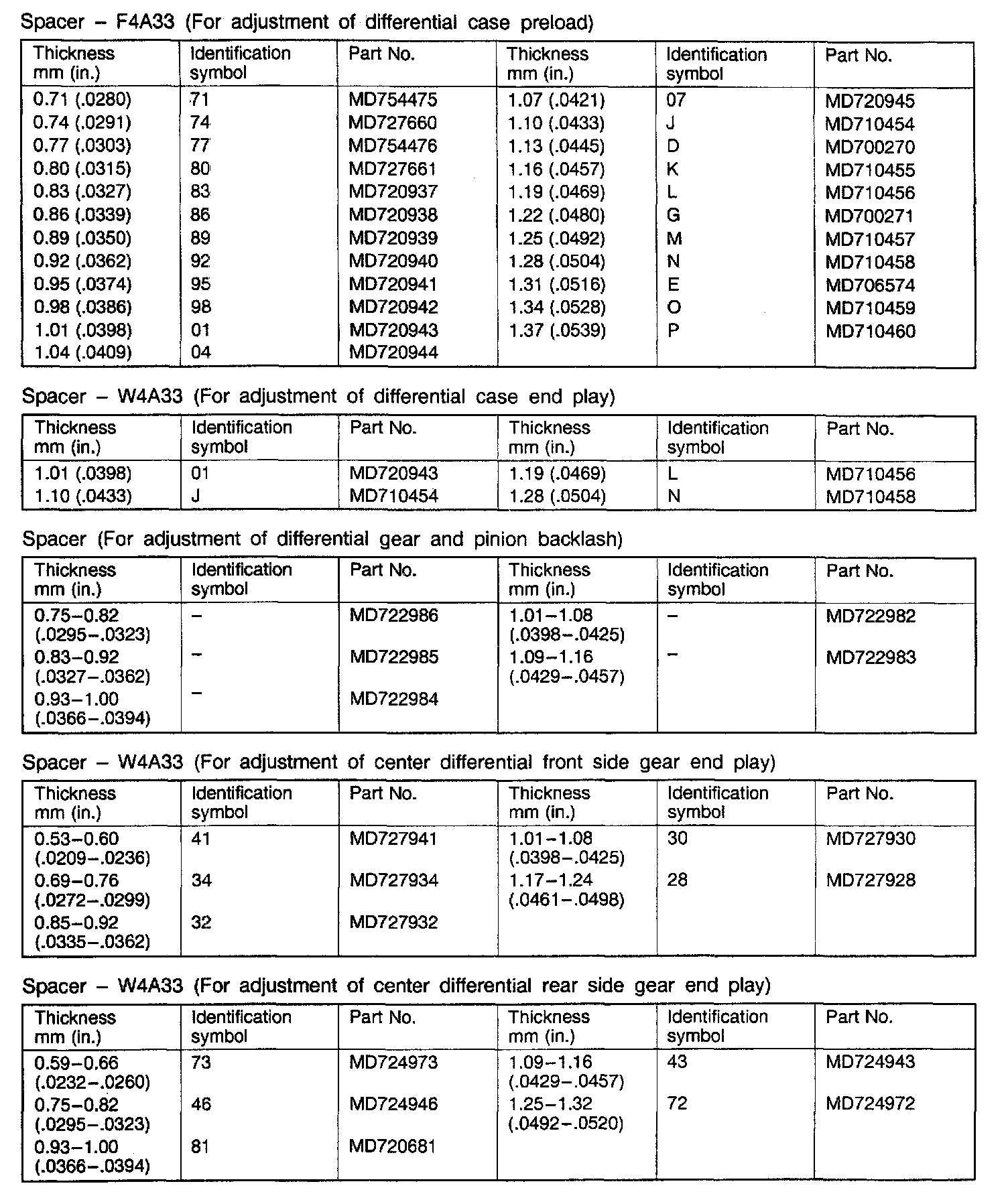

F4A33/W4A33 4-spd A/T, Differential Preload, End Play & Backlash:

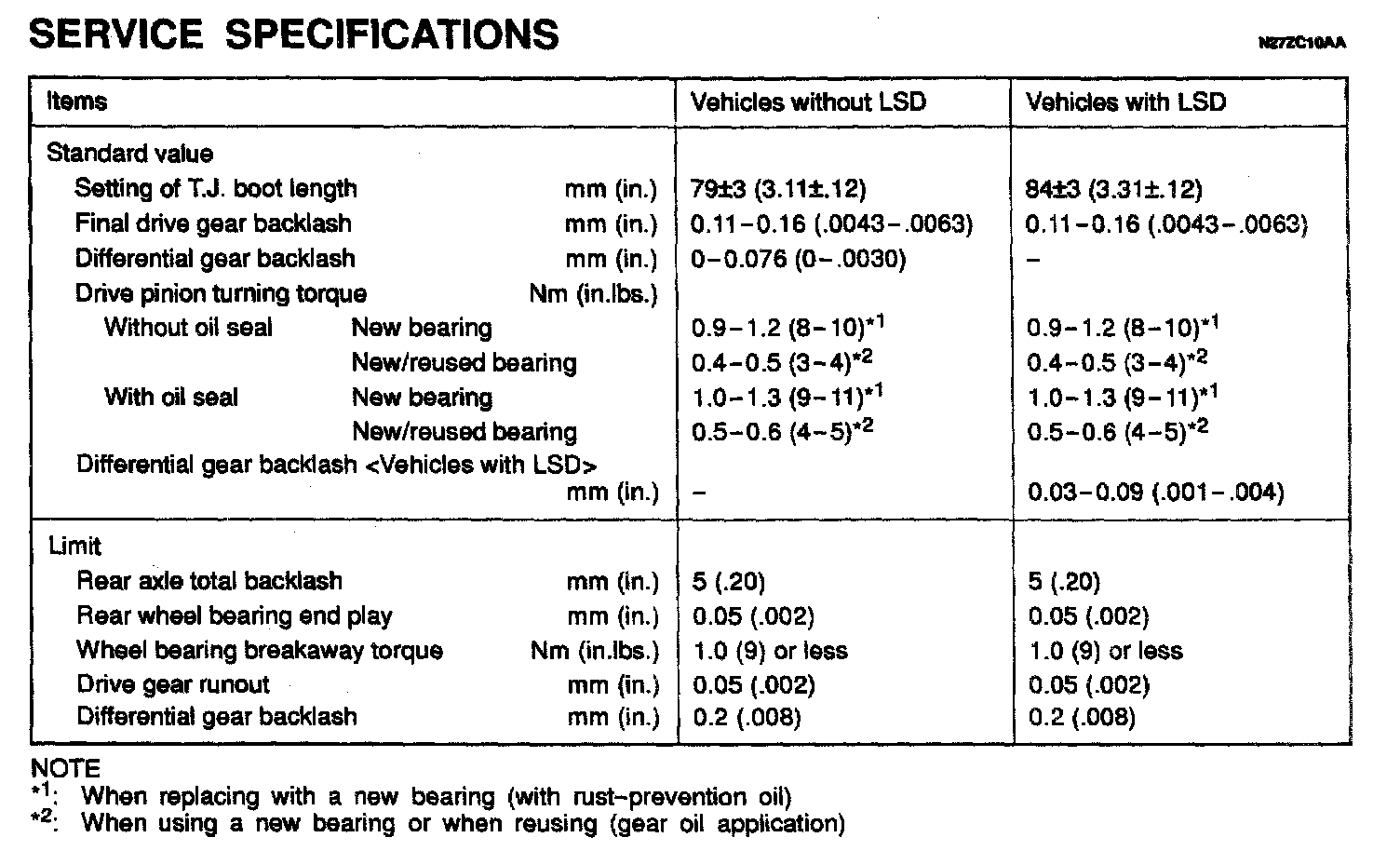

F4AC1 4-spd A/T, Differential AWD ('96):
