MFI (ASD) & Fuel Pump Relays - Locator Revised

NO.: TSB-97-13-006
DATE: April, 1997
MODEL: 1995 Eclipse

SUBJECT:
MFI & FUEL PUMP RELAY LOCATIONS - SERVICE MANUAL REVISION

[TSB Revision TSB-97-13-006]

PURPOSE
The locations of the MFI (ASD) relay and the fuel pump relay are incorrectly illustrated on the affected service manual pages. This bulletin contains the correct illustrations for the MFI (ASD) relay and the fuel pump relay.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
1995 Eclipse models equipped with 2.0L non-turbocharged engine

AFFECTED SERVICE MANUALS
1995 Eclipse, Volume 1, pages 13A-112 and 13A-113

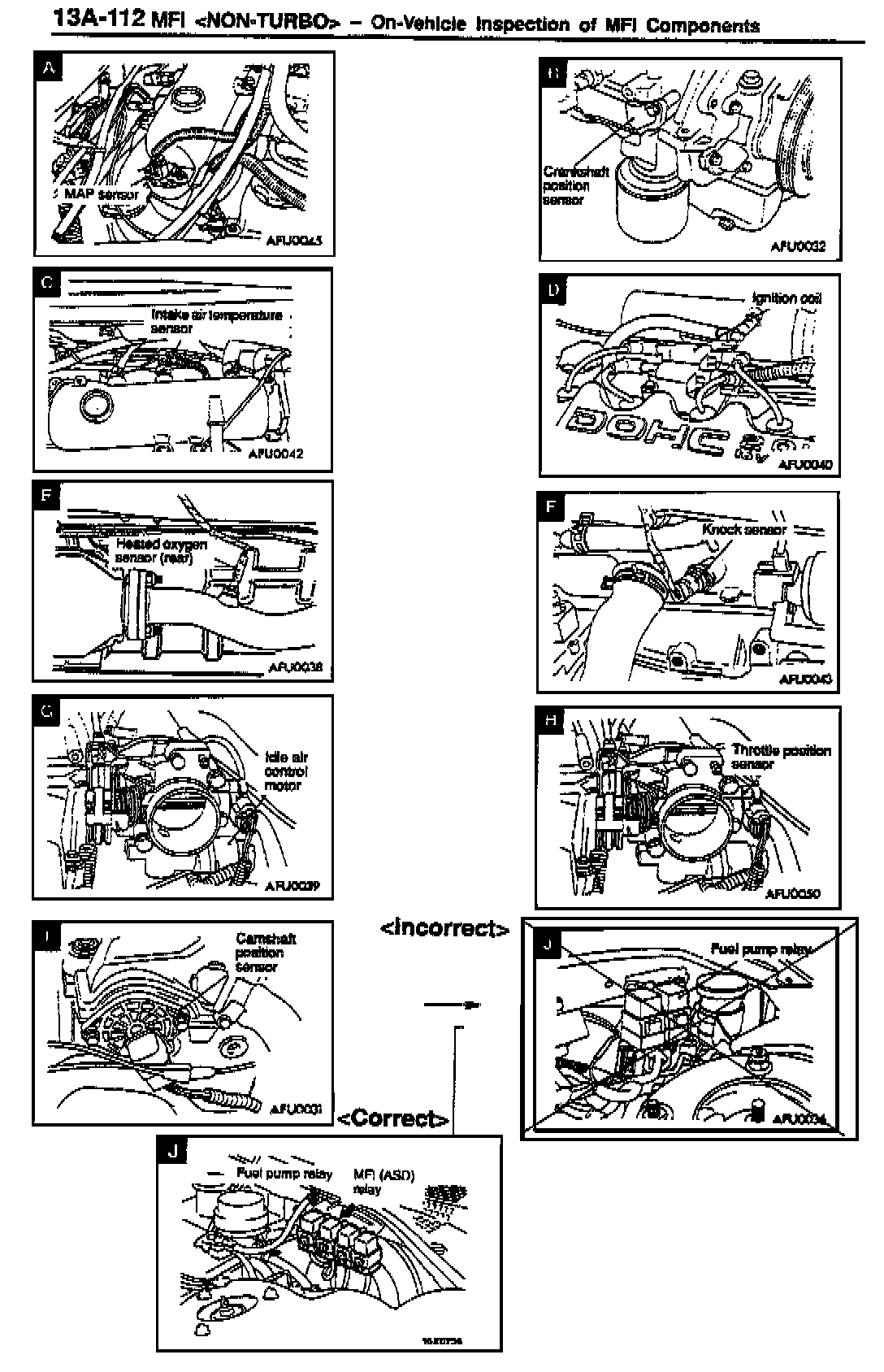

1995 Eclipse, Volume 1, page 13A-112

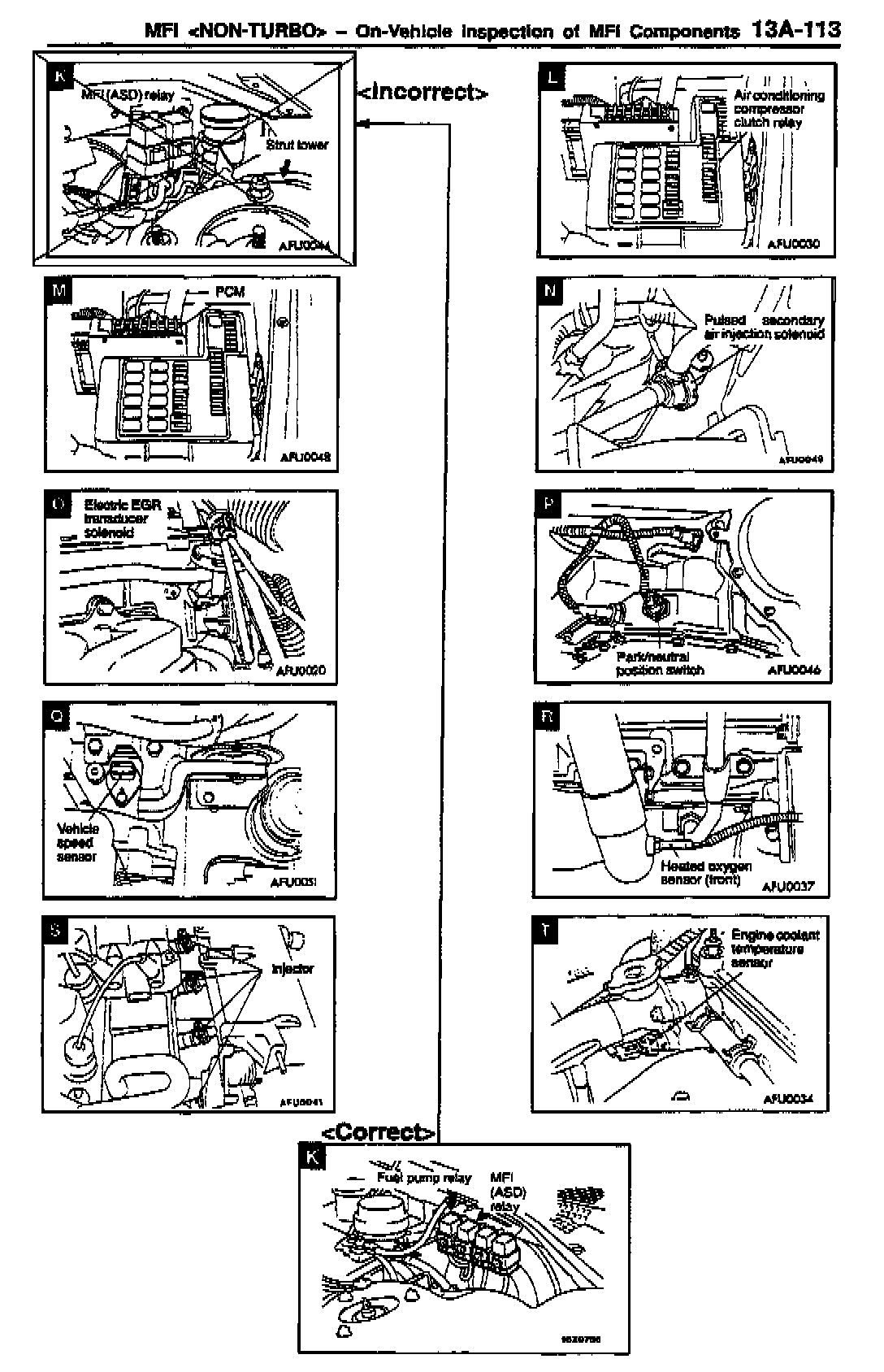

1995 Eclipse, Volume 1, page 13A-113
