Power WIndow Switch - Continuity Check Chart

NO.: TSB-96-42A-014

DATE: July, 1996

MODEL: 1995 Eclipse

SUBJECT:
POWER WINDOW SWITCH CONTINUITY CHECK CHART SERVICE MANUAL REVISION

PURPOSE

This bulletin corrects the Power Window Switch Continuity Check Chart in the 1995 Eclipse Service Manual, Volume 1. The chart in the 1996 service manual is correct.

Write the TSB number in the "TSB Revision Box" at the bottom of the affected service manual page.

AFFECTED VEHICLES

1995 Eclipse

AFFECTED SERVICE MANUAL

1995 Eclipse, Volume 1, Page 42-44

SERVICE MANUAL REVISION






1995 Eclipse Service Manual Volume 1, Page 42-44

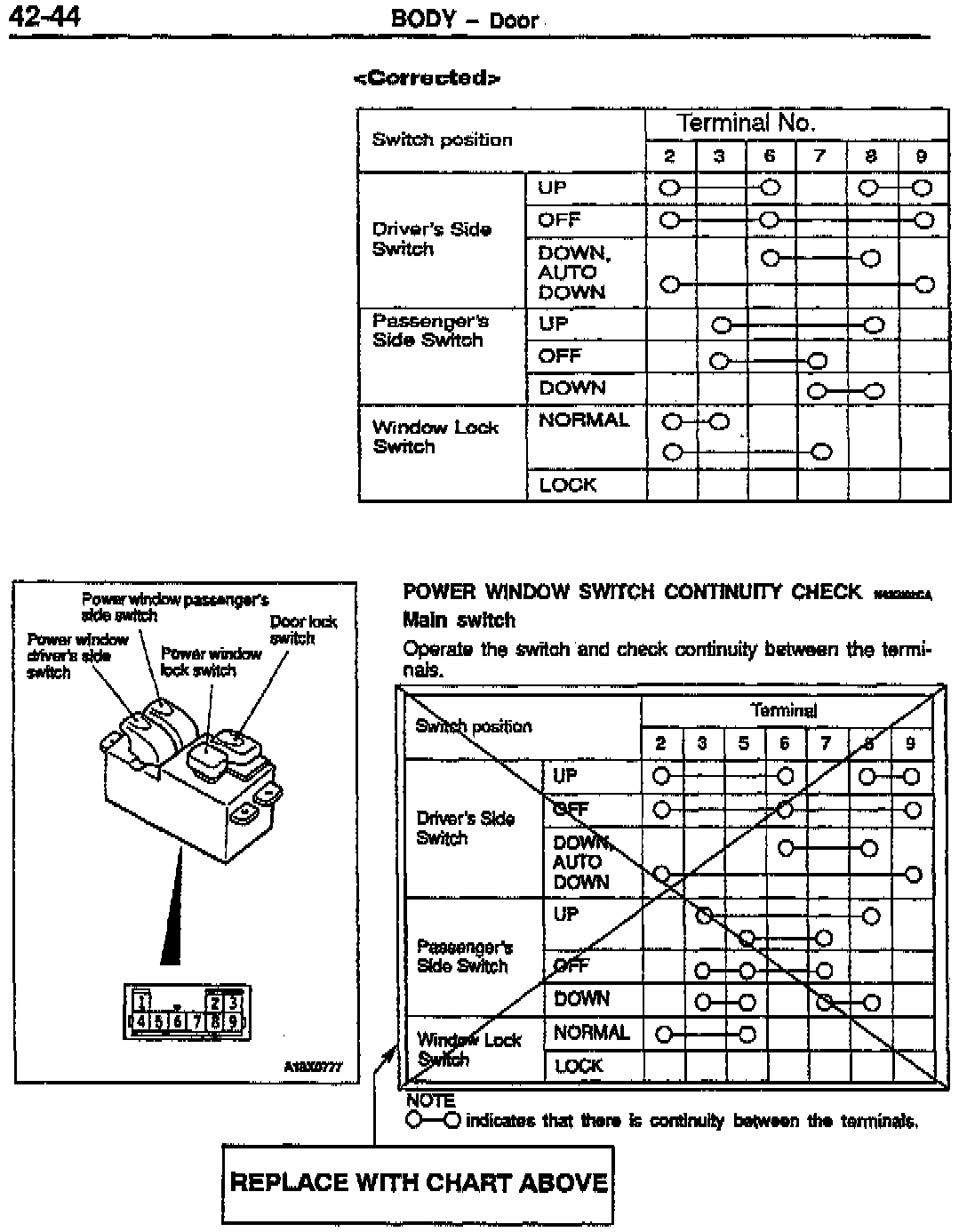

Insert the corrected switch position chart as shown.
