Auto-Cruise Control System Circuit Fuse - Correction

NO.: TSB-96-54-011
DATE: December, 1996
MODEL: 1995 Eclipse 2.0L Turbo

SUBJECT:
OMISSION OF AUTO-CRUISE CONTROL SYSTEM CIRCUIT DEDICATED FUSE - SERVICE MANUAL REVISION

TSB Revision TSB-96-54-011

PURPOSE

This bulletin corrects the 1995 Eclipse Service Manual, Volume 2 to show the auto-cruise control system dedicated fuse for the 1995 Eclipse 2.0L Turbo (GS-T and GSX).

AFFECTED VEHICLES

1995 Eclipse equipped with the 2.0L Turbo engine

AFFECTED SERVICE MANUAL

1995 Eclipse Service Manual, Volume 2, Pages 44, 45, and 215

SERVICE MANUAL REVISION

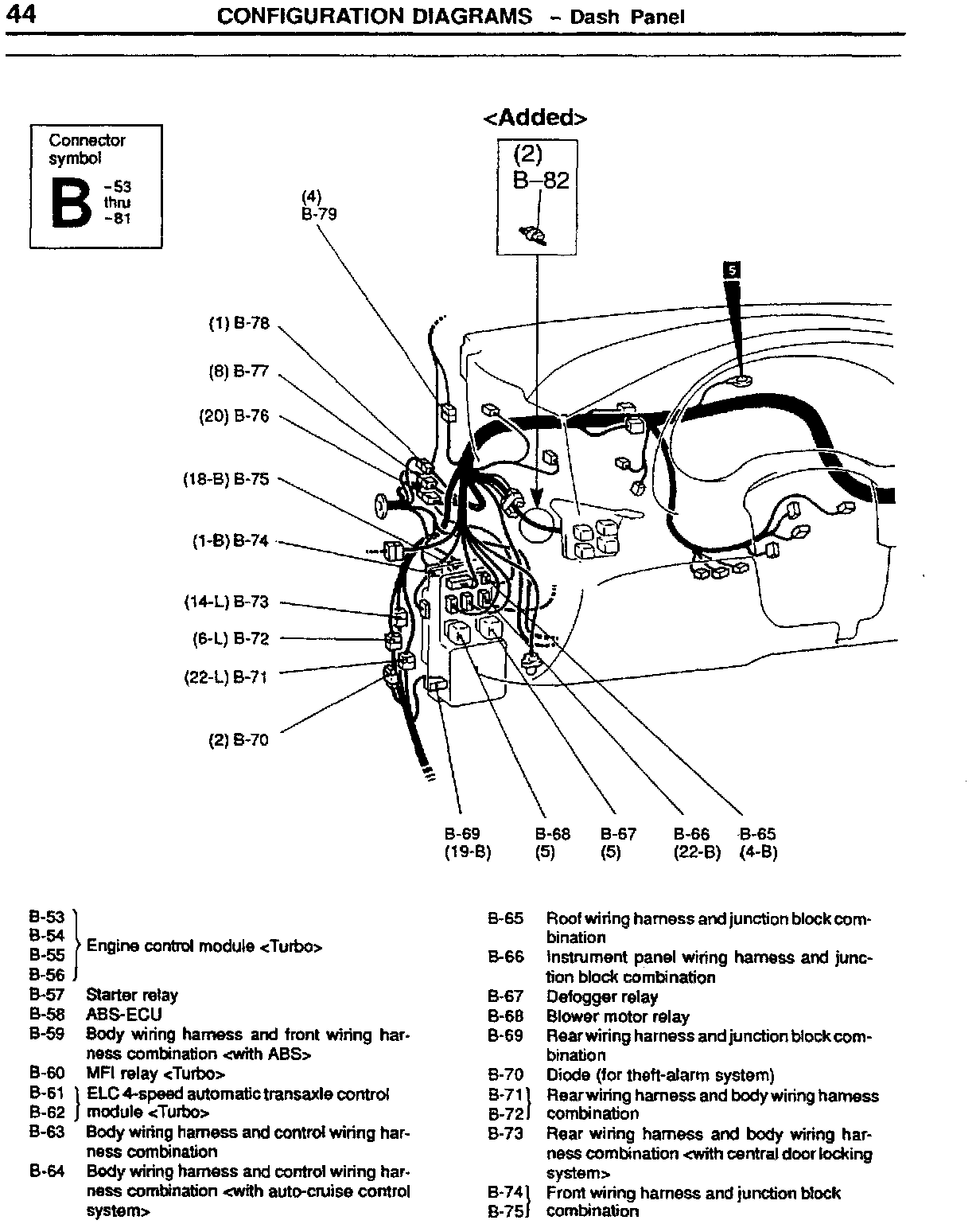

1995 Eclipse Service Manual, Volume 2, Page 44
Add the dedicated auto-cruise control system fuse as shown.

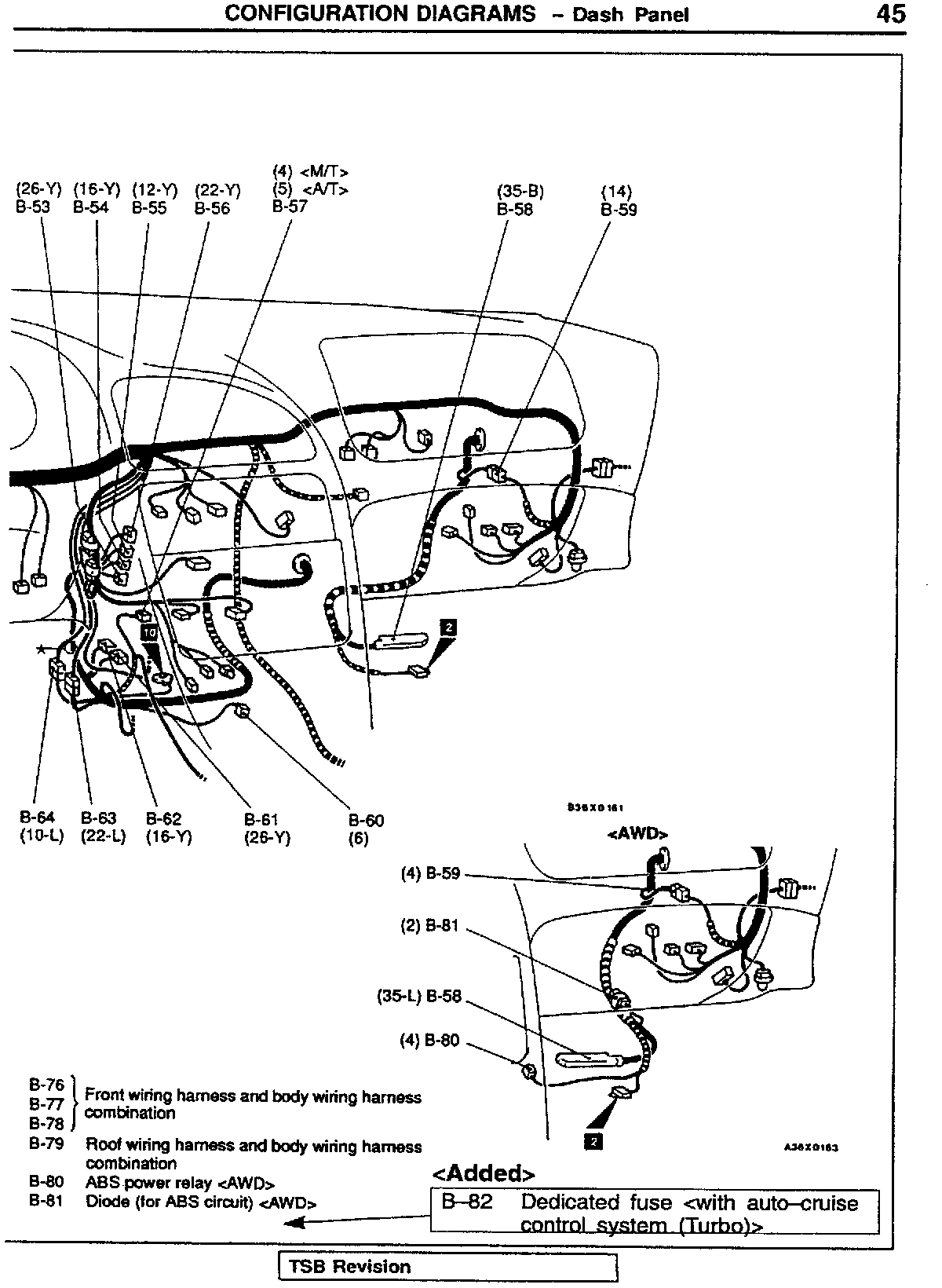

1995 Eclipse Service Manual, Volume 2, Page 45
Add the dedicated auto-cruise control system fuse as shown.

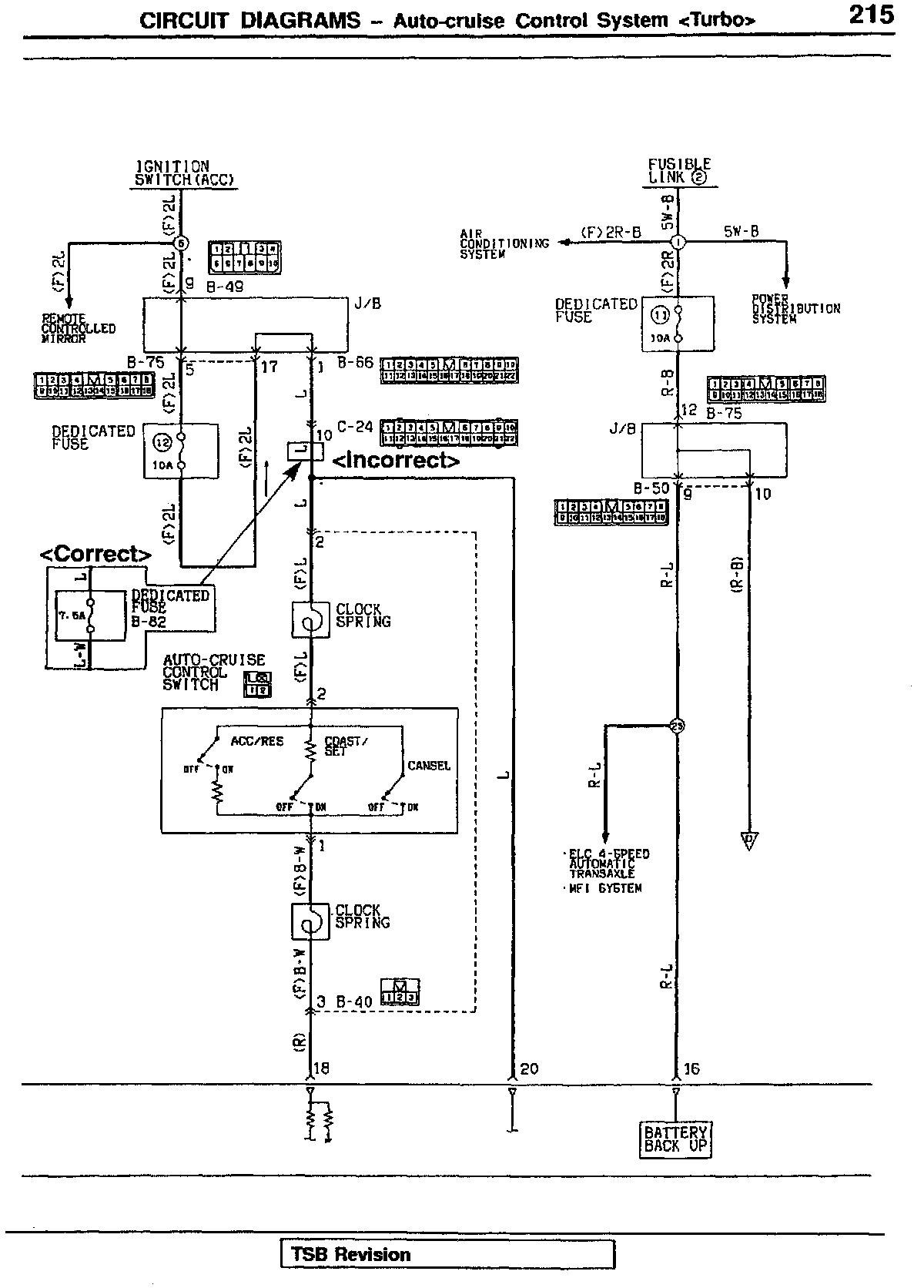

1995 Eclipse Service Manual, Volume 2, Page 215
Add the dedicated auto-cruise control system fuse as shown.
