Ignition System: Service and Repair

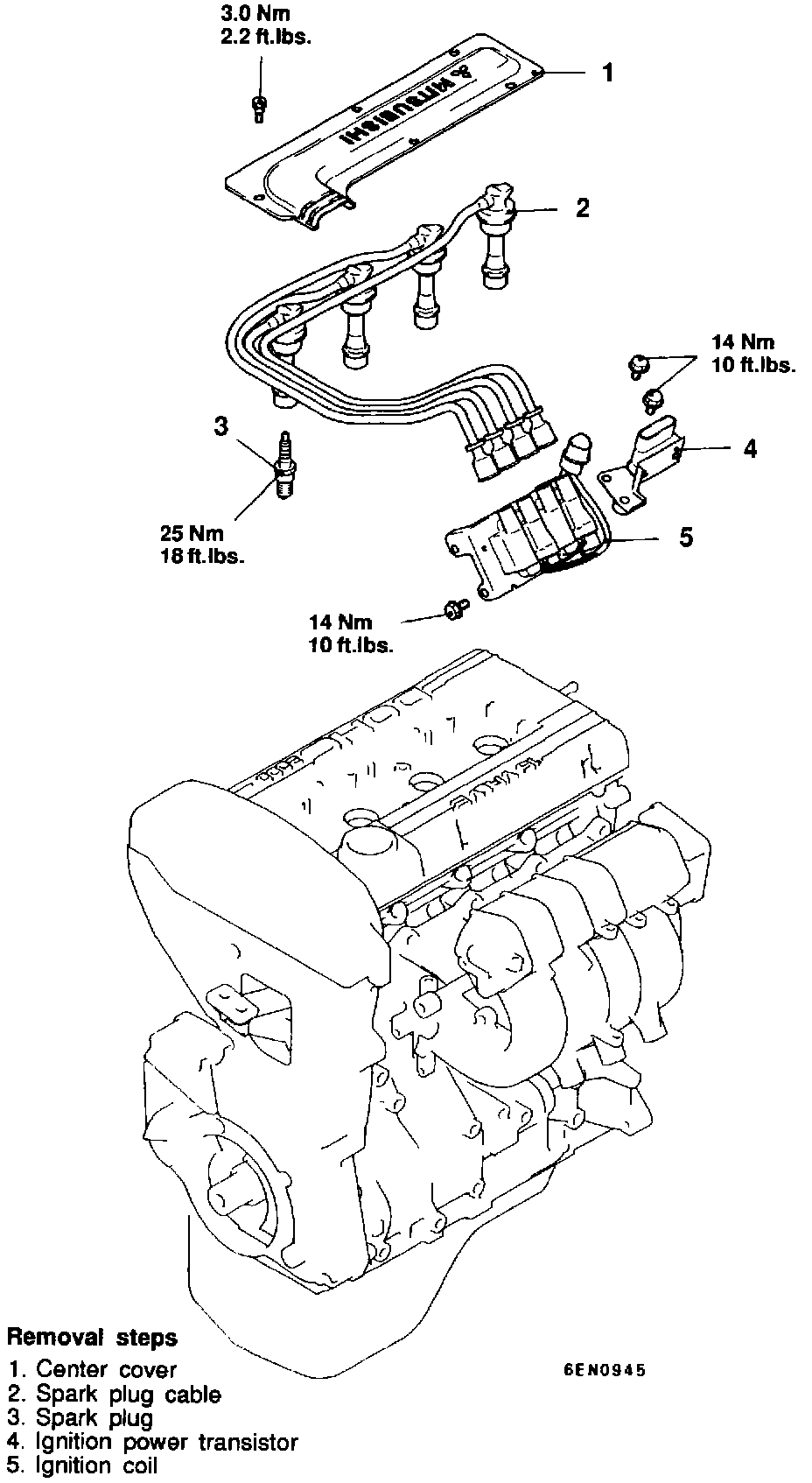

Ignition System - Removal And Installation:
REMOVE 1.
Center cover
2.
Spark plug cable
3.
Spark plug 4.
Ignition power transistor
5.
Ignition coilINSTALL 1.
Ignition coil 2.
Ignition power transistor
3.
Spark plug 4.
Spark plug cable
5.
Center cover
