Ignition Switch: Service and Repair

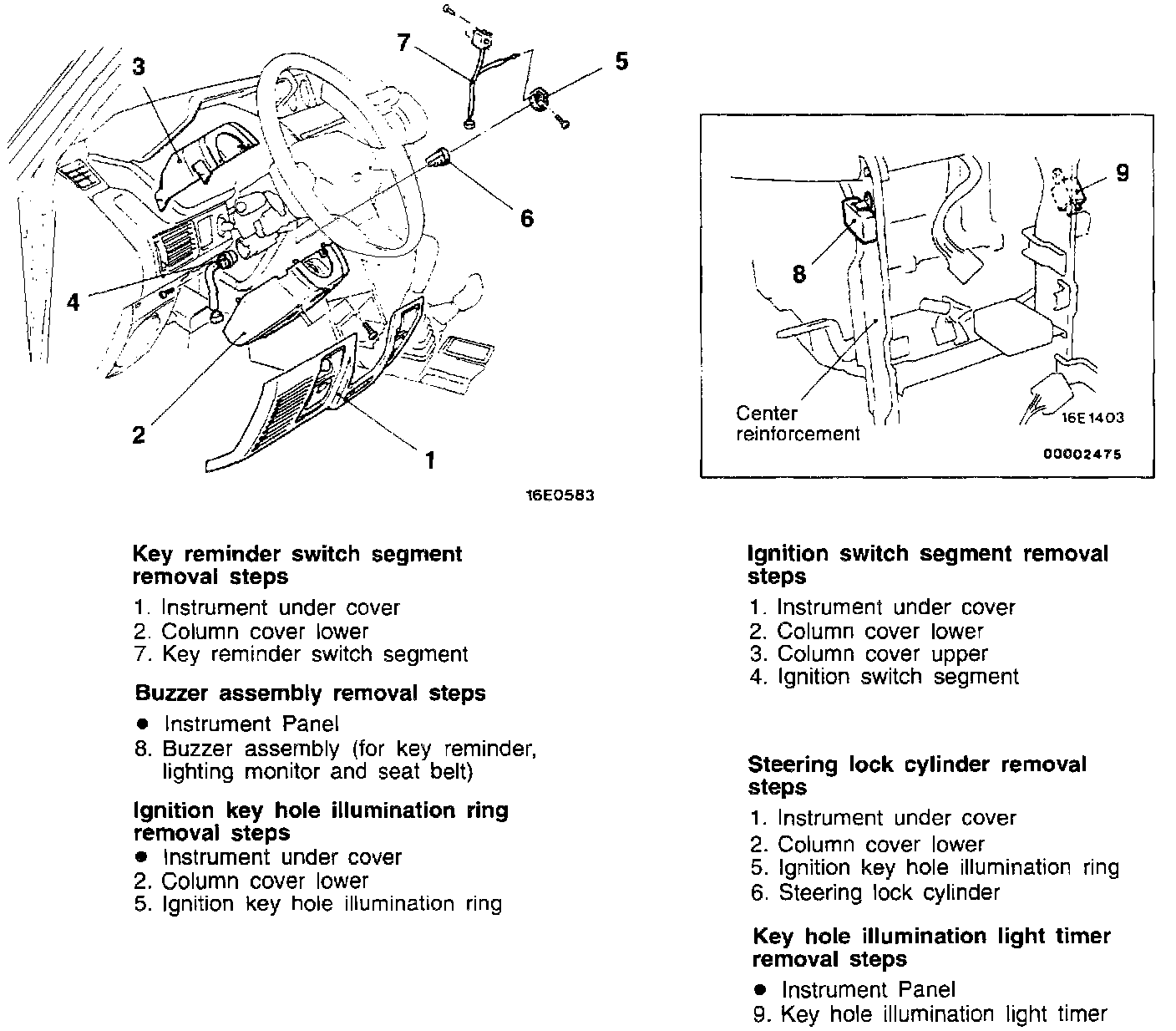

Ignition Switch - Removal And Installation:

REMOVE
Key Reminder Switch Segment
1. Instrument under cover
2. Column cover lower
7. Key reminder switch segment

Buzzer Assembly
- Instrument Panel
8. Buzzer assembly (for key reminder, lighting monitor and seat belt)

Ignition Key Hole Illumination Ring
- Instrument under cover
2. Column cover lower
5. Ignition key hole illumination ring

Ignition Switch Segment
1. Instrument under cover
2. Column cover lower
3. Column cover upper
4. Ignition switch segment

Steering Lock Cylinder
1. Instrument under cover
2. Column cover lower
5. Ignition key hole illumination ring
6. Steering lock cylinder

Key Hole Illumination Light Timer
- Instrument Panel
9. Key hole illumination light timer

INSTALL
Key Reminder Switch Segment
1. Key reminder switch segment
2. Column cover lower
7. Instrument under cover

Buzzer Assembly
- Buzzer assembly (for key reminder, lighting monitor and seat belt)
8. Instrument Panel

Ignition Key Hole Illumination Ring
- Ignition key hole illumination ring
2. Column cover lower
5. Instrument under cover

Ignition Switch Segment
1. Ignition switch segment
2. Column cover upper
3. Column cover lower
4. Instrument under cover

Steering Lock Cylinder
1. Steering lock cylinder
2. Ignition key hole illumination ring
5. Column cover lower
6. Instrument under cover

Key Hole Illumination Light Timer
- Key hole illumination light timer
9. Instrument Panel
