Rear Combination Light

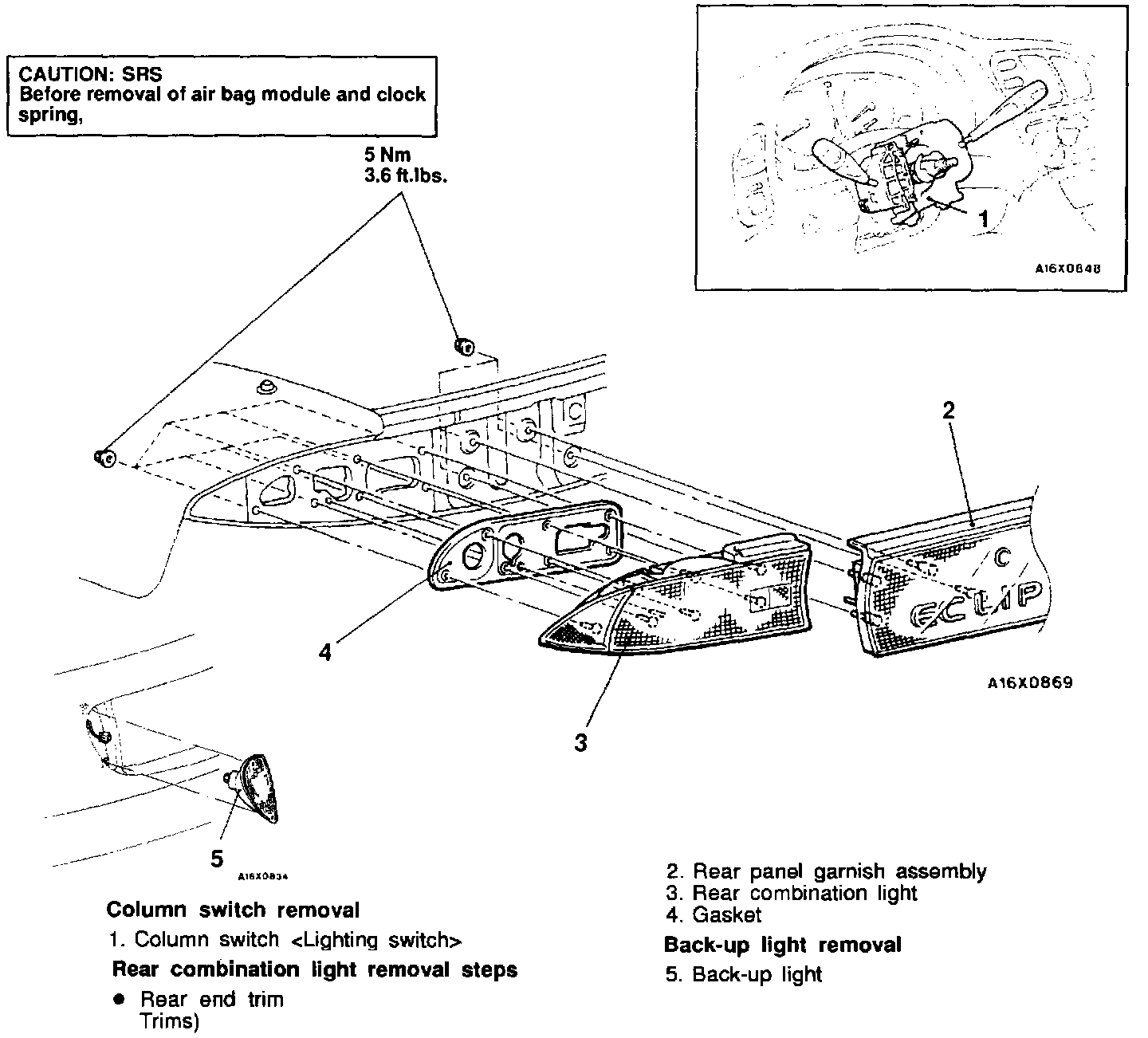

Rear Combination And Back-Up Light - Removal And Installation:






CAUTION: Before removal of air bag module and clock spring refer Service Precautions and Air Bag Module and clock spring.

REMOVE
Column Switch
1. Column switch

Rear Combination Light
- Rear end trim
2. Rear panel garnish assembly
3. Rear combination light
4. Gasket

Back-Up Light
5. Back-up light

INSTALL
Column Switch
1. Column switch

Rear Combination Light
2. Gasket
3. Rear combination light
4. Rear panel garnish assembly
- Rear end trim

Back-Up Light
5. Back-up light
