Fuel System - Service Manual Corrections

NO.: TSB-96-13-009

DATE: May, 1996

MODEL: 1996 Eclipse

SUBJECT:
FUEL SYSTEM CORRECTIONS - SERVICE MANUAL REVISION

TSB Revision TSB-96-13-009

PURPOSE
This bulletin is issued to correct fuel system pages in the 1996 Eclipse Service Manual, Vol. 1.

AFFECTED SERVICE MANUALS

Service Manual Page
1996 Eclipse, Vol. 1 13A-10

SERVICE MANUAL REVISION

Please write the TSB number in the box at the bottom of the page listed in the table to refer to the corrected page in this bulletin.

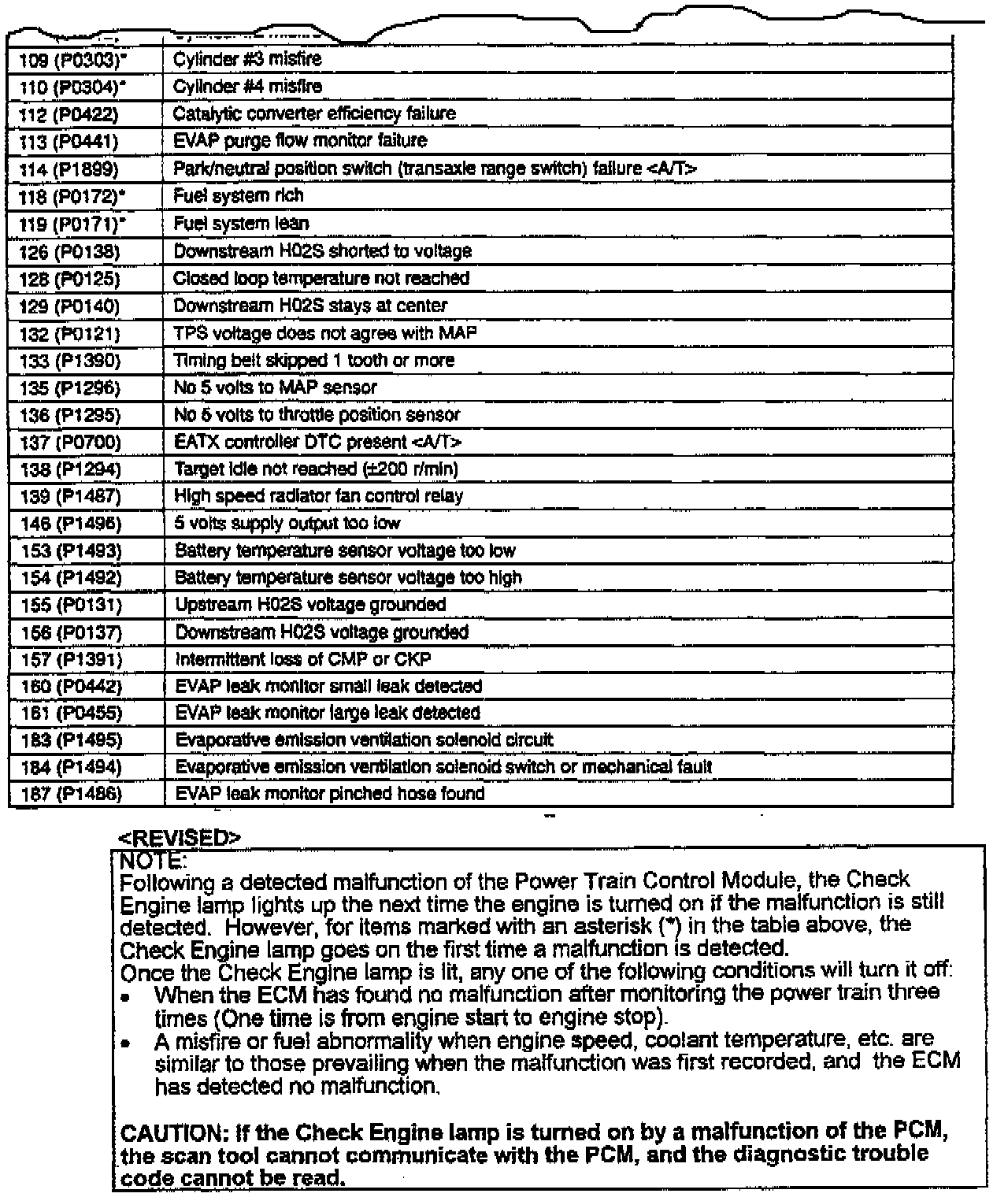

1996 Eclipse Service Manual, Vol. 1, Page 13A-10
Please revise the NOTE and CAUTION statements at the bottom of the page as shown.
