Description of On-Board Diagnostics

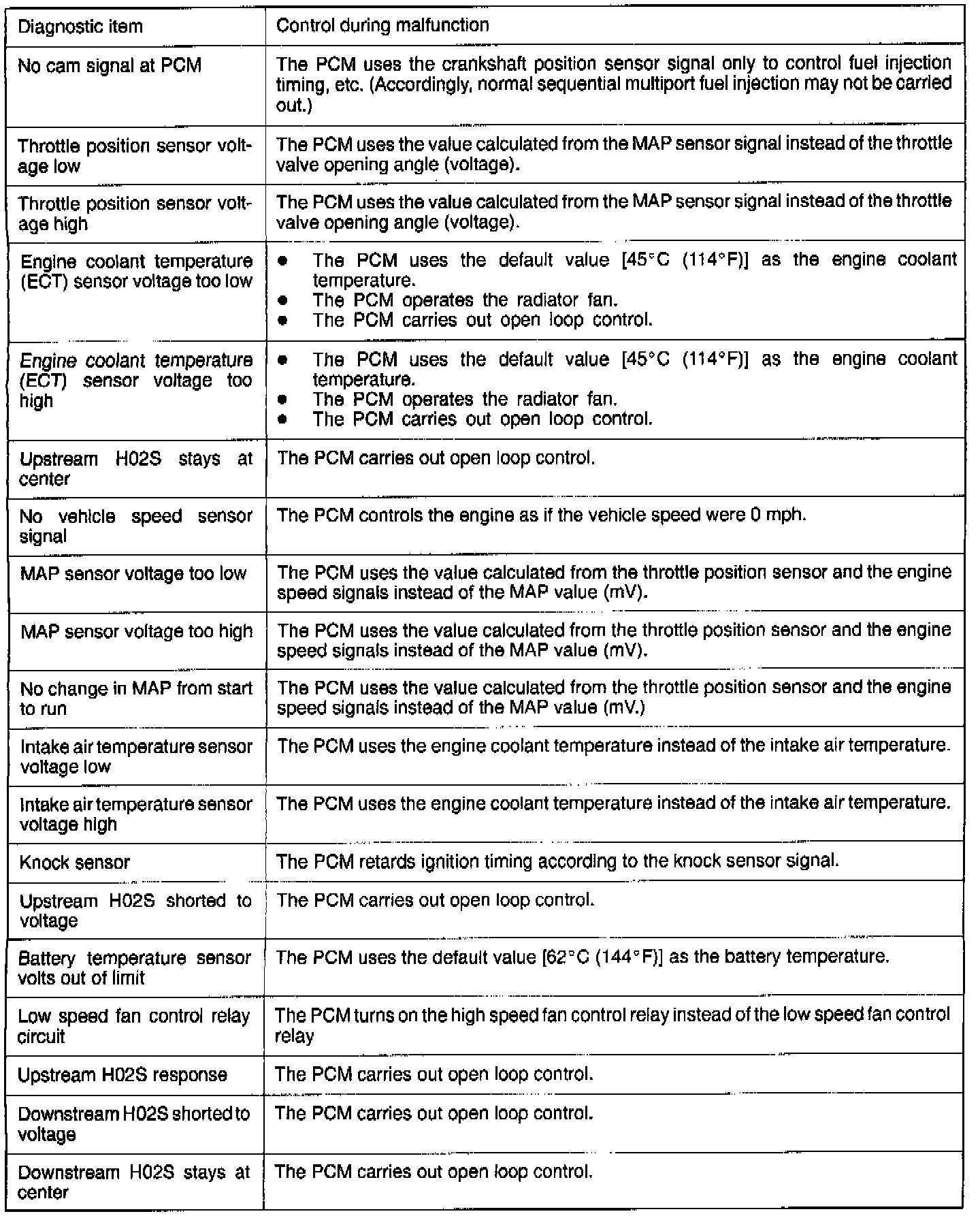

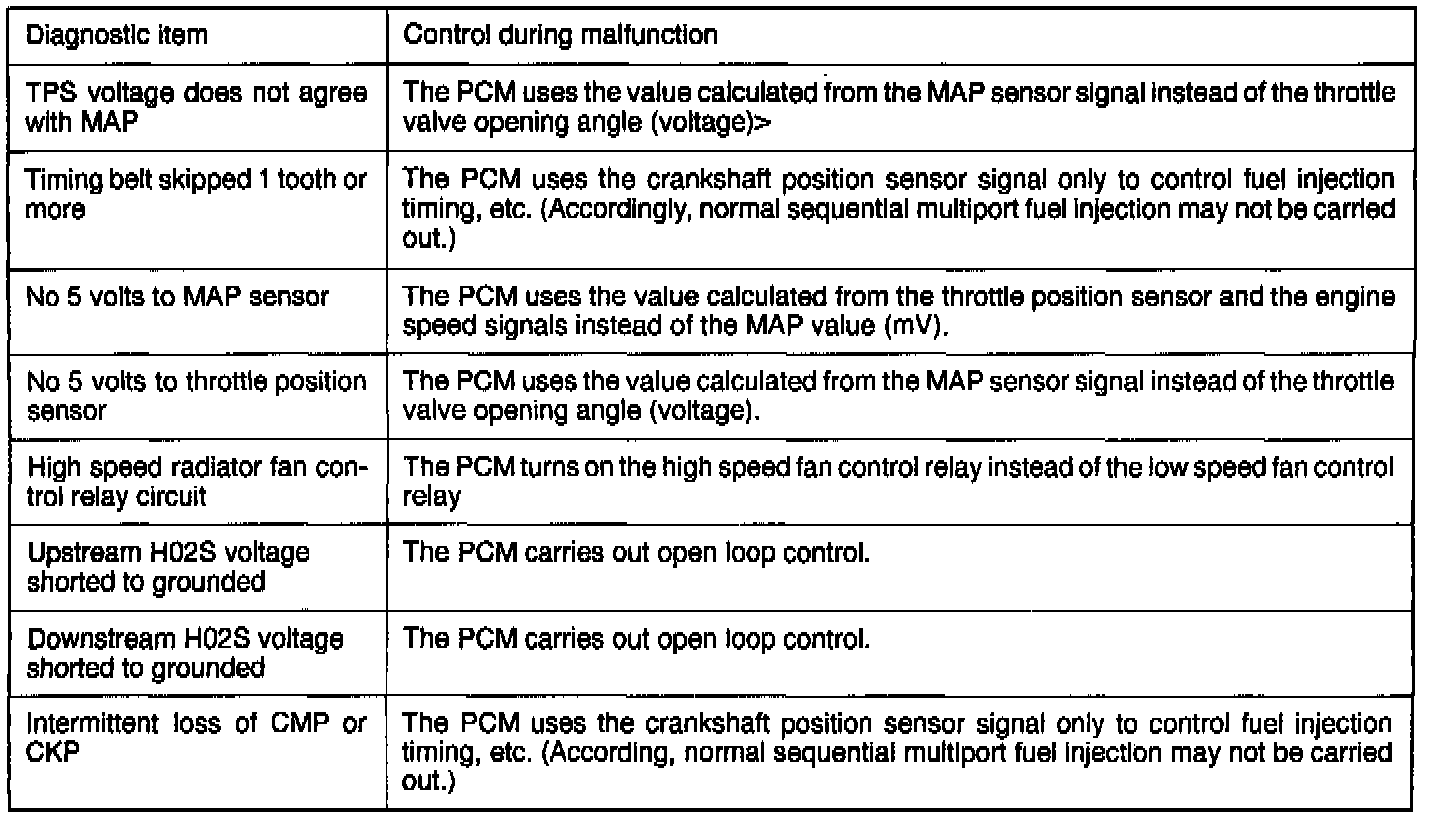

FAIL-SAFE-BACKUP FUNCTION (Limp-In Mode) TABLE When the
powertrain control module detects the following malfunction (s), the powertrain control module carries out fail safe/back-up control. In addition, the corresponding DTC number (5) can be identified by using the scan tool.
