A/T - F4AC1 Special Tools Table Revision
NO.: TSB-96-23-013DATE: August, 1996
MODEL: 1996 Eclipse
SUBJECT:
F4AC1 A/T SCAN TOOL - SERVICE MANUAL REVISION
PURPOSE
This bulletin updates the F4AC1 automatic transaxle special tools table in the 1996 Eclipse Service Manual, Volume 1. The MUT-II interface cartridge MB991544 replaces the Diagnostic trouble code check harness MB991529.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED SERVICE MANUAL

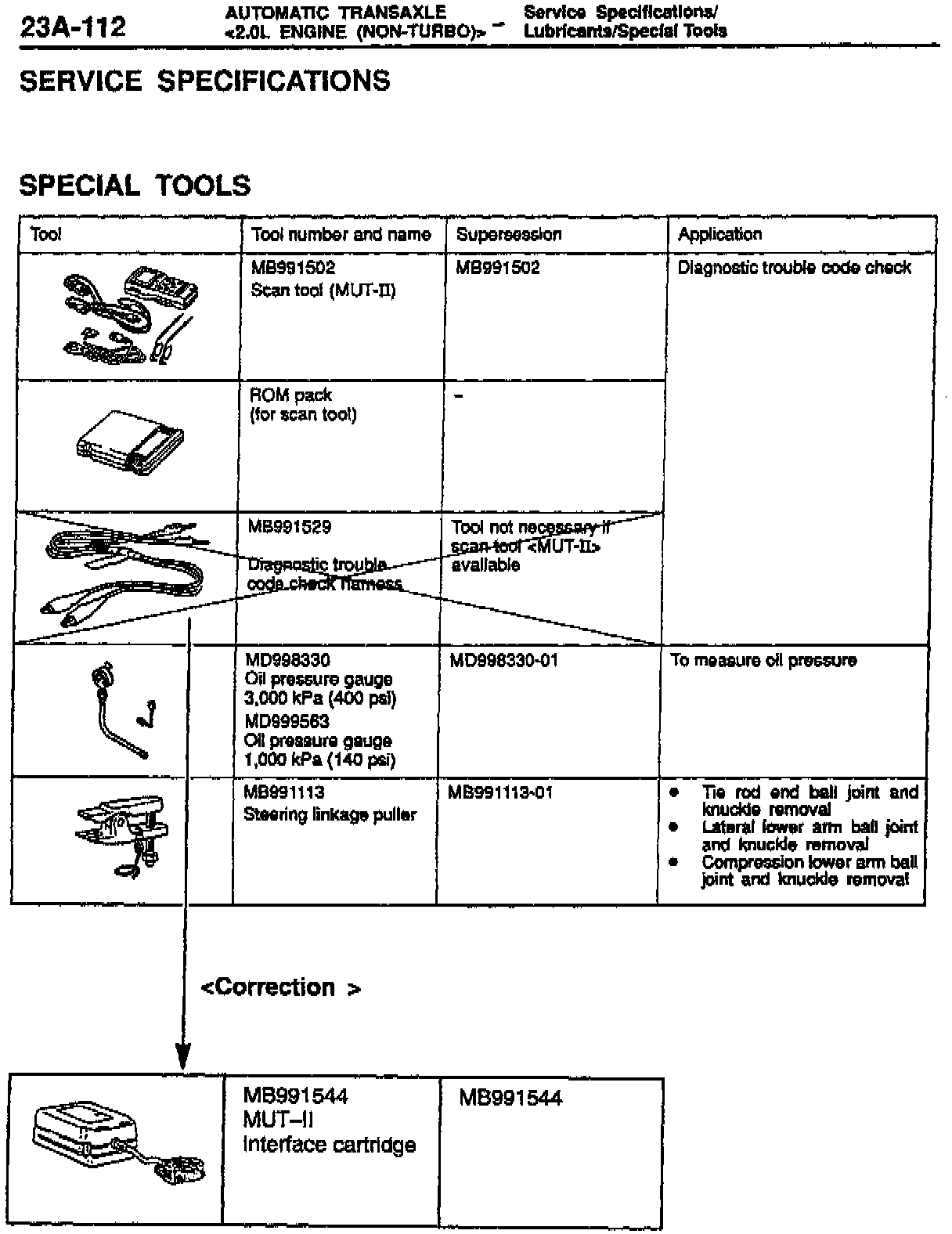

1996 Eclipse, Volume 1, page 23A-112
Service Specifications
