Generator Stator - Removal Procedure Revision

NO.: TSB-97-16-004
DATE: May, 1997
MODEL: See below

SUBJECT:
GENERATOR STATOR REMOVAL - SERVICE MANUAL REVISION

[TSB Revision TSB-97-16-004]

PURPOSE
The procedure for removing the stator from the generator are incorrectly described in the affected service manual pages. This bulletin contains the proper generator stator removal procedure for affected vehicles.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
1992-97 Montero
1995-97 Eclipse and Eclipse Spyder
1994-97 Galant

AFFECTED SERVICE MANUALS
1992-95 Montero, Volume 1, page 16-15
1996 Montero, Volume 1, page 16-15
1997 Montero, Volume 1, page 16-15
1995 Eclipse, Volume 1, page 16-28
1996 Eclipse/Eclipse Spyder, Volume 1, page 16-28
1996 Eclipse/Eclipse Spyder, Volume 1, page 16-24

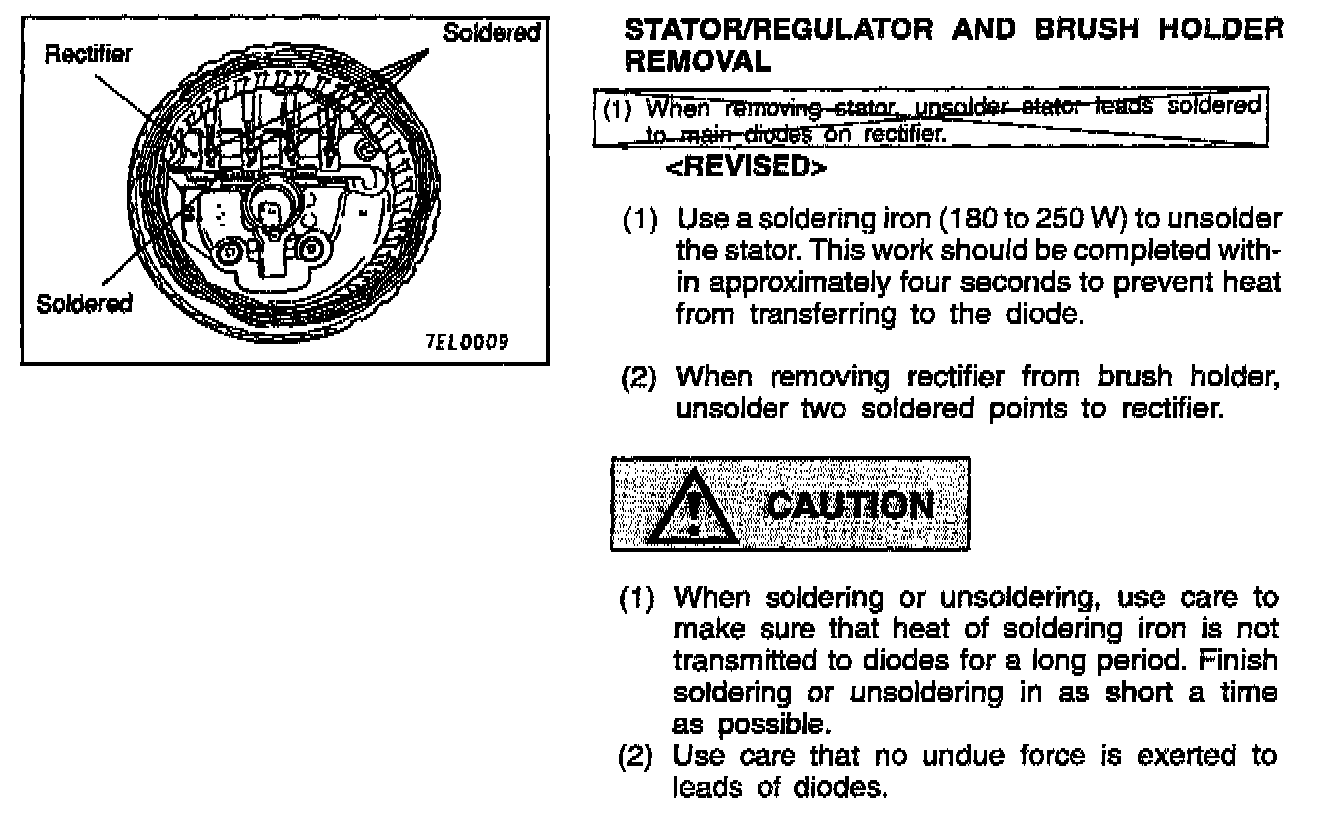

The generator stator removal procedure applies to all affected service manual pages.
