Heater Core: Service and Repair

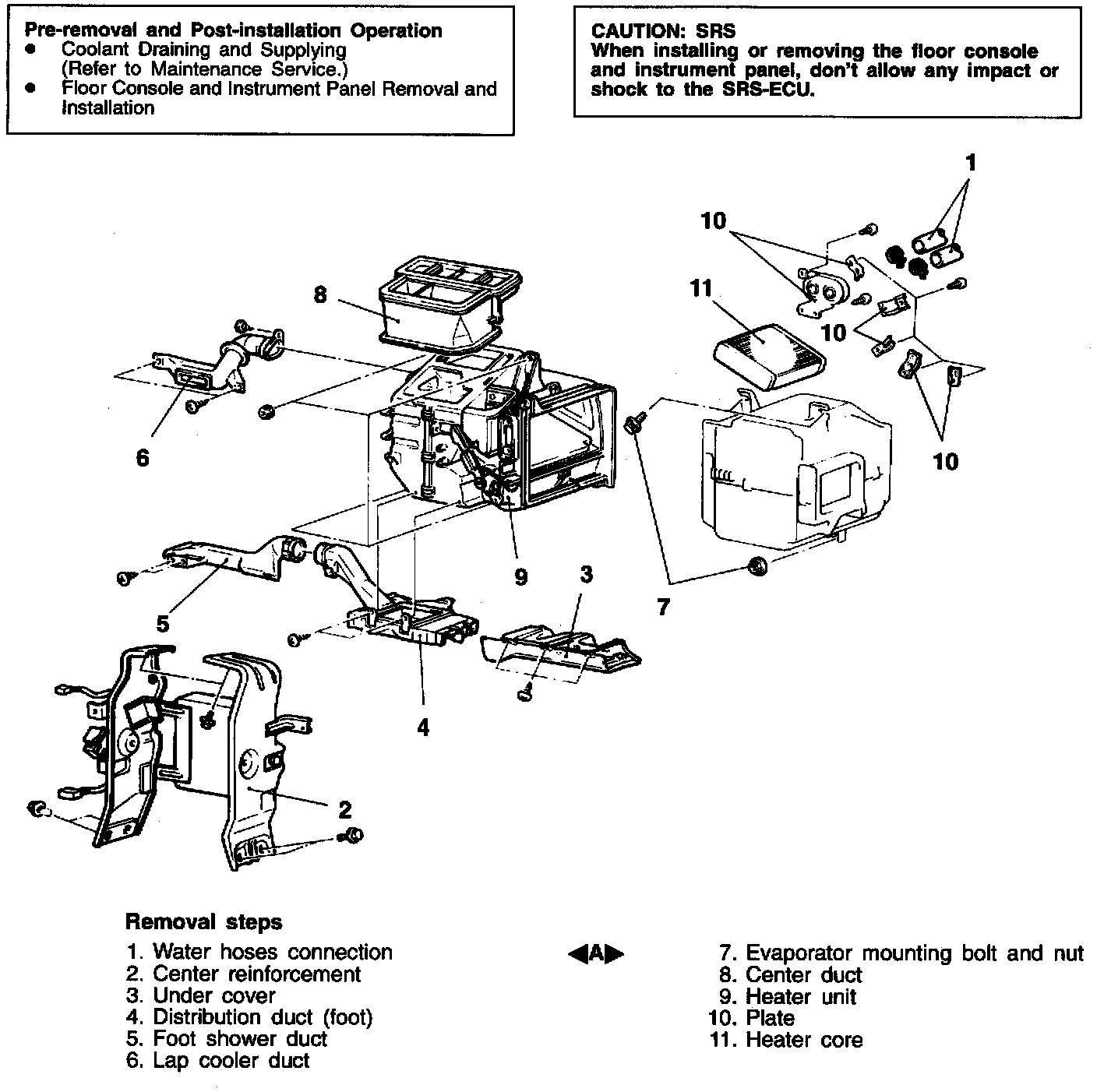

REMOVAL AND INSTALLATIONREMOVAL SERVICE POINT (A) EVAPORATOR MOUNTING BOLT REMOVAL (Vehicles with manual air conditioning) NOTE: In order to prevent bolts from falling into the blower assembly, set the air-selection damper to the position that permits outside air introduction.
INSPECTION -
Check the operation of dampers and link mechanism.
-
Check the
heater core for clogging and water leakage.
